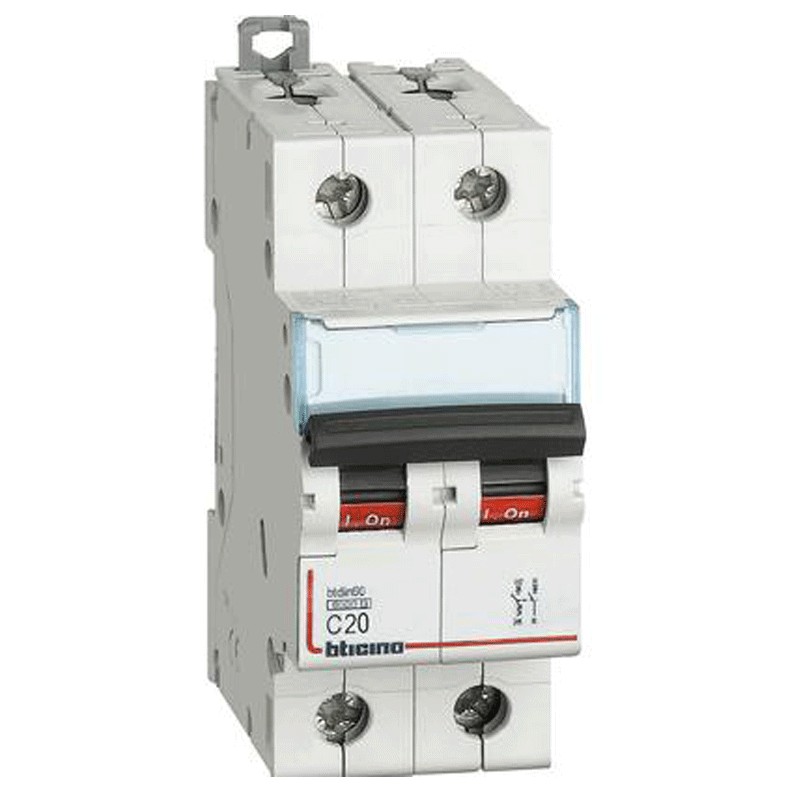

Bticino Circuit breaker 1+N 6 KA 20A FN81NC20
BTI FN81NC20
8005543474501
Bticino thermal-magnetic circuit breaker, 2 modules, DIN connection (universal connection for any switchboard on the market) poles 1+N, 20 amperes, breaking capacity 6kA, voltage 230 Vac, curve C.
€44.62
Items Available: 15
: 2
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 230 Vac
- Current In 20A
- Interrupting capacity Icn 6kA
- Tripping curve C
- 1 module
- Poles 1+N
- Degree of protection IP20
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- Amps: 20A
- Circuit Protections: Circuit breakers
