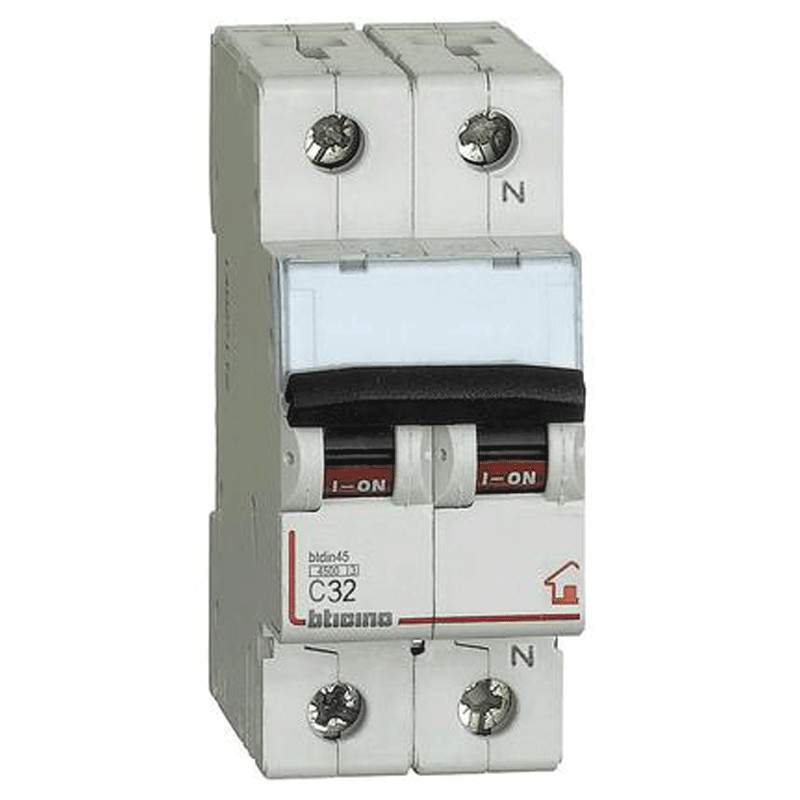

Bticino Circuit Breaker 1+N 4.5 KA 32A F810N/32
BTI FC810NC32
8005543534663
Bticino circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 32 amperes, breaking capacity 4.5 kA, voltage 230 Vac, curve C.
€8.11
Items Available: 243
: 30
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 230 Vac
- Current In 32A
- Interrupting capacity Icn 4.5kA
- Tripping curve C
- 2 modules
- Poles 1P+N
- Protection class IP20
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
Quello che cercavo e l'ho trovato da voi facilmente
Prodotto originale come dichiarato ad un prezzo che non ho trovato sul mercato
Tutto perfetto, prodotto ottimo come da aspettativa. spedizione perfetta e rapida
prezzo competitivo, installazione semplice
ottimo prodotto consigliato anche come prezzo
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- Amps: 32A
- Circuit Protections: Circuit breakers
