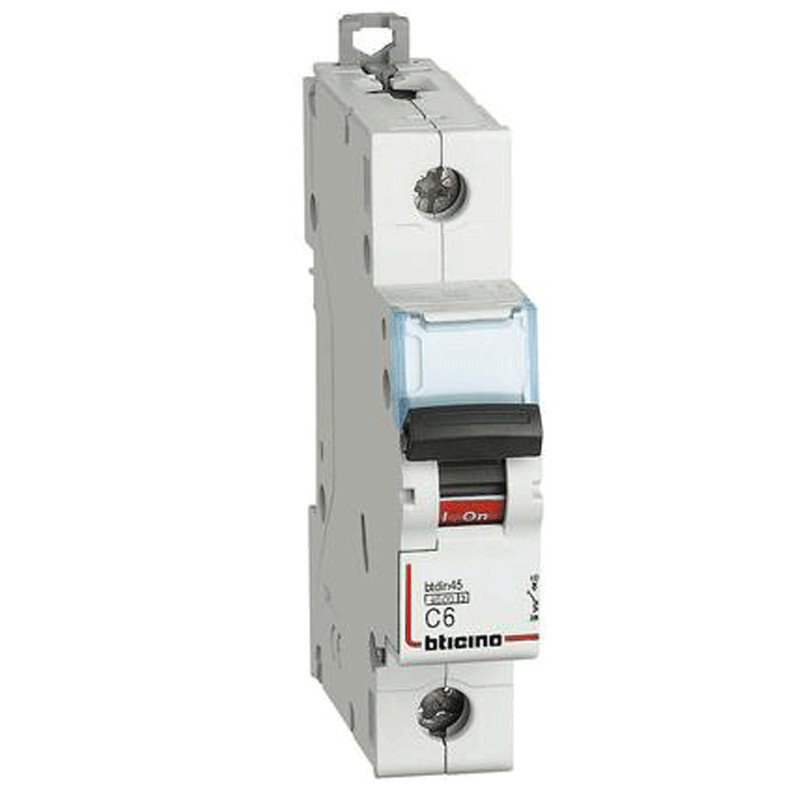

Bticino Circuit breaker 1 pole 4.5 KA 6A FA81C6
BTI FA81C6
8005543471586
Bticino thermal-magnetic circuit breaker, 1 module, DIN connection, 1P pole, 6 amperes, breaking capacity 4.5 kA, voltage 230/400 Vac, curve C.
€14.22
Items Available: 4
: 2
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 230/400 Vac
- Current In 6A
- Interrupting capacity Icn 4,5kA
- Tripping curve C
- 1 module
- 1P pole
- Degree of protection IP20
- Height 83 mm
- Width 17.7 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 1
- Poles: 1P
- Curve: C
- Breaking capacity: 4.5KA
- Amps: 6A
- Circuit Protections: Circuit breakers
