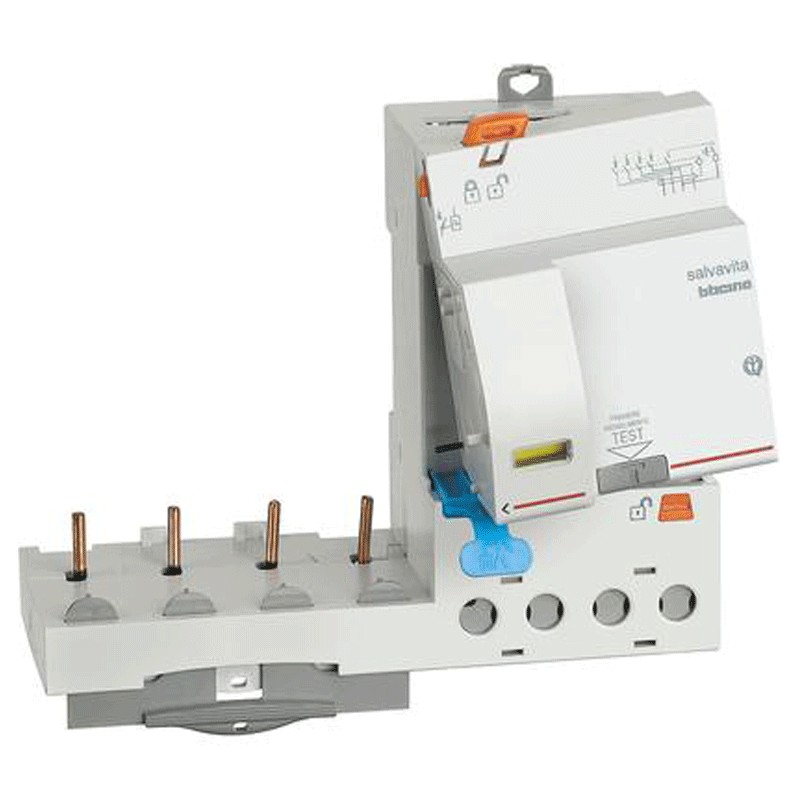

Bticino 63A 4-pole 30mA differential circuit breaker block type F G43F63

Bticino
Bticino
BTI G43F63 8005543614952

Differential block (circuit breaker) Bticino, with the following characteristics:

  • 3 modules
  • 4 poles
  • 63 amperes
  • Differential current Idn 30mA
  • Voltage 400Vac
  • Differential type F
Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino 63A 4-pole 30mA differential circuit breaker block type F G43F63
€240.80
€240.80

€240.80
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€240.80

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.

It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.

TheType F circuit breakers introduced by the recent product standard CEI EN 62423, guarantee effective protection against indirect contacts in the presence of loads equipped with single-phase frequency converters.

From a technical and performance point of view, they are positioned between type A and B residual current circuit breakers.

The residual current circuit breakerstype F are specially developed for protection against indirect contacts, when using appliances equipped with single-phase inverters such as, for example, heat pumps and washing machines. In the event of a ground fault in the inverter, they produce differential fault currents at varying frequencies, which AC and A type earth leakage circuit breakers cannot detect.

Features:

  • Bticino Series
  • Voltage 400Vac
  • Current In 63A
  • Differential current Idn 30mA
  • Differential type F
  • 3 modules
  • 4 poles
  • Degree of protection IP20
  • Height 83mm
  • Width 53,4 mm
  • Depth 76 mm
  • Maximum cable section 25/35mmq

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
3
Poles:
4P
RCD Type:
F
Differential current :
0.03A
Amps:
63A
Circuit Protections:
Earth Leakage add-on Blocks
