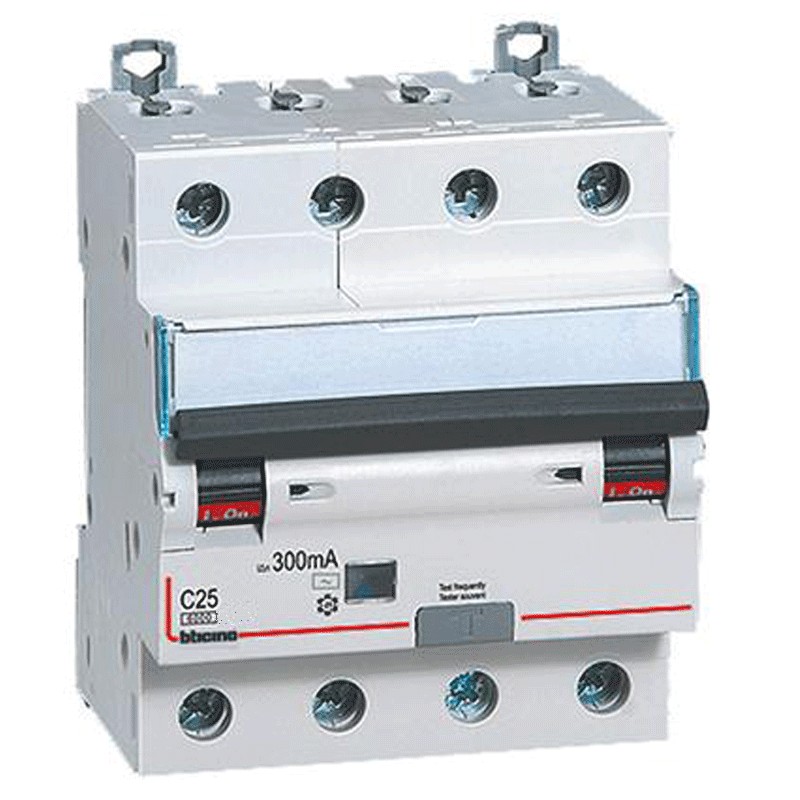

Bticino Residual Current Operated Circuit Breaker 4P 25A 300mA AC type 6kA 4 modules GN8844AC25

Bticino
Bticino
BTI GN8844AC25 8005543459003

BTicino Residual Current Operated Circuit Breaker is an essential safety device for residential and industrial electrical systems. It integrates three protections in one module: magnetic (short circuits), thermal (overloads) and differential (current leakage), with the following characteristics:

  • Rated current: 25 amps

  • Number of poles: 4P

  • Operating voltage: 400V

  • Breaking capacity: 6 kA

  • Differential current: 300 mA

  • Tripping curve: C

  • Differential type: AC

  • Number of modules: 4

  • Degree of protection: IP20

  • Universal DIN mounting: Compatible with any standard switchboard

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Residual Current Operated Circuit Breaker 4P 25A 300mA AC type 6kA 4 modules GN8844AC25
€246.45
€246.45

€246.45
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€246.45

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Complete Protection: Magnetic, Thermal and Differential

This BTicino RCBO combines three protections in one device:

  • Magnetic protection against short circuits, preventing damage to the system and fire
  • Thermal protection against electrical power overloads (e.g., multiple appliances turned on)
  • Differential protection, safeguarding people against current leakage

BTicino RCBO: Safe, Reliable and Versatile

Reliability and Safety in Every System

The circuit breaker complies with CEI EN 61009-1, ensuring high safety. The IP20 rating ensures protection against accidental contact with live parts, making it ideal for installations in domestic and industrial environments.

Easy Installation and Universal Compatibility

Thanks to DIN rail mounting (4 modules), the device integrates seamlessly into any standard switchboard, ensuring quick installation.

The Residual Current Operated Circuit Breaker type AC, is insured for suddenly applied or slowly increasing sine-sine differential alternating currents.

Bticino Residual Current Operated Circuit Breaker Technical Characteristics

Feature Value
Rated current 25A
Number of poles 4P
Differential current 300mA
Breaking capacity 6kA
Rated voltage 400 Vac
Type of differential AC
Tripping curve C
Mounting Universal DIN (4 modules)
Degree of protection IP20
Maximum cable cross-section 25/35 mm²

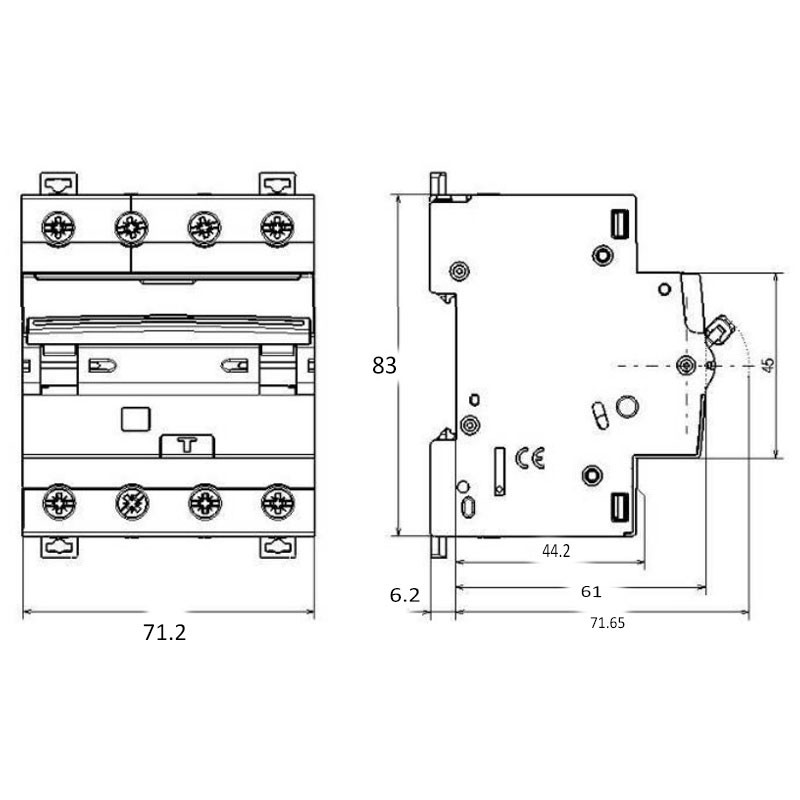

Height 83 mm
Width 71.2 mm
Depth 76 mm

There are no reviews

Data sheet

Modules:
4
Poles:
4P
Curve:
C
Breaking capacity:
6KA
RCD Type:
AC
Differential current :
0.3A
Amps:
25A
Circuit Protections:
RCBO
