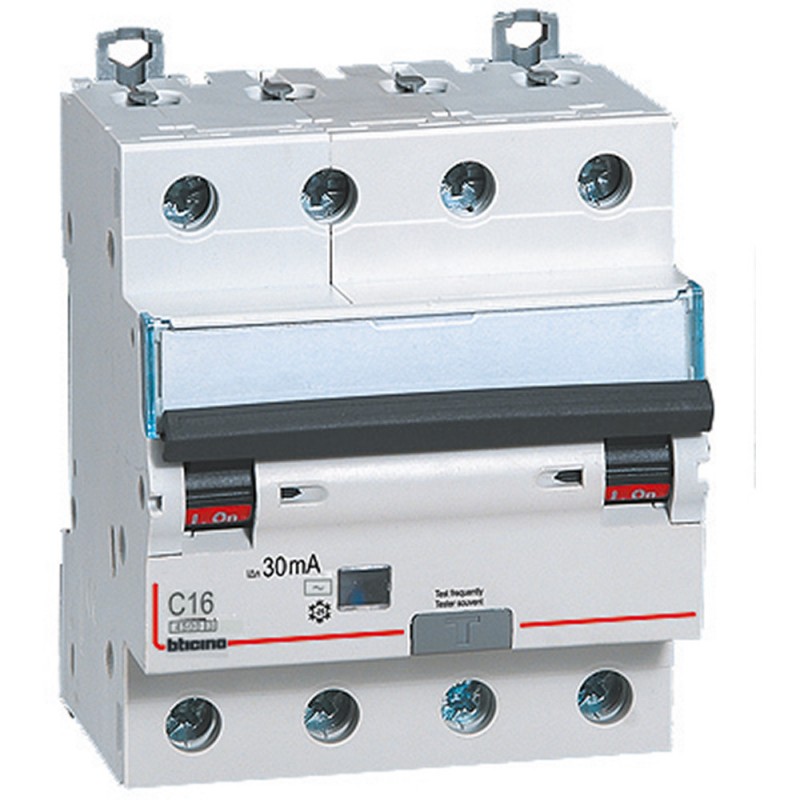

Bticino 4P 16A 30mA Residual current operated circuit breaker AC type 4.5kA 4 modules GA8843AC16

Bticino
Bticino
BTI GA8843AC16 8005543458495

BTicino Residual current operated Circuit Breaker is an essential safety device for residential and industrial electrical systems. It integrates three protections in one module: magnetic (short circuits), thermal (overloads) and differential (current leakage), with the following characteristics:

  • Rated current: 16 amps

  • Number of poles: 4P

  • Operating voltage: 230V AC

  • Breaking capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: AC

  • Number of modules: 4

  • Degree of protection: IP20

  • Universal DIN mounting: Compatible with any standard switchboard

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino 4P 16A 30mA Residual current operated circuit breaker AC type 4.5kA 4 modules GA8843AC16
€264.95
€264.95

€264.95
Tax included
Calculate shipping cost
Items Available: 36
Further availability of the manufacturer
€264.95

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Complete Protection: Magnetic, Thermal and Differential

This BTicino Residual current operated circuit breaker combines three protections in one device:

  • Magnetic protection against short circuits, preventing damage to the system and fire
  • Thermal protection against electrical power overloads (e.g., multiple appliances turned on)
  • Differential protection, safeguarding people against current leakage

BTicino Residual current operated Circuit Breaker: Safe, Reliable and Versatile

Reliability and Safety in Every System

The circuit breaker complies with CEI EN 61009-1, ensuring high safety. The IP20 rating ensures protection against accidental contact with live parts, making it ideal for installations in domestic and industrial environments.

Easy Installation and Universal Compatibility

Thanks to DIN-rail mounting (4 modules), the device integrates seamlessly into any standard switchboard, ensuring quick installation.

The AC-type RCBO, is insured for suddenly applied or slowly increasing sine differential alternating currents.

Technical Characteristics


Feature Value
Rated current 16A
Number of poles 4P
Differential current 30 mA
Breaking capacity 4.5 kA
Rated voltage 230 Vac
Type of differential AC
Tripping curve C
Mounting Universal DIN (4 modules)
Degree of protection IP20
Maximum cable cross-section 25/35 sq. mm

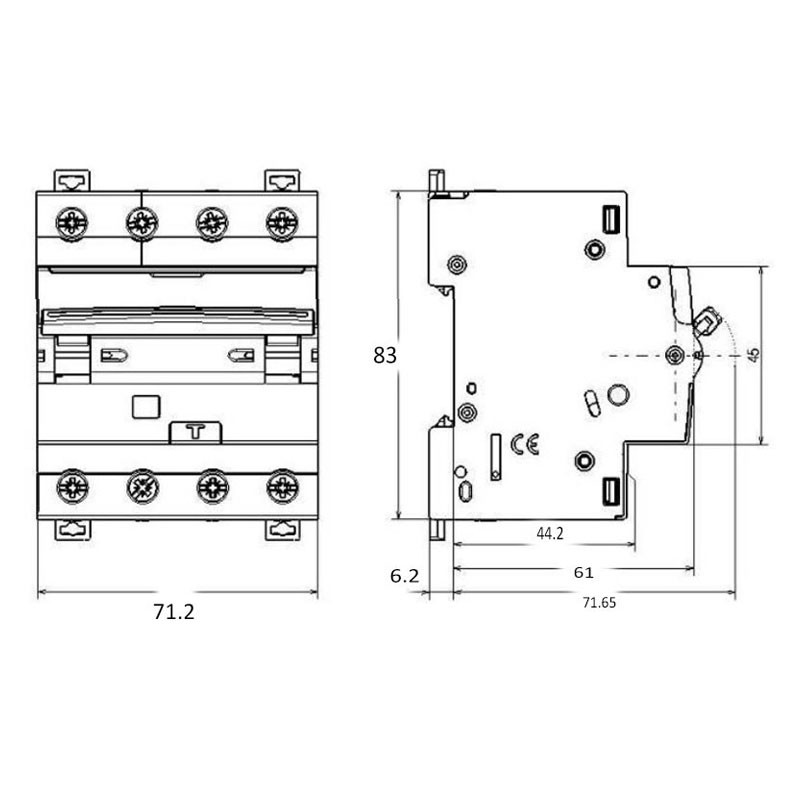

Height 83 mm
Width 71.2 mm
Depth 76 mm

materiale professionale con prezzi molto competitivi

Read all reviews

Data sheet

Modules:
4
Poles:
4P
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
AC
Differential current :
0.03A
Amps:
16A
Circuit Protections:
RCBO
