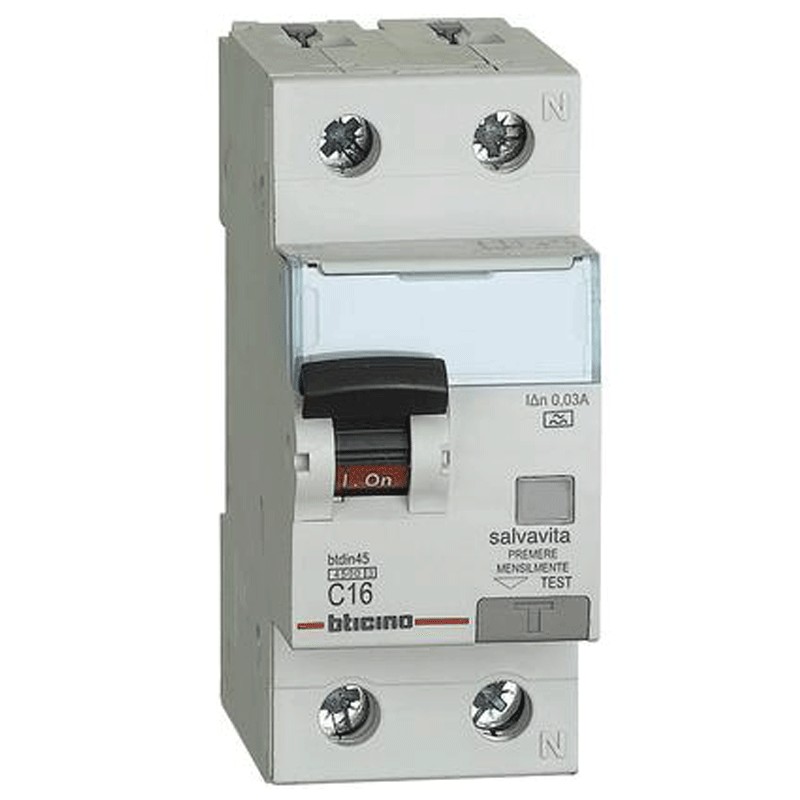

Bticino 1P+N 16A 30mA Residual Current Operated Circuit Breaker type A 4.5kA 2 modules

Bticino
Bticino
BTI GA8813A16 8005543458402

Bticino BTDIN Residual Current Operated Circuit Breaker, provides protection against overcurrents and leakage, ensuring safety and efficiency in electrical circuits. Ideal for civil and industrial installations, it offers reliable protection of people and equipment, with the following features:

  • Rated current: 16 amps

  • Number of poles: 1P+N

  • Operating voltage: 230V

  • Breaking capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: A

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino 1P+N 16A 30mA Residual Current Operated Circuit Breaker type A 4.5kA 2 modules
€106.89
€106.89

€106.89
Tax included
Calculate shipping cost
Items Available: 79
Further availability of the manufacturer
€106.89

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Comprehensive Protection of the Bticino Residual Current Operated Circuit Breaker

The residual current operated circuit breaker integrates three protection systems:

  • Magnetic protection against short circuits, preventing damage to the system and the risk of fire
  • Thermal protection that intervenes in case of overload, preventing damage to connected devices
  • Differential protection (Lifesaver) to detect current leakage and protect people from electrocution

BTicino RCBO: Reliability, Compliance and C-Curve Versatile

Reliability and Regulatory Compliance

Complies with CEI EN 61009-1, ensuring a high level of safety for civil and tertiary electrical installations. Its breaking capacity of 4.5kA makes it suitable for handling any overloads without compromising the operation of the system.

C Curve for Versatile Applications

Trip Curve C is designed to protect circuits with mixed loads, such as lighting and small appliances, ensuring rapid response to overloads and short circuits.

Residual Current Operated Circuit Breaker: Type A and Compact Installation

Type A: Increased Sensitivity to Differential Currents.

Type A circuit breaker detects both alternating sine and pulsating unidirectional currents, taking immediate action in the event of a leakage, either sudden or gradual.

Simple Installation and Compact Design

Thanks to its 2-module format, this switch integrates easily into standard electrical panels. It can be connected with cables up to 35 sq. mm, ensuring a safe and stable installation.

Bticino RCBO Technical Specifications

Electrical Specifications

Feature Value
Rated current 16A
Number of poles 1P+N
Voltage 230V AC
Differential current 30 mA
Breaking capacity 4.5 kA
Tripping curve C
Type of differential A
Number of modules 2

Protection and Installation

Feature Value
Degree of protection IP20
Maximum cable cross section 25/35 mm²

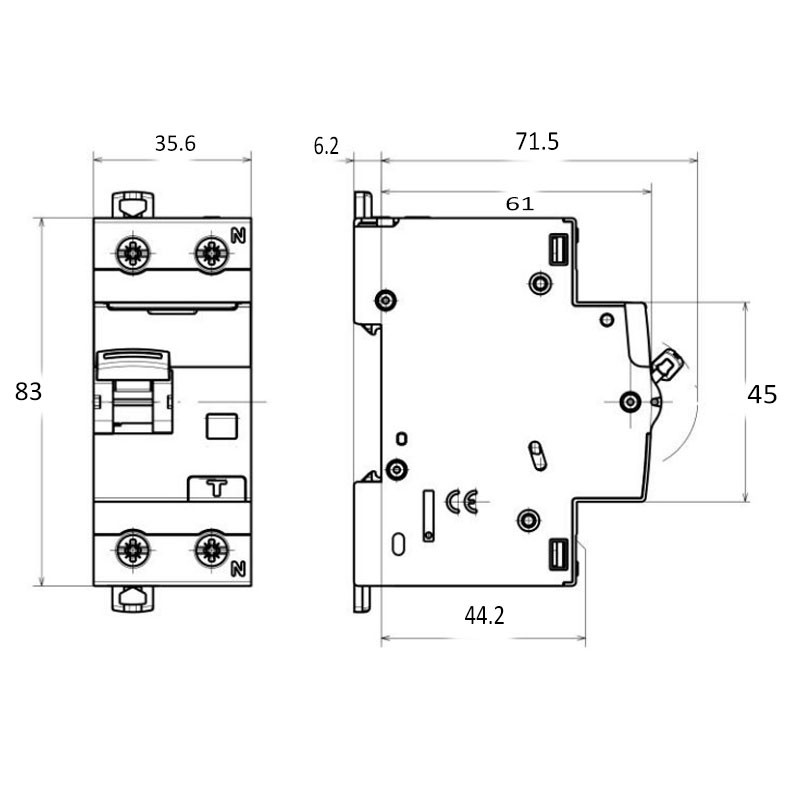

Dimensions

Feature Value
Height 83 mm
Width 35.6 mm
Depth 76 mm

Sempre qualità ottima della marca mai avuto problemi

Read all reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
A
Differential current :
0.03A
Amps:
16A
Circuit Protections:
RCBO
