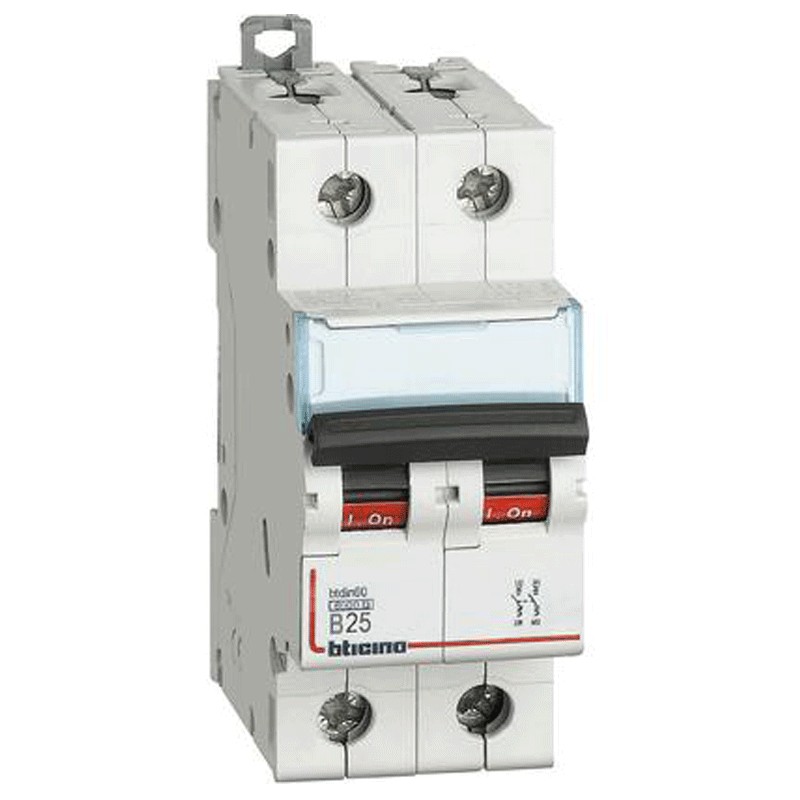

Bticino circuit breaker 2P 25A curve B 6kA FN82B25
BTI FN82B25
8005543475645
Bticino circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), 2P poles, 25 amperes, breaking capacity 6kA, voltage 400 Vac, curve B.
€61.75
Items Available: 2
: 1
Frequently bought together
Curve B, trip threshold of 3 to 5 times In, for application of circuits with low inrush currents. Protection of cables with considerable length.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 400 Vac
- Current In 25A
- Interrupting capacity Icn 6kA
- Tripping curve B
- 2 modules
- Poles 2P
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable cross-section 25/35mmq
- Degree of protection IP20
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: B
- Breaking capacity: 6KA
- Amps: 25A
- Circuit Protections: Circuit breakers
