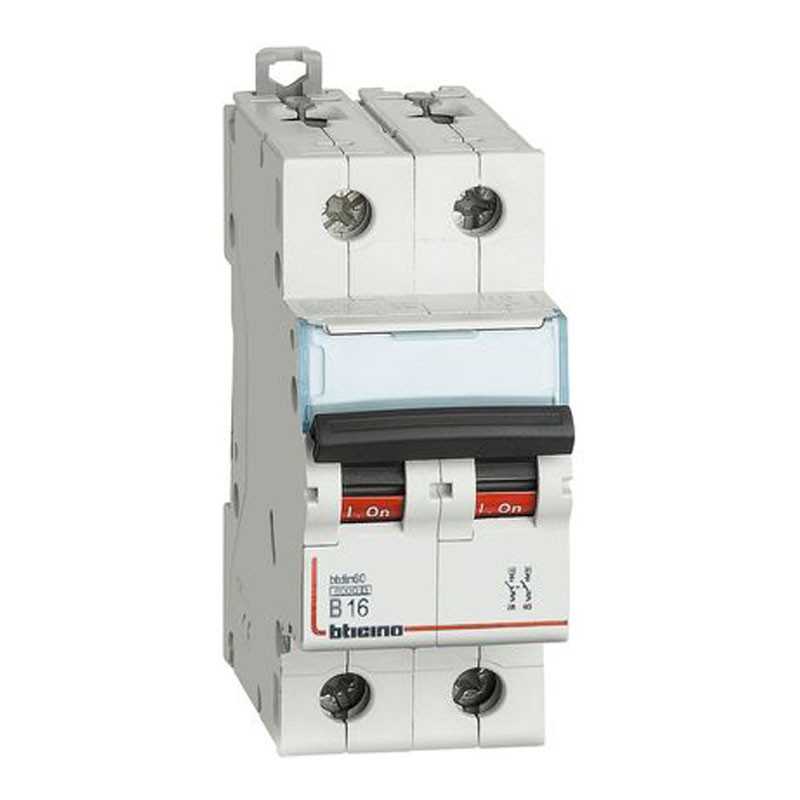

Bticino Circuit Breaker 2P 16A 6kA 400Vac Curve B 2M FN82B16

Bticino
Bticino
BTI FN82B16 8005543475607

BTicino Circuit Breaker is designed to protect electrical systems from overcurrents and short circuits, automatically interrupting the circuit in case of anomalies, synonymous with reliability and compatibility with major civil and industrial switchboards, with the following features:

  • Rated current: 16 amps

  • Number of poles: 2P

  • Operating voltage: 400V AC

  • Interrupting capacity: 6 kA

  • Tripping curve: B

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Circuit Breaker 2P 16A 6kA 400Vac Curve B 2M FN82B16
€44.08
€44.08

€44.08
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€44.08

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Bticino curve B circuit breaker for fast protection, compact and complying with CEI standards.

The BTicino circuit breaker is designed to protect electrical systems from overcurrents and short circuits, automatically breaking the circuit in case of anomalies. It is part of the BTdin60 series, synonymous with reliability and compatibility with major civil and industrial switchboards.

Curve B: fast protection for residential installations

The B tripping curve allows fast protection action at fault currents between 3 and 5 times the rated current, making this switch ideal for residential installations and environments with resistive loads (lighting, sockets, small appliances).

DIN-rail installation in just 2 modules

With a width of 2 modules, the device is easily installed inside standard electrical panels. Clamp connections accept cables up to 25 mm² (rigid) and 35 mm² (flexible), providing flexibility in wiring configurations.

Compact and compliant construction

The body is made of insulating and fireproof materials, complying with IEC EN 60898-1, with an IP20 degree of protection, suitable for use in indoor environments protected from dust or liquids.

Bticino Circuit Breaker Technical Specifications

Feature Value
Series BTdin60
Poles 2P (double pole)
Rated current 16A
Rated voltage 400 Vac
Tripping curve B
Breaking capacity 6kA
Number of modules 2
Degree of protection IP20
Reference standard IEC EN 60898-1
Dimensions 35.6 x 83 x 76 mm (WxHxD)
Maximum cable cross-section 25 sq mm (rigid) / 35 sq mm (flexible)

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
2P
Curve:
B
Breaking capacity:
6KA
Amps:
16A
Circuit Protections:
Circuit breakers
