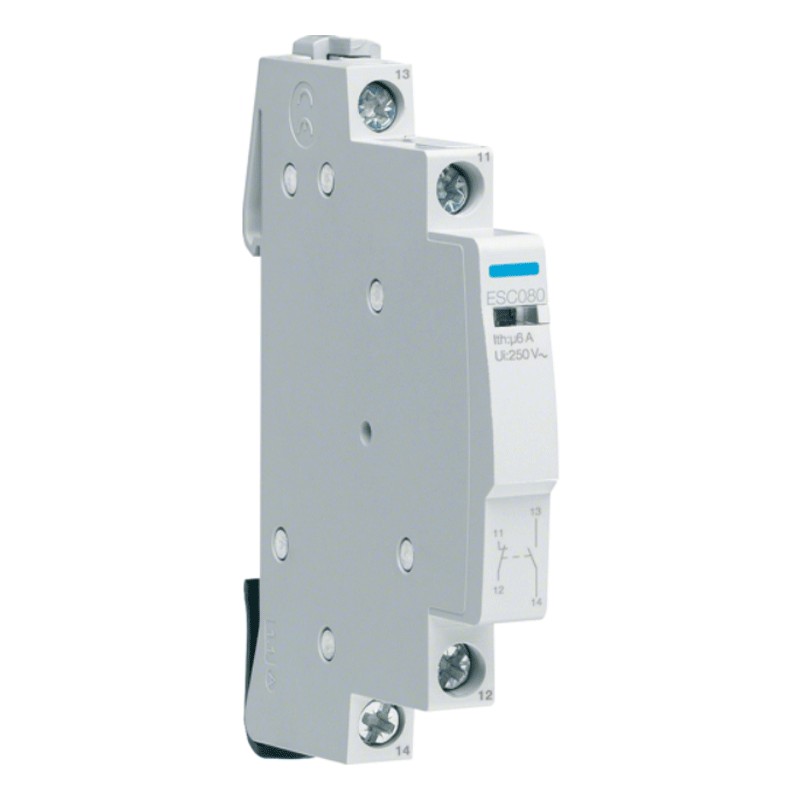

Hager Auxiliary contact 1NO+1NC 0.5M X SB-SF-ES ESC080
HAG ESC080
3250612401895
Hager auxiliary contact with the following characteristics:
- Rated operational voltage Ue 230 Vac
- Rated insulation voltage 240 Vac
- Rated impulse withstand voltage 4 kV
- Electric endurance in number of cycles 30000
- Number of mechanical operations 1000000
- Number of contacts 2
- Type of contacts 1NC+1NO
- Type of connection with screw
- Protection class insulation class II
- Operating temperature -10...50 °C
- Storage/transport temperature -40...80 °C
€25.77
Items Available: 21
Frequently bought together
Auxiliary contacts are secondary switching devices that operate in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, consent/block, signaling, interlocking.
Features:
- Hager serie
- Rated operational voltage Ue 230 Vac
- Rated insulation voltage 240 Vac
- Rated impulse withstand voltage 4 kV
- Rated operational current in AC1 6 A
- Nominal current in A 6 A
- Total power dissipation 0.1 W
- Electric endurance in number of cycles 30000
- Number of mechanical operations 1000000
- Depth 60 mm
- Height 83 mm
- Width 11 mm
- Minimum cross section with flexible cable 1 / 6mm²
- Min. cross section with rigid cable 1 / 6mm²
- Number of contacts 2
- Contact type 1NC+1NO
- Type of connection with screw
- Protection class insulation class II
- Operating temperature -10...50 °C
- Storage/transport temperature -40...80 °C
There are no reviews
Data sheet
- Type: Auxiliary Contacts
