ABB SD204/63 4P 63A 4M disconnect switch M990429
Abb switch/disconnector, with the following characteristics:
- Maximum operating voltage 462 Vac - minimum 12 Vac
- Rated impulse withstand voltage 4 kV
- Rated operating voltage 440 Vac
- Rated current In 63A
- Degree of protection IP20
- 4 modules
- 4 poles
- Rated frequency 50/60 Hz
![](https://www.elettronew.com/40545-large_default/abb-sd204-63-4p-63a-4m-disconnect-switch-m990429.jpg)

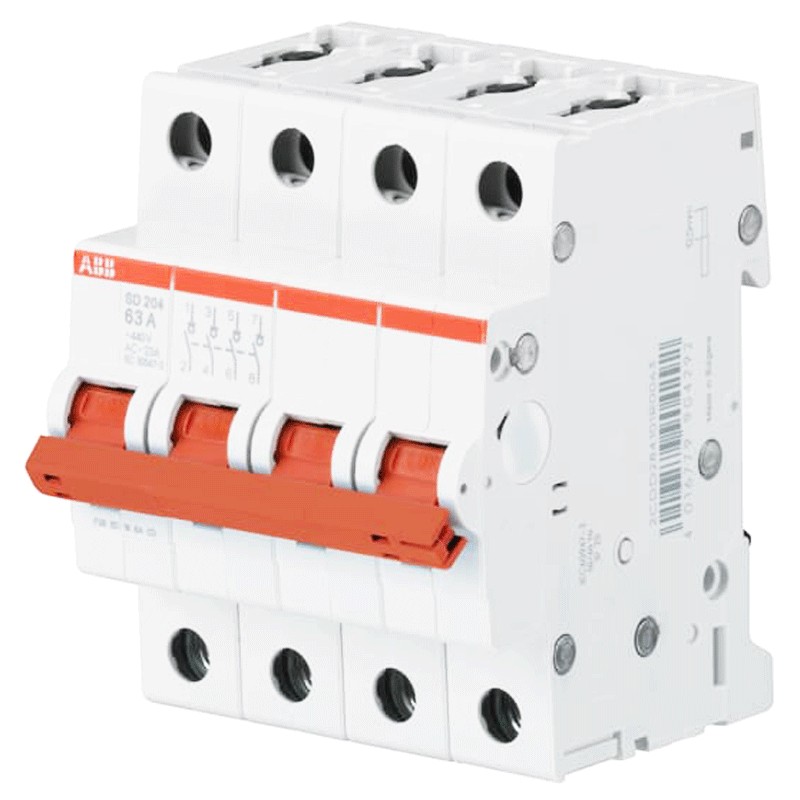

ABB SD204/63 4P 63A 4M disconnect switch M990429
Tax included
![klarna](/../img/logo-klarna-list.png)
The disconnectorotherwise called voltage isolatorThe disconnector, also called voltage switch, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environment. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
It isdesigned for the disconnection of power lines according to CEI EN 60947-3, allowing the maintenance of devices connected downstream in safety, and for the control under load, also has control lever leadable in both positions.
Features:
- Abb series
- Maximum operating voltage 462 Vac - minimum 12 Vac
- Rated impulse withstand voltage 4 kV
- Rated operating voltage 440 Vac
- Rated current In 63A
- Degree of protection IP20
- 4 modules
- 4 poles
- Rated frequency 50/60 Hz
- Housing material Insulation class I, RAL 7035
- Power loss at nominal operating conditions per pole 4.5 W
- Mounting position any
- Overvoltage category III
- Pollution degree 3
- Type of terminal Screw Terminals
- Tightening torque 2.8 Nm
- Actuator type Lever
- Width 70 mm
- Height 88 mm
- Depth 69 mm
- Net weight 0.34 kg
- Ambient temperature in operation -25...+55 °C - in storage -40...+70 °C
Data sheet
- Voltage:
- 440V
- Modules:
- 4
- Poles:
- 4P
- Amps:
- 63A
- Circuit Protections:
- Disconnectors
- Operating voltage:
- AC
