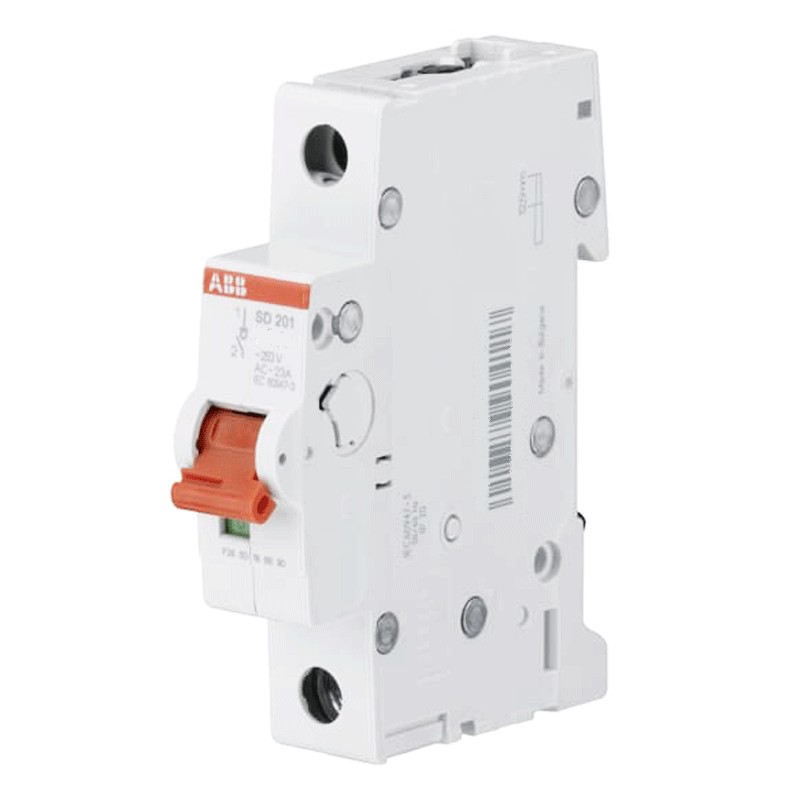

The disconnectorotherwise called voltage isolatorThe disconnector, also called voltage switch, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environment. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

It isdesigned for the disconnection of power lines according to CEI EN 60947-3, allowing the maintenance of devices connected downstream in safety, and for control under load.

Features:

• Abb series
• Operating voltage Maximum 266 Vac - Maximum 63 Vdc - Minimum 12 Vac
• Rated impulse withstand voltage 4 kV
• Rated operating voltage 253 Vac - 60 Vdc
• Rated current In 16A
• Degree of protection IP20
• 1 pole
• Enclosure material Insulation class I, RAL 7035
• Mounting position any
• Overvoltage category III
• Pollution degree 3
• Rated frequency 50/60 Hz
• Type of terminal Screw Terminals
• Tightening torque 2.8 Nm
• Actuator type Lever
• Width 17.5 mm
• Height 88 mm
• Depth 69 mm
• Weight 0.085 kg
• Ambient temperature in operation -25...+55 °C - in storage -40...+70 °C
