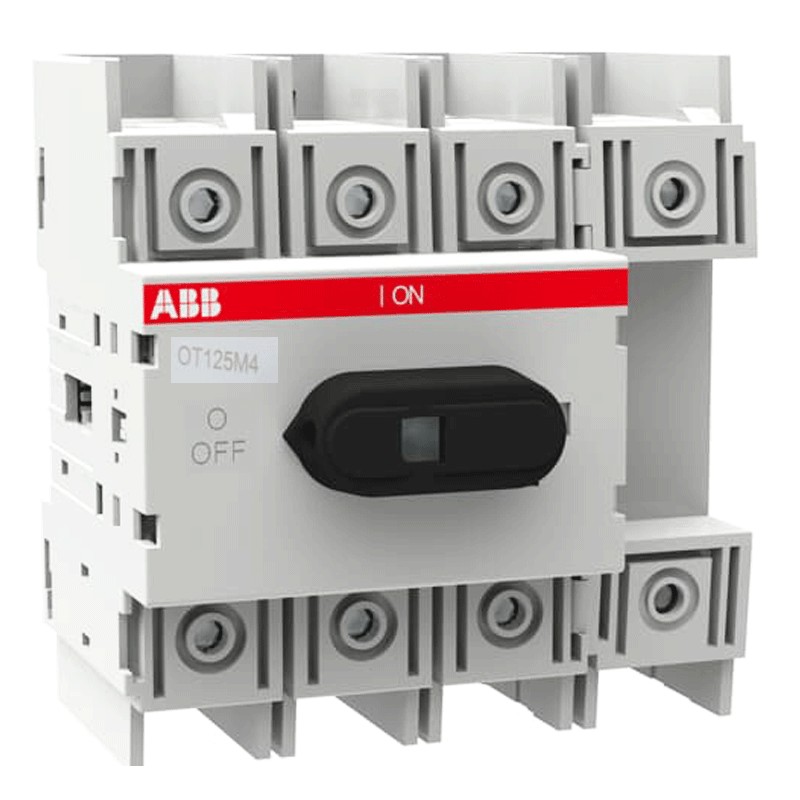

ABB OT125M4 4P 125A Rotary Disconnect Switch M299220


ABB M299220 6417019135427

Abb rotary disconnect switch, with the following characteristics:

  • Rated impulse withstand voltage 8 kV
  • Rated insulation voltage 750 Vac
  • Rated main circuit operating voltage 750 Vac
  • Rated short-circuit breaking capacity (690 V) 3.6 kA
  • Rated short-time withstand current for 1 s 2.5 kA
  • Rated current In 125 A
  • Conventional thermal current fully closed 125 A
  • Degree of protection in front IP20
  • 4 poles
Request info about this product

ABB OT125M4 4P 125A Rotary Disconnect Switch M299220

€107.02
€107.02

ABB OT125M4 4P 125A Rotary Disconnect Switch M299220

€107.02
Tax included
klarna Pay in installments with Klarna
qty

ABB OT125M4 4P 125A Rotary Disconnect Switch M299220

€107.02

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

It hasbeen designed for the disconnection of power lines according to CEI EN 60947-3, allowing the maintenance of downstream connected devices in safety, and for the control under load. The quick and safe opening mechanism guarantees very high performances both in current.

Thedisconnector, otherwise called voltage switch, has the same functions as a switch, but on a larger scale: it is, in fact, responsible for shutting off the flow of energy to the power distribution plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Features:

  • Abb Series
  • Rated impulse withstand voltage 8 kV
  • Rated insulation voltage 750 Vac
  • Rated main circuit operating voltage 750 Vac
  • Rated short-circuit closing capacity (690 V) 3.6 kA
  • Rated short-time withstand current for 1 s 2.5 kA
  • Rated current In 125 A
  • Conventional thermal current fully closed 125 A
  • Degree of protection in front IP20
  • 4 poles
  • Type of mounting Base mounting
  • Width 100 mm
  • Height 96.5 mm
  • Depth 74 mm
  • Net weight 0.49 kg
  • Power loss at rated operating conditions per pole 6.3 W
  • Pollution degree 3
  • Type of terminal Screw Terminals
  • Tightening torque 1.6 Nm
  • Mechanical life 20000 cycles

Data sheet

Voltage:
750VAC
Poles:
4P
Amps:
125A
Circuit Protections:
Disconnectors
Operating voltage:
AC
