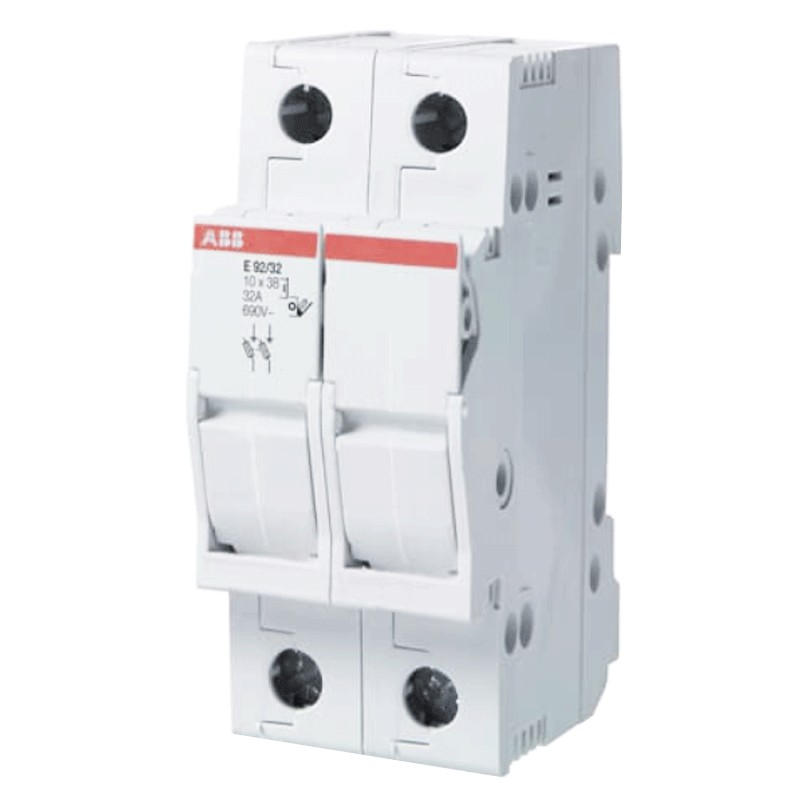

ABB Modular Disconnect Switch E 90 2P 32A M200883
ABB M200883
8012542008835
Abb modular disconnector, with the following characteristics:
- Rated voltage 690 Vac
- Rated operating voltage 690 Vac
- Nominal current In 32 A
- Rated frequency 50/60 Hz
- 2 poles protected
- Suitable for opening and closing circuits under load
- Degree of protection IP20
€11.37
Items Available: 272
: 12
The disconnector has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
It is suitable for opening and closing circuits under load, ensuring protection against short circuits and overloads.
Features:
- Abb Series
- Rated voltage 690 Vac
- Rated operating voltage 690 Vac
- Rated current In 32 A
- Rated frequency 50/60 Hz
- 2 poles protected
- Degree of protection IP20
- Fuse size 10x38 mm
- DIN rail mounting type
- Power loss at nominal operating conditions per pole 3 W
- Width 0.035 m
- Product height 0.085 m
- Product depth 0.064 m
- Product net weight 0.132 kg
Data sheet
- Voltage: 690VAC
- Poles: 2P
- Amps: 32A
- Circuit Protections: Disconnectors
- Operating voltage: AC
