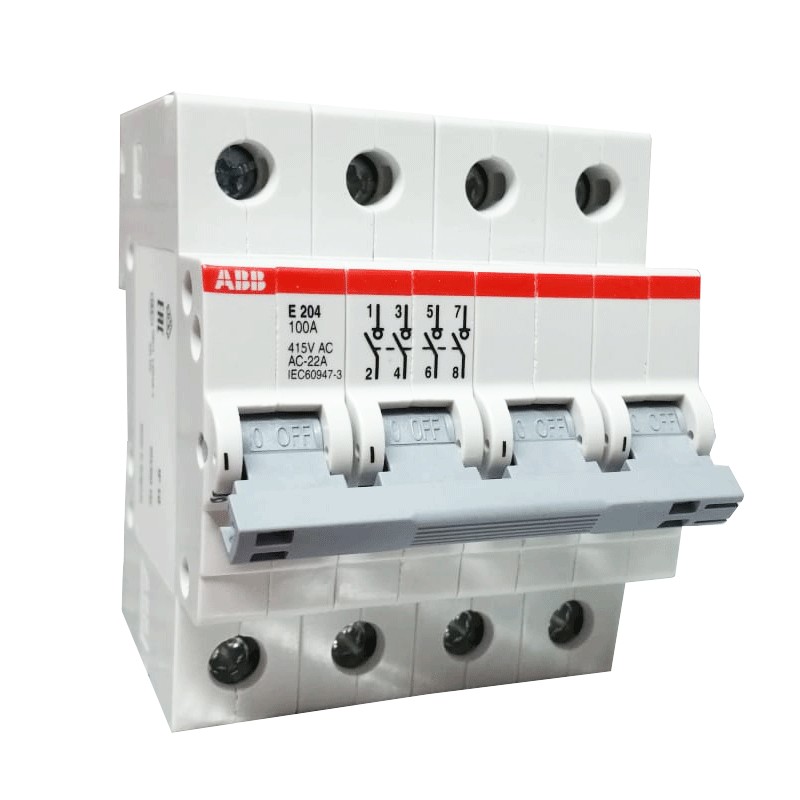

ABB E204/100G 4P 100A 4M disconnect switch M646291


ABB M646291 4016779646291

Abb switch/disconnector, with the following characteristics:

  • Rated voltage 415 Vac
  • Nominal current In 100 A
  • 4 poles
  • 4 modules
  • Power loss at nominal operating conditions per pole 3.95 W
Request info about this product

ABB E204/100G 4P 100A 4M disconnect switch M646291

€88.53
€88.53

ABB E204/100G 4P 100A 4M disconnect switch M646291

€88.53
Tax included
klarna Pay in installments with Klarna
qty

ABB E204/100G 4P 100A 4M disconnect switch M646291

€88.53

Buy it within and receive it from Friday, 12 April
Two-year warranty
Secure Payment
Easy return within 14 days

It isdesigned for the disconnection of power lines according to CEI EN 60947-3, allowing the maintenance of downstream devices in safety, and for the control under load. It is also equipped with a control lever that can be leaded in both positions.

The disconnectorotherwise known as voltage isolatorhas the same functions as a switch, but on a larger scale: it is, in fact, responsible for shutting off the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environment. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Features:

  • Abb Series
  • Rated voltage 415 Vac
  • Rated current In 100 A
  • 4 poles
  • 4 modules
  • Power loss at nominal operating conditions per pole 3.95 W
  • Width 70 mm
  • Height 85 mm
  • Depth 69 mm
  • Net Weight 0.39 kg

Data sheet

Voltage:
415VAC
Modules:
4
Poles:
4P
Amps:
100A
Circuit Protections:
Disconnectors
Operating voltage:
AC
