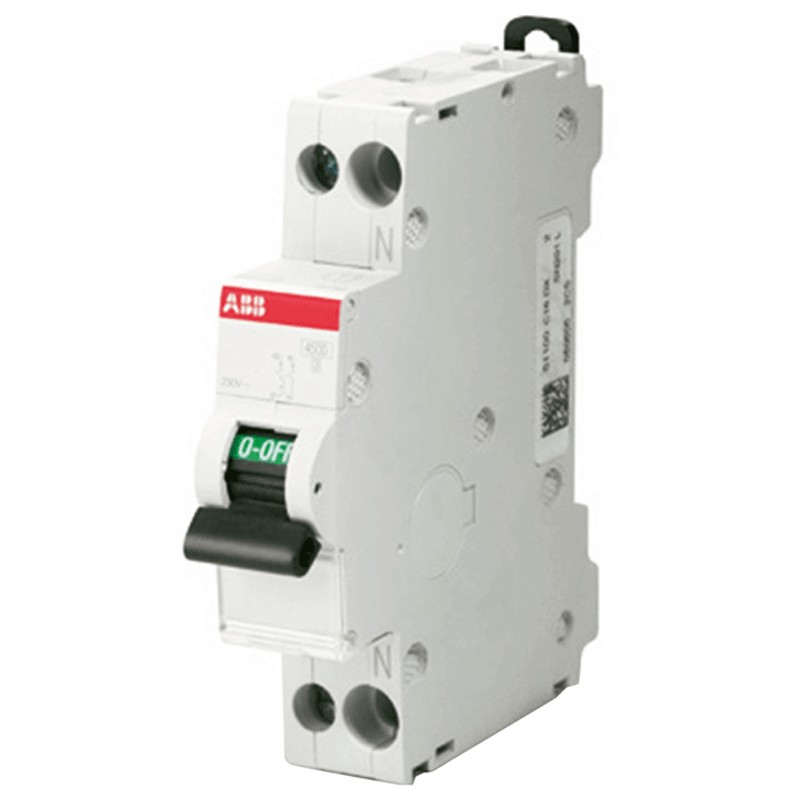

Abb Circuit Breaker 1P+N 25A 4.5kA Curve C 1M SN201LC25

Abb
Abb
ABB SN201LC25 8012542088851

Abb Circuit Breaker is a safety device designed for the protection of domestic and commercial electrical systems. It provides reliable automatic interruption in the event of an overload or short circuit, with the following characteristics:

  • Rated current: 25 amperes

  • Number of poles: 1P+N

  • Operating voltage: 230V

  • Interrupting capacity: 4.5 kA

  • Tripping curve: C

  • Number of modules: 2

  • Degree of protection: IP20

  • Mounting: On DIN rail, quick and easy installation

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb Circuit Breaker 1P+N 25A 4.5kA Curve C 1M SN201LC25
€7.76
€7.76

€7.76
Tax included
Calculate shipping cost
Items Available: 450
Further availability of the manufacturer
€7.76

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Abb Circuit Breaker Reliability C-Curve and Easy DIN-Rail Installation

Reliable protection with C curve

Designed to handle short-duration overcurrents up to 5-10 times the rated current, this circuit breaker provides optimal protection while avoiding unnecessary work on electrical systems.

Compact design and DIN-rail installation

With a 1-DIN module design, it is easily installed in electrical panels, taking up little space and providing convenient and safe installation.

Abb Circuit Breaker Technical Specifications

Feature Value
Rated current 25 A
Rated voltage 230 V AC
Input voltage type AC
Number of poles 1P+N
Number of Modules 1
Rated Frequency 50/60 Hz
Curve C
Impulse withstand voltage 4 kV
Dielectric proof voltage 2 kV
Rated primary impulse withstand voltage 4 kV
Power loss 4.4 W
Electrical resistance 10000 cycles
Mechanical resistance 20000 cycles
Overvoltage category III
Tightening torque 1.2 N-m
Cable stripping length 11 mm
Ambient temperature -25/+55 degrees
Degree of protection IP20
Pollution degree 2
Width 18 mm
Height 85 mm
Depth 69 mm

He hecho mi primera compra en esta tienda online. Mi conclusión, ¡todo fue como la seda!

Ottimo Prodotto e ottima qualità/prezzo.

Prodotto eccellente soddisfatto del acquisto

ottimo prodotto. Marca affidabile, lo consiglio

Prodotto eccellente soddisfatto del acquisto

Ottimo prodotto a prezzo molto conveniente.

Read all reviews

Data sheet

Voltage:
230VAC
Modules:
1
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
Amps:
25A
Circuit Protections:
Circuit breakers
