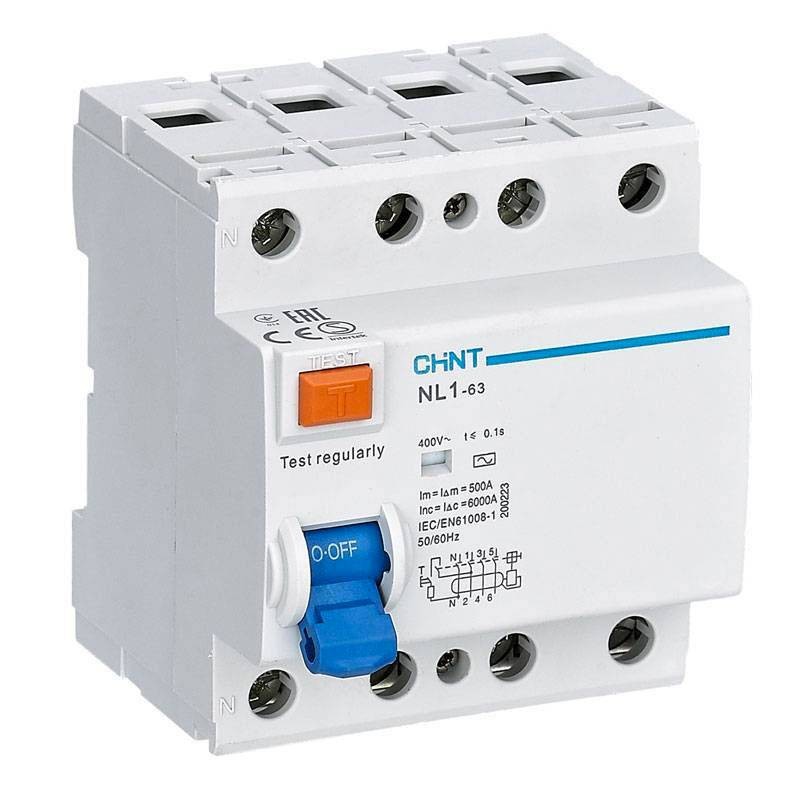

Chint Residual current device NL1-63 40A 4P 30MA AC Type 4 Modules 200224
CHT 200224
6925808309176
Chint NL1-63 Residual current device with the following characteristics:
- Number of Poles: 4P
- Rated current: 40 A
- Type: AC
- Rated voltage: 400 Vac
- Rated differential current: 30 mA
- Number of Modules: 4
- Degree of protection: IP20
Matching accessories: AX-5 series auxiliary contact.
€58.41
Out of stock
Incoming
The Residual current device is used to protect people, not systems. The moment the person goes to touch it, it creates a circuit with the ground. The current instead of staying in the household circuit, uses the human body to go to ground.
The residual current device, also called a circuit breaker, is a device in your electrical system. It is capable of opening the circuit, that is, shutting off the power supply, the moment the current accidentally dissipates.
A Residual current device offers protection in case of current leakage but not in case of overvoltage. Instead, the circuit breaker is required for this type of problem.
The AC-type earth leakage circuit breaker, works only with alternating current. Almost all installations for civil use fall into this type.
The pure earth leakage circuit breaker series NL1-63, without built-in overcurrent releases, for the protection of users against direct and indirect contacts.
Features:
- Reference standard: IEC/EN 61008-1
- Number of Poles: 4P
- Rated current: 40 A
- Rated voltage: 400 Vac
- Rated frequency: 50/60 Hz
- Insulation voltage: 500 Vac
- Impulse voltage: 6 kV
- Conditional short-circuit current: 6 kA
- Power Dissipation: 17 W
- Number of DIN modules (1 DIN = 18 mm): 4
- Degree of protection: IP20
- Dimensions: 86x72x79 mm (HxWxD)
- Matching accessories: AX-5 series auxiliary contact
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 4
- Poles: 4P
- RCD Type: AC
- Differential current : 0.03A
- Degree of protection: IP20
- Amps: 40A
- Circuit Protections: Residual current devices
