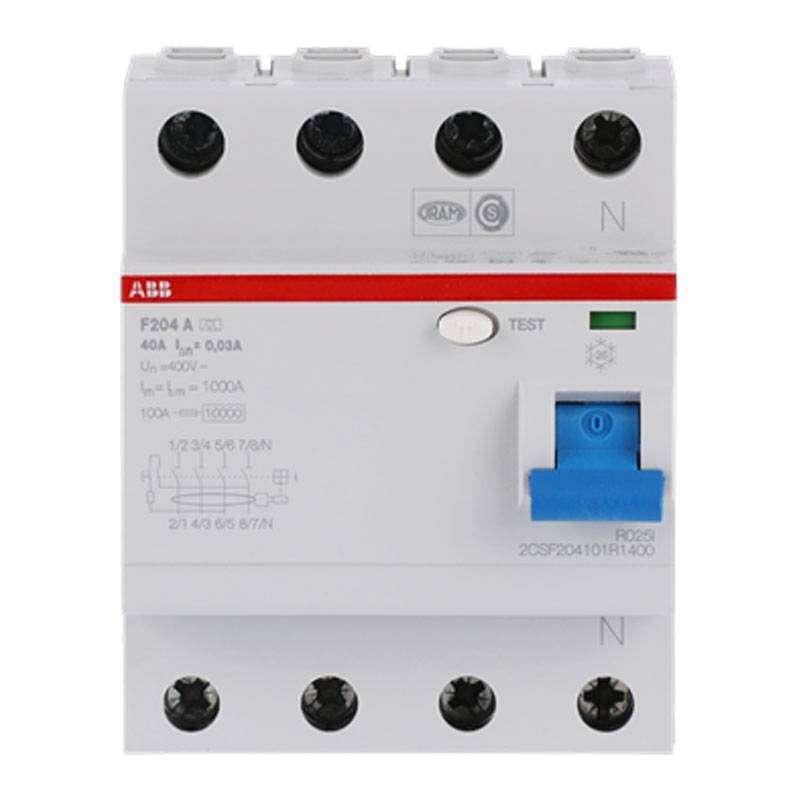

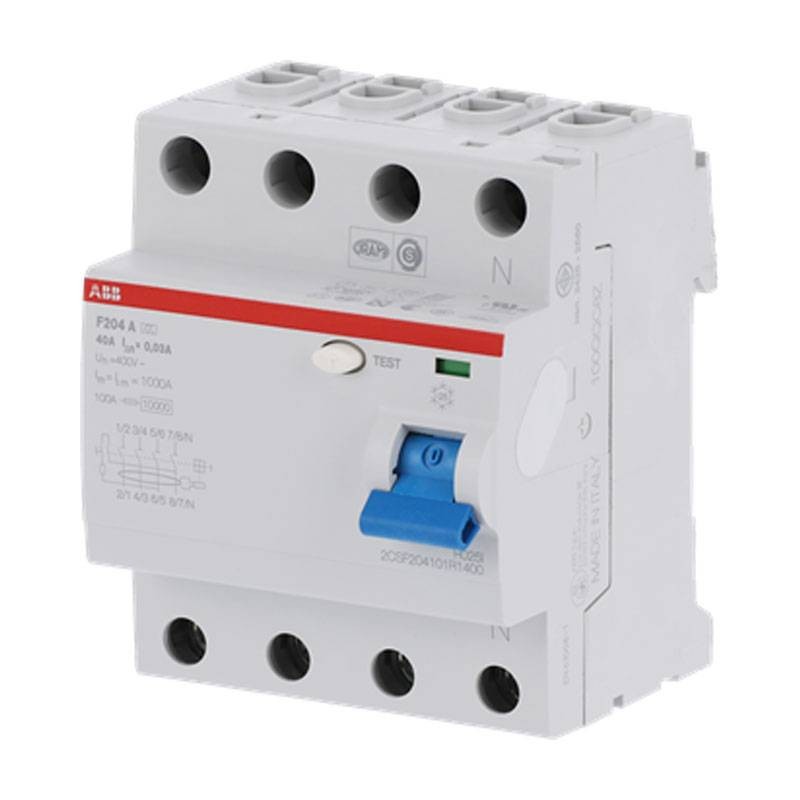

Abb Residual current device 4P 40A 30mA type A 4M F427835
ABB F427835
8012542783503
Abb Residual current device is a safety device designed to protect people from indirect contacts and provide additional protection against direct contacts. Ideal for residential, commercial and industrial installations, with the following features:
-
Rated current: 40 amperes
-
Number of poles: 4P
-
Rated residual current: 30 mA
-
Rated voltage: 230-400V AC
-
Type of differential current: A (protects against alternating leakage currents and unidirectional buttons)
-
DIN rail mounting (4 modules)
€197.93
Items Available: 6
: 2
Abb Residual current device 4P 40A 30mA type A
Residual current device, which means that its main function is to detect and interrupt any current leakage, protecting people from electric shock. However, it does not include a circuit breaker, so it must be flanked by a circuit breaker or fuses for protection against overcurrents and short circuits.
Operation and protection technology
As a type A device, it is designed to detect both alternating sine and pulsating unidirectional leakage currents, responding quickly even to gradually increasing fault currents. This feature makes it particularly suitable for installations with electronic equipment, such as household appliances and industrial devices.
Installation and compatibility
The residual current circuit breaker has compact dimensions and is easily installed on a DIN rail, occupying four modules. It has screw terminals with a tightening torque of 2.8 Nm and a cable stripping length of 12 mm, ensuring a secure and reliable fixing.
Durability and reliability
Built to operate in environments with temperatures ranging from -25 to +55 degrees, it offers excellent durability, with an electrical life of 1,000 cycles. Its ability to withstand voltages up to 500 V and an impulse withstand voltage of 4 kV makes it suitable for both domestic and industrial electrical systems.
Main Features
| Feature | Value |
|---|---|
| Rated current | 40 A |
| Number of poles | 4P |
| Rated residual current | 30 mA |
| Residual current type | Type A |
| Input voltage type | AC |
| Rated voltage | 230-400 V |
| Rated insulation voltage | 500 V |
| Test voltage | 170-254 V |
| Frequency | 50/60 Hz |
Performance and Safety
| Feature | Value |
|---|---|
| Impulse withstand voltage | 4 kV |
| Rated conditional short-circuit current | 10 kA |
| Electrical resistance | 1000 cycles |
| Degree of protection | Terminals IP20 - Housing IP40 |
| Pollution degree | 2 |
Installation
| Feature | Value |
|---|---|
| Number of modular spacings per DIN rail | 4 |
| Tightening torque | 2.8 Nm |
| Length of cable stripping | 12 mm |
| Clamp type | Screw clamps |
| Ambient temperature | -25/+55 degrees |
Dimensions
| Feature | Value |
|---|---|
| Width | 70mm |
| Height | 85 mm |
| Depth | 69 mm |
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 4
- Poles: 4P
- RCD Type: A
- Differential current : 0.03A
- Amps: 40A
- Circuit Protections: Residual current devices
