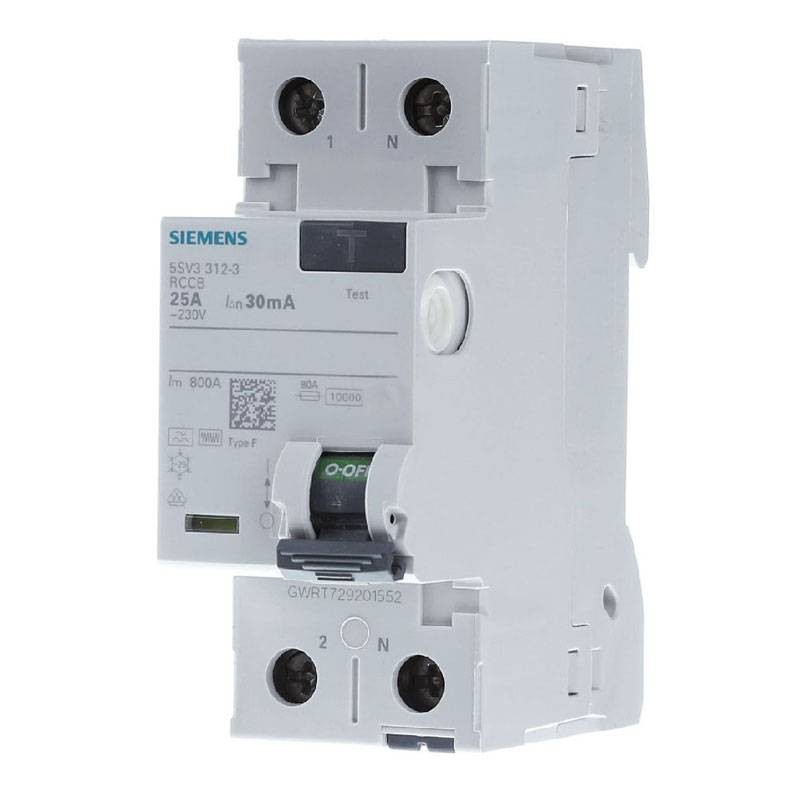

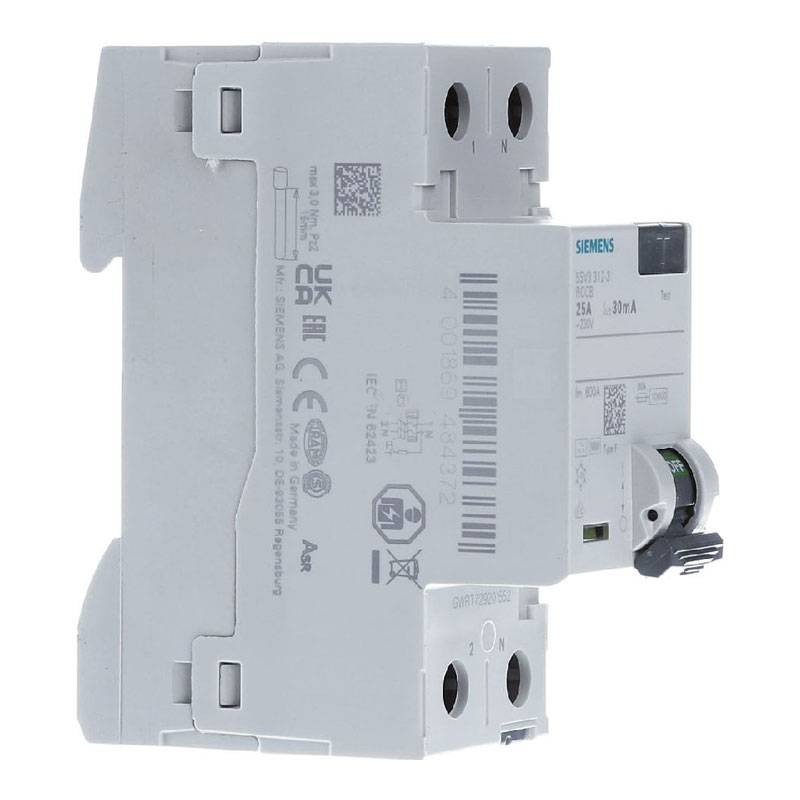

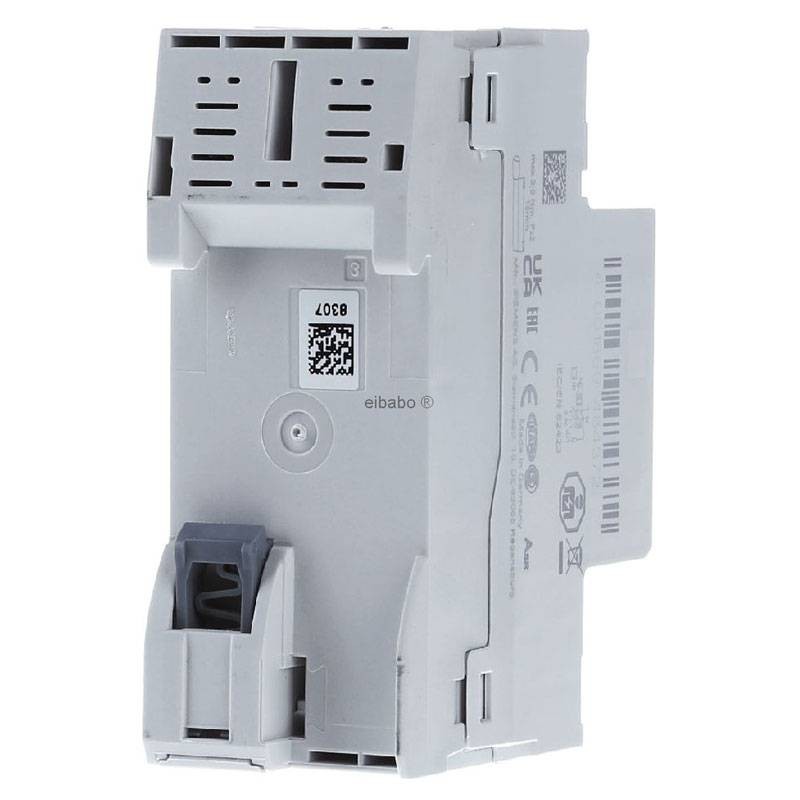

Siemens Residual Current Device 25A 2P 30mA Type F 5SV33123
SIE 5SV33123
4001869484372
Residual Current Device Siemens 5SV33123 Type F 25A 2 poles 30mA, 2 modules. Effective protection against indirect contact and current leakage in the presence of loads with single-phase inverters such as heat pumps and washing machines.
-
Rated current: 25A
-
Differential sensitivity: 30mA
-
Number of poles: 2 (2P)
-
Type F (with short delay) suitable for loads with single-phase inverters
-
Width: 2 DIN modules
-
Rated voltage: 230V AC
-
Protection for people against current leakage
-
Siemens Brand Series 5SV3
€39.70
Items Available: 234
Residual Current Device Siemens 5SV33123: advanced protection for modern installations
The residual current device Siemens 5SV33123 is designed to ensure maximum safety for people against current leakage and indirect contact, promptly interrupting the circuit in case of a fault to earth. With a rated current of 25 amperes and a sensitivity of 30 milliamperes, this device is the ideal choice for modern civil and residential installations.
Function and protection principle
The Siemens residual current device acts by detecting abnormal leakage currents to earth: when these exceed the limit value of 30mA, the device immediately cuts off the power, preventing the risk of electric shock. Being a pure residual current device, it protects people but not circuits from overloads or short circuits. For complete protection of the installation, it is advisable to pair it with a circuit breaker.
Type F technology: safety for loads with inverters
Type F residual current devices, introduced according to the CEI EN 62423 standard, offer advanced protection compared to traditional AC or A type models. They are specifically designed to handle variable frequency fault currents generated by appliances with single-phase frequency converters, such as:
-
Heat pumps
-
Washing machines and dryers
-
Inverter air conditioners
-
Advanced electronic equipment
The short time delay ensures stability and reduces unwanted disconnections due to transient micro leakages.
Siemens build quality and reliability
The Siemens 5SV33123 residual current device belongs to the 5SV3 series, synonymous with safety, durability, and precision in operation. The compact 2 DIN module construction makes it suitable for domestic and industrial electrical panels, ensuring easy installation and compatibility with all standard distribution systems.
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 2P
- RCD Type: F
- Differential current : 0.03A
- Amps: 25A
- Circuit Protections: Residual current devices
