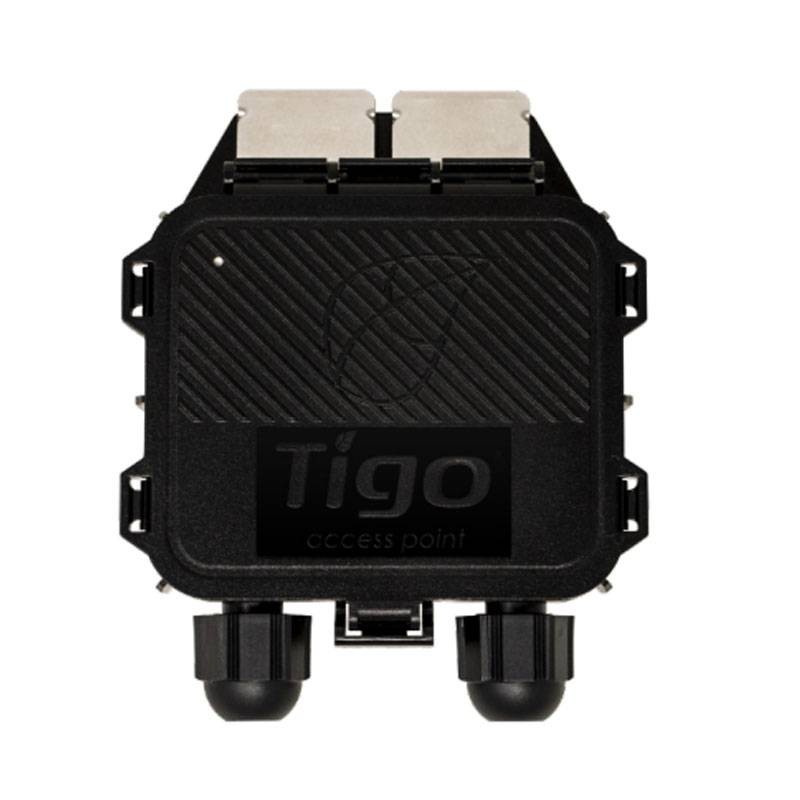

Tigo Energy Access Point TAP for photovoltaic systems
70A TIGO TAP
8003341004180
Tigo Energy TAP is a wireless access point that optimizes communication between Tigo Smart modules and the CCA system, providing monitoring and security at the individual module level.
-
Wireless mesh communication with Tigo TS4 units
-
Module-level monitoring when combined with CCA
-
UL-compliant quick shutdown for added safety
-
Quick installation without screws or tools
-
Compatible with TS4-A-O, TS4-A-S, TS4-A-M
-
RS485 connection with Cloud Connect Advanced (CCA)
-
Supports up to 300 TS4 units
€47.69
Items Available: 7
: 4
Frequently bought together
Tigo Energy TAP: Intelligent control for photovoltaic systems
The Tigo Energy Access Point (TAP) is an essential component for improving the management, safety, and efficiency of your PV system. Designed to communicate in wireless mesh mode with Tigo TS4 retrofit units and smart modules, TAP enables detailed analysis of individual panel performance.
Module-level monitoring and visibility
Coupled with Cloud Connect Advanced (CCA), TAP enables module-level monitoring, providing accurate data on production, performance, and malfunctions. This allows you to intervene quickly when problems occur and maximize plant performance.
Advanced safety with rapid shutdown
One of the key advantages of TAP is module-level shutdown, which is critical to comply with safety (UL) regulations. In case of emergency or maintenance, the system can shut down instantly, increasing the protection of people and equipment.
Quick and easy installation
The device is designed to be easily installed on the module frame, without the need for tools or screws. With the Tigo EI app, configuration can be completed in minutes directly from a smartphone or tablet.
Compatibility and scalability
TAP is compatible with TS4-A-O, TS4-A-S and TS4-A-M units, supporting up to 300 devices. Connection to the CCA is via RS485 cable, ensuring stability and reliability in data transmission.
Technical Features
| Feature | Value |
|---|---|
| Model | Tigo Energy Access Point (TAP) |
| Communication type | Wireless mesh |
| Connection with CCA | RS485 cable |
| Compatibility | TS4-A-O, TS4-A-S, TS4-A-M |
| Maximum number of units supported | 300 |
| Key Features | - Communication with TS4 modules - UL-compliant quick shutdown - Module-level wireless monitoring - Simple installation, no screws or tools - System startup via Tigo EI app on mobile device |
| Input voltage range | 5 VDC - 25 VDC |
| Power consumption | 0.5 W (average) / 1 W (peak) |
| Recommended cable type | RS485, 18-22 AWG |
| Dimensions | 126.2 × 130.0 × 26.8 mm (with bracket) |
| Weight | 227 g |
| Operating temperature range | -30 °C to +70 °C |
| Environmental rating | IP68, type 4R |
| Maximum distance TAP → TS4 nearest | 10 m |
| Maximum distance TAP → TS4 farthest | 35 m |
| Total TS4 units supported | Up to 300 (environmental conditions may affect) |
There are no reviews
Data sheet
- Type: Access point
