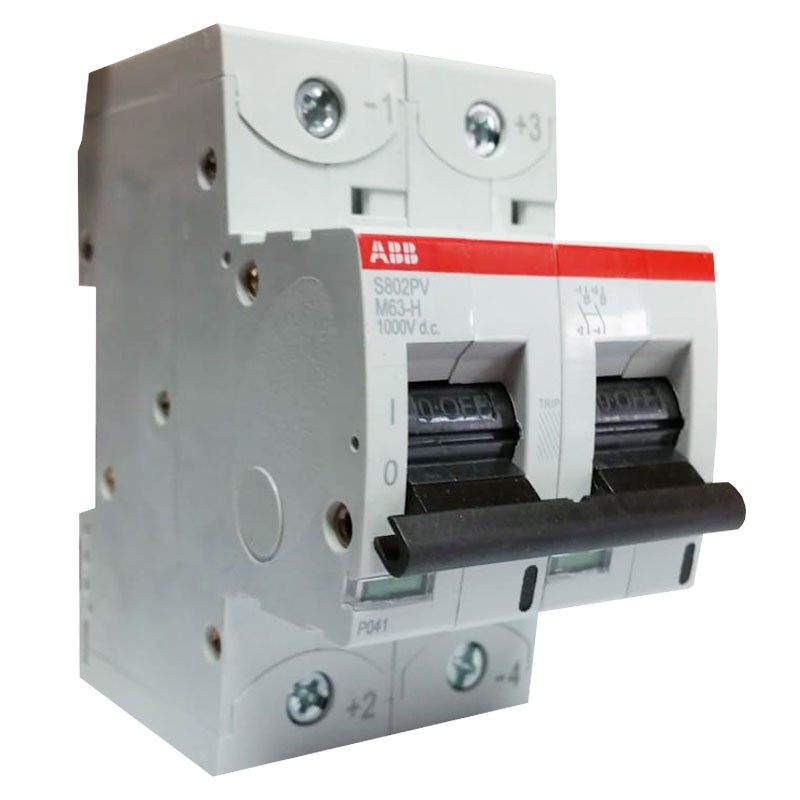

Abb Disconnect 63A 1000VDC 2 poles S802PVM63H
ABB S802PVM63H
7612271419042
ABB high performance disconnect switch with the following features:
- Rated operating voltage: 800 V DC
- Rated insulation voltage (Ui): 1500 V DC
- Impulse withstand voltage (Uimp): 8 kV
- Rated current (In): 63 A
- Rated operating current (Ie): 63 A
- Rated short-circuit closing capacity (Icm):(1000 V DC) 0.5 kA
- Rated short-time withstand current (Icw):1.5 kA
- Rated uninterrupted current (Iu): 63 A
- Number of poles: 2
€222.63
Items Available: 23
: 1
Features:
- Abb Series
- Power loss:1.8 W - at Nominal Operating Conditions per Pole 0.9W
- Indication of contact position: ON / OFF / TRIP
- Number of disconnectors: 8500
- Overvoltage category: IV
- Tightening torque: 3.5 Nm
- Actuator marking: I / O
- Enclosure material: Insulation class I, RAL 7035
- DIN rail mounting:TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm Mounting Rail) according to IEC 60715
- Mounting Position: Any
- Recommended Screwdriver: Pozidriv 2
- Control Element Color: Black
- Connection capacity: Flexible 1 ... 50 mm²
- Stranded: 1 ... 70 mm²
- Terminal type: Screw Terminals
- Ambient temperature In operation -25 ... +60 °C - In storage -40 ... +70 °C
- Degree of protection: IP20
- Pollution degree: 2
- Shock resistance according to IEC 60068-2-27: 5 g/ 30 ms
- RoHS Declaration: According to EC Directive 2011/65/EC
Environmental Conditions
- Cyclic Damp Heat according to IEC 60068-2-30 12+12 cycle(s)
- Cyclic humid heat according to IEC 60068-2-30 55°C @ 90-96%.
- Cyclic Damp Heat according to IEC 60068-2-30 25°C @ 90-100%.
- Heat Dry Test B according to IEC 60068-2-2 16 hours @ 55°C
- Dry Heat Test B according to IEC 60068-2-2 2 hours @ 70 °C
Vibration resistance according to IEC 60068-2-6:
- 2 - 13.2 Hz / 1mm
- 13.2 - 100Hz / 0.7g
- at 100% load x Ie
Dimensions:
- Width: 54 mm
- Height: 95mm
- Depth: 82.5 mm
- Length: 54 mm
- Net Weight: 490 grams
Introvabile quasi ovunque in pronta consegna
Consegna perfetta, prezzo ottimo, imballo perfetto
Data sheet
- Voltage: 1000V
- Poles: 2P
- Degree of protection: IP20
- Amps: 63A
- Circuit Protections: Disconnectors
- Operating voltage: DC
