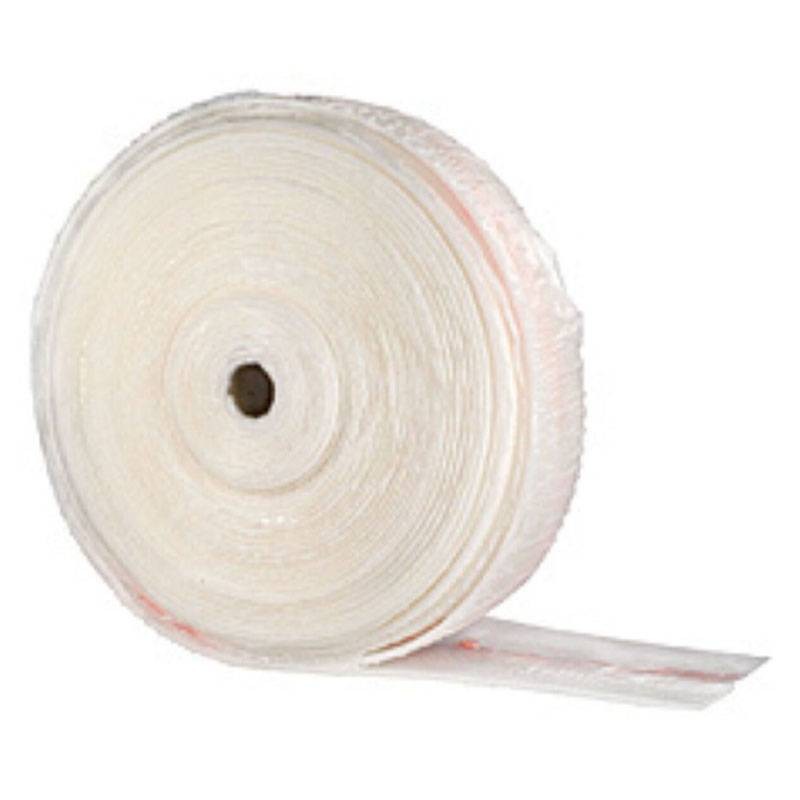

Giacomini perimeter strip for radiant heating 150x8mm 50m K369AY021
GIM K369AY021
8009902214807
Adhesive perimeter strip for Giacomini radiant floor systems, ideal for residential and industrial systems, with the following characteristics:
-
Material: closed-cell expanded polyethylene, CFC-free
-
Height: 150 mm
-
Thickness: 8 mm
-
Ideal for: Radiant floor systems in residential environments
-
Sound reduction: up to 25 dB
The selling price is per meter, only sellable in rolls of 50 meters.
€1.07
Items Available: 1100
: 300
Giacomini perimeter strip essential for any radiant system
K369A perimeter strip is designed to ensure proper expansion of the screed in underfloor heating or cooling systems. Made of closed-cell polyethylene foam, it has a fully adhesive side that facilitates its application along the walls, preventing displacement during the screed casting phase.
Quick and safe installation
Installation is quick and easy: simply apply the adhesive strip along all perimeter walls and around vertical elements such as columns or pipes. Once the flooring is completed, the excess part of the band can be easily cut off, leaving the subfloor free to expand safely.
Ideal for thermal and acoustic insulation
In addition to allowing the screed to expand, the band helps reduce the transmission of footfall noise through a 25 dB sound reduction. This also makes it an ideal solution in living contexts where acoustic comfort is an added value.
Technical Characteristics Adhesive perimeter strip
| Parameter | Value |
|---|---|
| Material | Closed-cell polyethylene foam |
| Height | 150 mm |
| Thickness | 8 mm |
| Roll length | 50 m |
| Temperature range | -20°C TO +80°C |
| Acoustic abatement | 25 dB |
| Compression value | 13 kPa |
| Dynamic stiffness | 41 MN/m³ |
| Toxicity (conventional index) | 10 |
| Smoke class | F1 |
| Adhesive | Yes (one side) |
| CFC free | Yes |
| Dimensional tolerance | ±10% |
There are no reviews
Data sheet
- Type: Adhesive tapes
