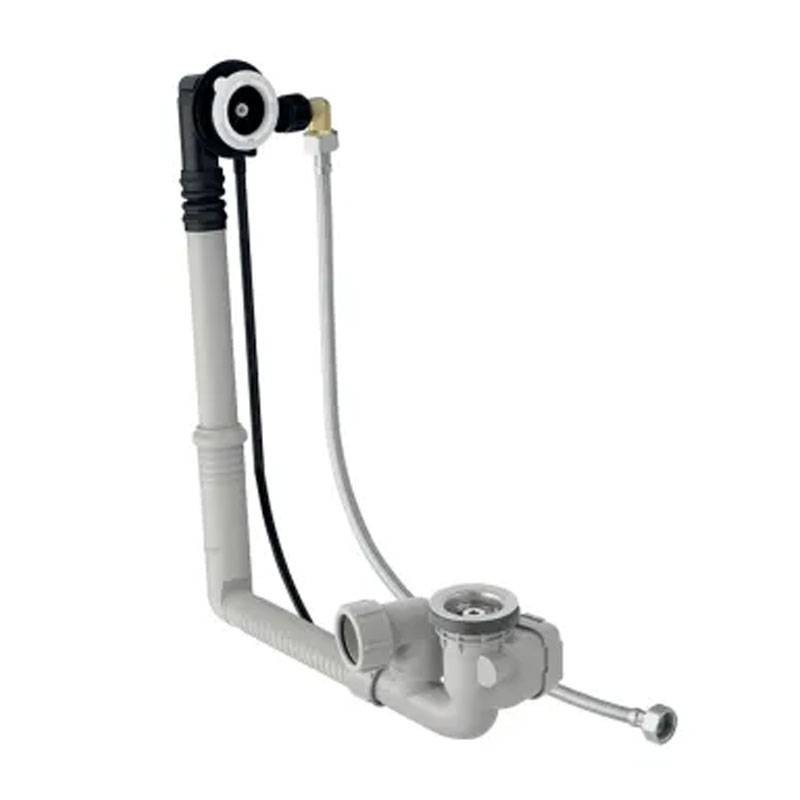

Geberit d52 bathtub Plumbing Trap rotary actuation 150.704.00.6
GEB 150.704.00.6
4025410568427
Geberit d52 bathtub Plumbing Trap with rotary operation and delivery to the overflow principle counterflow with the following features:
- Diameter: 40 mm
- System noise at 3 bar 15 dB(A)
- Noise class 1
- Inlet flow rate at 3 bar 0.35 l/s
- Discharge flow rate 0.85 l/s
- Overflow capacity 0.6 l/s
- Height of hydraulic closure 50 mm
For steel, synthetic or cast iron bathtubs.
€126.63
€126.63
Tax included
Tax included
Items Available: 4
: 2
Features:
- Complies with EN 274
- With overflow and delivery to the overflow
- Swiveling inlet nozzle
- Gaskets on both sides on drain and overflow
Intended uses:
- For steel, synthetic or cast iron bathtubs
- For standard-size bathtubs
- For bathtubs with ø 52 mm drain hole
Material supplied:
- Waste outlet
- Siphon
- Overflow with overflow outlet
- 90° technical elbow with MasterFix, 1/2, radial seal
- Water connection hose 1/2", radial gasket
- Site protection
- Fixing material
There are no reviews
Data sheet
- Type: Plumbing Traps
