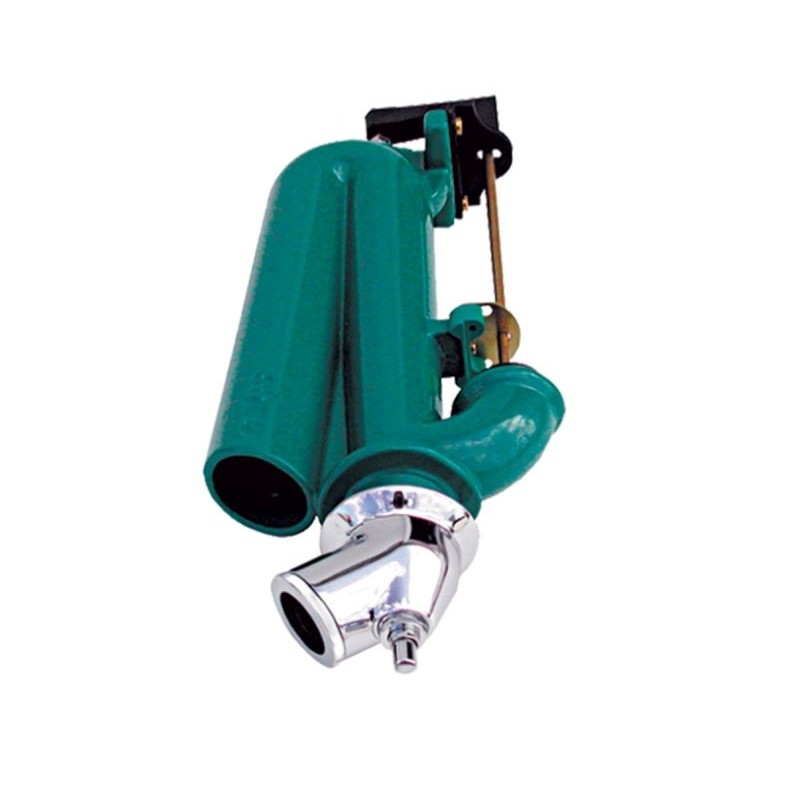

Catis New Junior toilet flush valve, direct control and compact installation for tall ceramic cisterns, with the following features:
Control: Manual integrated at the bottom
Drain outlet connection: 30 mm
Outlet union: 1 1/4 inch
Made from: Brass, copper, cast iron and chrome components
Compatible with: High ceramic cisterns
Complete with: Chrome plated button and connection kit
The Catis New Junior toilet flush valve is designed to offer a compact and functional solution for installations with high mounted ceramic cisterns, typical of attics, attics and cramped rooms. Equipped with a direct manual override with a chrome-plated button located at the bottom of the siphon, it allows quick and convenient flushing even in spaces with limited room for movement.
Entirely manufactured in Italy, the New Junior valve is made of top-grade materials: brass, copper, cast iron and chrome-plated parts, coated with a high-strength green plastification. This composition ensures durability, corrosion resistance and reliability even after years of use. The aesthetics are complemented by a polished chrome finish on the button, combining functionality and style.
The device allows flushing even when the cistern is not completely filled, optimizing water consumption and allowing flexible flow management, ideal for situations where low or frequent toilet use is required. Half-height operation makes it perfect for installations at an intermediate height between high and built-in cisterns.

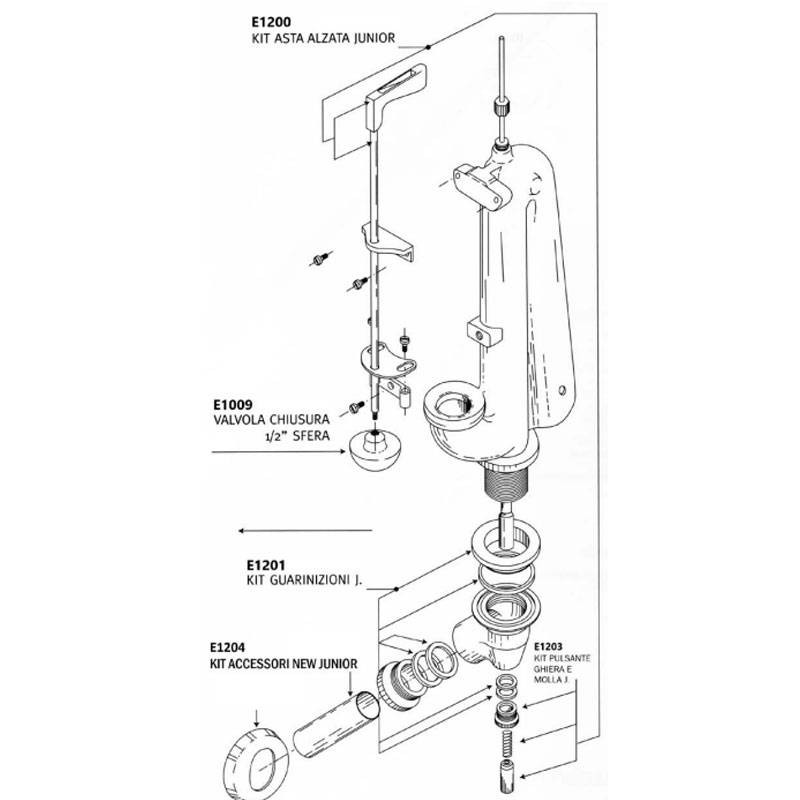

The siphon is complete with all components necessary for installation:
Control button in High Chrome finish
Sealing gaskets
Fixing ring nut
Connection kit
This ensures quick and safe installation without the need for additional accessories.
Bathrooms in attics, attics or rooms with low height
High ceramic cisterns
Technical rooms or facilities where a direct control solution is required
Public and private environments with a need for practical and durable drainage
Water systems with neutral or normal pH
| Parameter | Value |
|---|---|
| Type of control | Direct manual, lower button |
| Outlet connection | Ø 30 mm |
| Outlet port | Threaded 1 inch 1/4 |
| Materials | Brass, copper, cast iron, green plasticized |
| Button included | In High Chrome finish |
| Accessories included | Gaskets, retaining ring, connection kit |
| Compatibility | High ceramic cassettes |
| Operation | Even with partially filled cassette |
| Fluid compatibility | Water with normal pH |
