BwT CB MULTIBLOCK X 1" multiple valve for softener connection 012615AB
CIL 012615AB
9022000015809
BWT Italy CB MULTIBLOCK X 1-inch multiple valve, is a water supply connection assembly used for the installation of water softeners and for the purification and treatment of drinking water:
- Cillit-PARAT, Cillit-NECKAR and Cillit-GENIUS DUO CYBER
- Cillit-PARAT and NECKAR PLUS denitrification softeners
- Cillit-EN DATA denitrifiers as well as
- Cillit-AQUA TOTAL 1-inch and 1 1/4-inch devices
Specifications:
- DN25 connection dimensions
- IN-OUT connections to the network 1 inch male
- IN-OUT connections to the appliance 1 1/4 inch male
- Flow rate with p 0.2 bar 2.5 m3/h
- Flow rate with p 0.8 bar 5.0 m3/h
- Maximum rated pressure 10 bar
- Min/max water temperature -5+30 degrees
- Min/max ambient temperature: -5/+40 Degrees
€166.90
Out of stock
Incoming

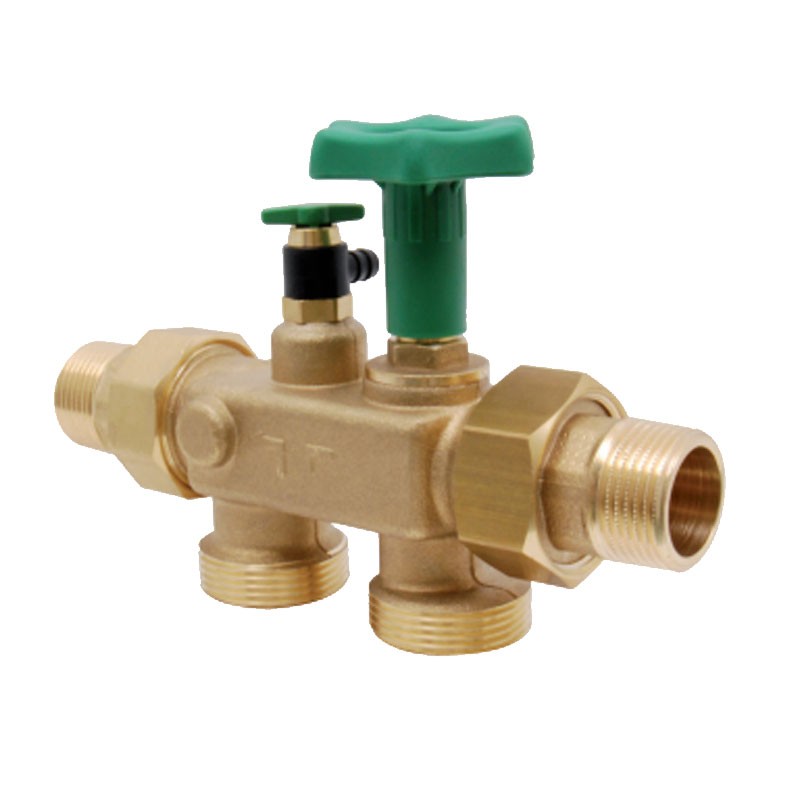

The CB-MULTIBLOCK X 1 inch consists of a brass assembly complete with tangs and half nozzles for connection to the water supply, fittings for connection, by means of armored hoses to the equipment.
The CB-MULTIBLOCK X enables the following functions:
- Integral by-pass
- Check valve
- Deaeration valve
- Sample pickup or injection point for metering pumps
- Use the Multiblock E Connection Set for connection to the equipment.
Special and basic requirements:
- Brass assembly equipped with handwheel, sample taking tap, water supply connection fittings with tangs and half spouts, and fittings for connection to equipment
- Integral by-pass function (by full rotation of the handwheel) allows maintenance operations to be carried out on the equipment without having to interrupt water supply to the user
- Built-in check valve to prevent, as required by the standard, backflow of water from the utilities
- Integrated deaeration valve
- Sample tap or injection point for metering pumps
- Apparatus made with materials complying with M.D. 174/04 and in accordance with M.D. Health 25/2012
Ware passt, so wie geschrieben. War super verpackt
alles Bestens, schnelle Lieferung, Ware wie beschrieben
Data sheet
- Type: Water softener valves
