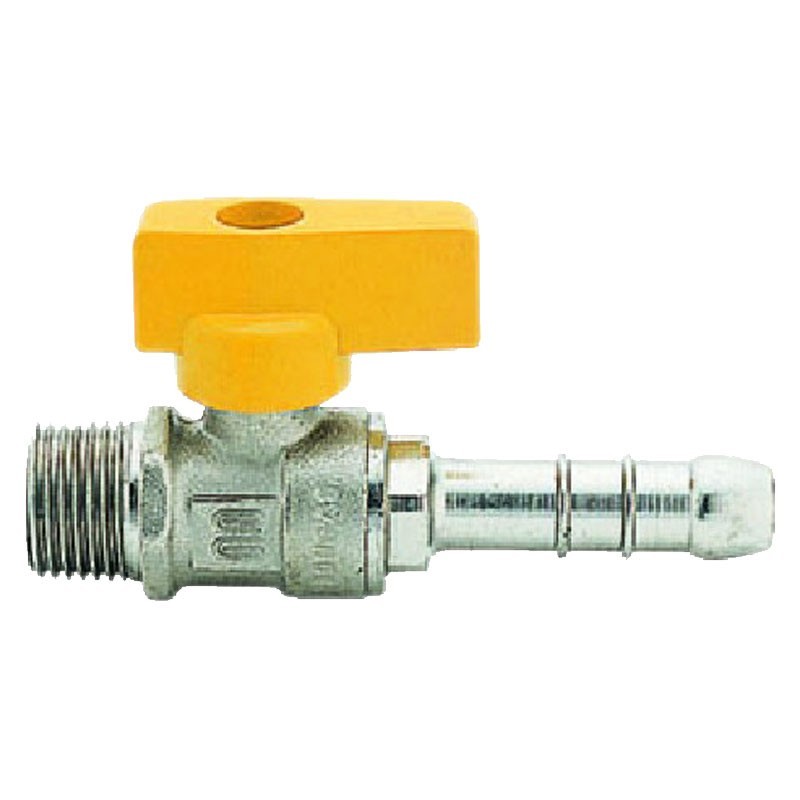

Ball valve for natural gas Enolgas Bon Gas M 1/2 G0302N04
ENO G0302N04
8010660021842
Ball cock for fuel gas male 1/2 Enolgas hose connector according UNI7141, with yellow plastic coated aluminium lever, nickel-plated.
€7.60
Items Available: 28
: 18
INTERNATIONAL APPROVALS
- The ball valves in the BON-GAS approved to EN 331
- The ball valves in the BON-GASES have obtained official approvals for use with gas in various countries.
THREADS
Threaded ends UNI EN 10226 (ex ISO 7/1).
LOANS
- Fuel Gas:town gas (1st family) - natural gas (2nd family) - liquid gas (3rd family)
- The ball valves in the BON-a GAS are also suitable for use with hot and cold water, compressed air, oils and hydrocarbons in general.
OPERATING PRESSURE
- For fuel gas max 5 MOP
- For other uses with liquids from PN 40 (1/2") to PN 16 (2")
- See pressure/temperature diagram.
TEMPERATURE LIMITS
- For fuel gas from -20°C to +60°C.
- For other uses -20°C +130°C.
- See pressure/temperature diagram.
There are no reviews
Data sheet
- Type: Ball taps
- Connection: M
- System: Gas
- Connections: 1/2 inches
