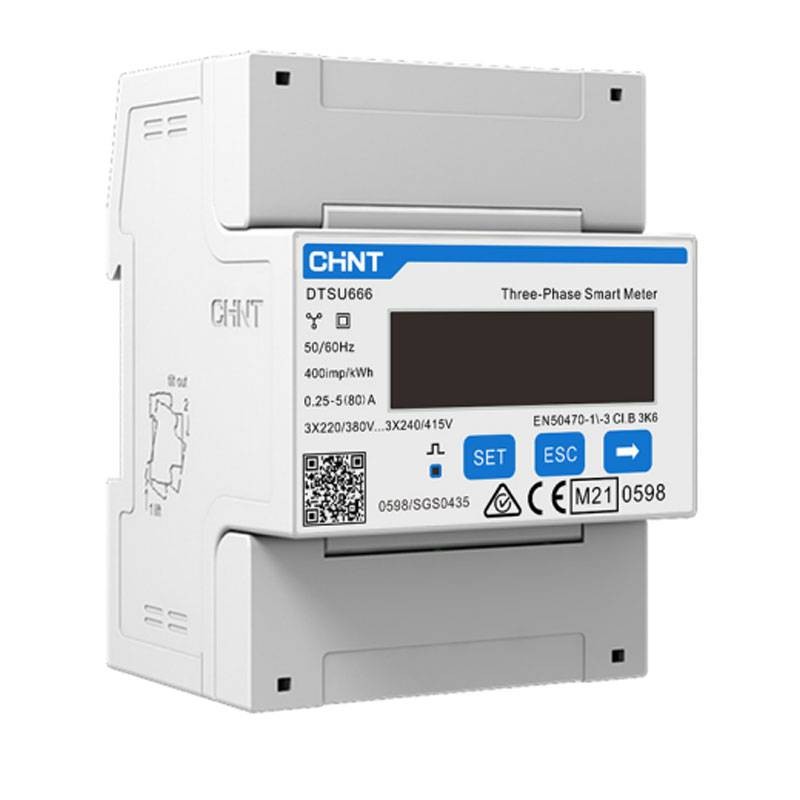

Peimar Meter for Hybrid X3 Three-Phase Photovoltaic Inverter PSI-X-3PMETER-HY
492 PSI-X-3PMETER-HY
9000010881645
Peimar Meter, for X3 Hybrid Photovoltaic Inverters:
- Internal current transformer (direct insertion)
- Display with withdrawal and input data
- Compatibility with NOCTIS X3 series three-phase hybrid inverters
€153.06
Out of stock
Incoming
Features:
- Three-phase application
- Rated voltage 3 × 220/380 V ~ 3 × 240/415 V
- Operating range 0.7 - 1.3 V
- Maximum current 80A
- Frequency 50/60 Hz
- Power consumption <1.5W
- Brand CHINT
- Model DTSU666
- LCD display
- RS485 communication
- Operating temperature range -25°C to 75°C
- Relative humidity <75% without condensation
- Production grade IP51
- Installation method Support bracket DIN35
- Dimensions (H x W x D) 100x72x65mm
- Weight 0.4 kg
- Connection type Direct insertion (without external CT)
There are no reviews
Data sheet
- Type: Energy Meters
