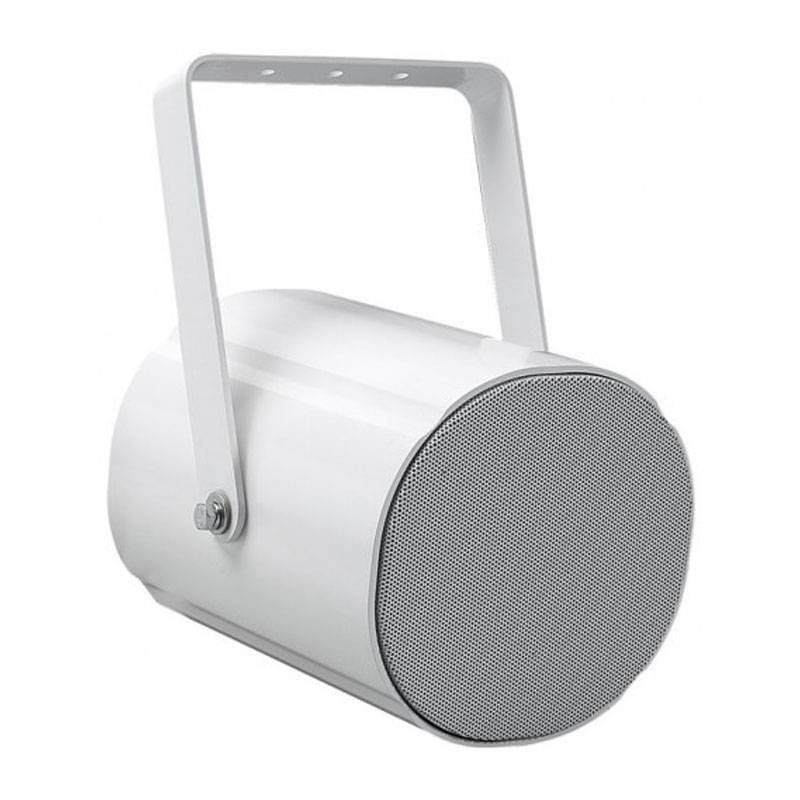

Notifier Speaker 20W EN54-24 582474
NOT 582474
Notifier Unidirectional Speaker:
- Power 20 watts per line at 100V
- IP65 degree of protection, even for outdoor use
- Aluminum construction
- Dimensions Ø 140 mm x 140 mm x 195 mm
- Color: white
€120.73
Items Available: 2
: 1
Product Overview:
- This speaker is a high-performance 20 W unidirectional voice alarm sound projector. It provides a wide frequency response range, low distortion and high sound pressure level for accurate and intelligible transmission of evacuation messages and high quality sound reproduction
- Can be used in indoor, outdoor, dry, or humid applications, ensuring reliable operations over wide ranges of temperature and humidity
- Its low-profile, white-colored design blends easily with most interiors in places such as hotels, conference rooms, cinemas, theme parks, factories, and exhibitions
- This unidirectional voice alarm sound projector complies with BS 5839 part 8 and EN 54 part 24 standards
Mounting:
- A durable bracket is provided for quick installation and flexible angle adjustment. In addition, this unidirectional speaker can be mounted on the ceiling with a bracket
The product comes with a one-meter fire-resistant six-core cable already connected to the ceramic connector. The cable is a bundle of color-coordinated wires corresponding to the different power sockets on the transformer. The cable connector is mounted on the back cover for easy installation
Advantages:
- Understandable voice and superior sound reproduction
- Ceiling or wall mounting
- Meets virtually all outdoor requirements
- Water and dust protection IP 65
- Complies with EN 54-24
Electrical characteristics:
- Maximum energy 30 W
- Rated power 20 W
- Power intercept 20 W / 10 W / 5 W / 12.5 W
- SPL @ 1 W/1 m (100 Hz ~ 10 kHz) 89dB
- SPL @ 20 W / 4 m (100 Hz ~ 10 kHz)
- Frequency range 150 Hz ~ 20 kHz
- Nominal input voltage 100 V/70 V
- Nominal impedance Fire-resistant cable 500 ? /
- Connection 11 k ? / 2 k ? / 4 k
Mechanical characteristics:
- Dimensions Ø 140 mm x 140 mm x 195 mm
- Speaker diameter 5.25
- Weight 2.65 kilograms
- Color White (RAL 9003)
- Material Aluminum
Environmental characteristics:
- Operating temperature -25°C...+55°C
- Storage temperature -40°C...+70°C
- Relative humidity <95%
