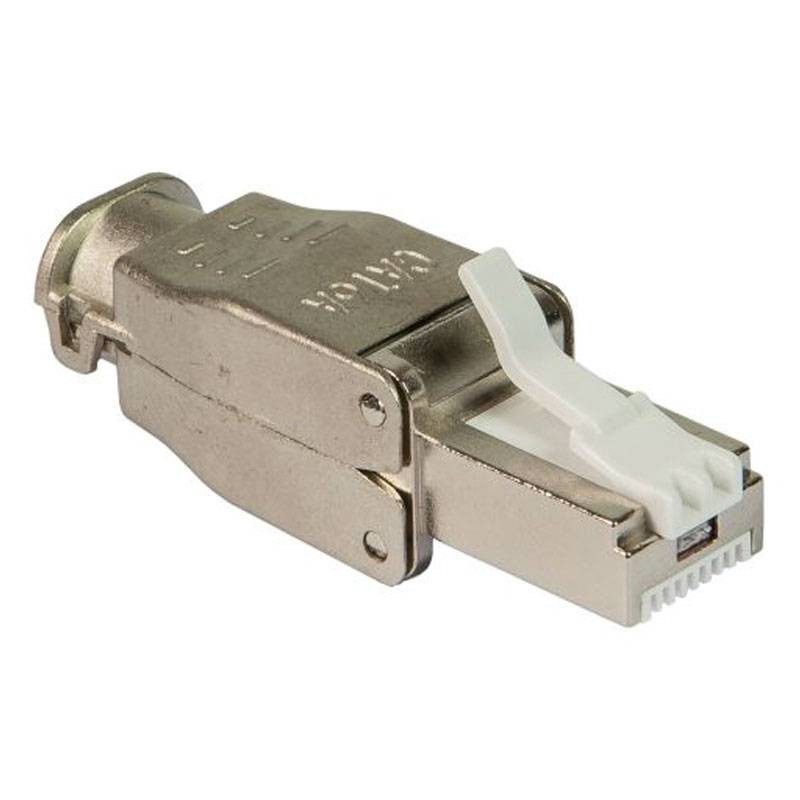

Plug Plug RJ45 Fanton FTP CAT6 TOOLLESS shielded plug 23725
FME 23725
8015450154847
Plug Plug RJ45 Fanton FTP CAT6 TOOLLESS 8/8 screen.
€12.05
Items Available: 88
: 54
Features:
- Plug Type: RJ45 - T568A/B Plug
- Contact: Gold plated bronze alloy 50m
- Contact resistance: Max. 20 mOhm
- Insulation resistance: MIn. 100 MOhm @500 Vdc
- No. of plug insertion cycles: Min. 750 cycles
- Holding voltage: 1.0 kVdc for 1 minute
- Rhytherminations: Maximum 5 times
- Insulation material: Metallic with high mechanical resistance
- Color: Grey
- Assembly: Insulation perforated termination for quick and easy connections that do not require the use of tools; for solid and flexible conductors from 22 to 26 AWG and maximum cable diameter 9 mm
- Double label with T568A/B connection diagram.
There are no reviews
Data sheet
- Type: Sockets and plugs
