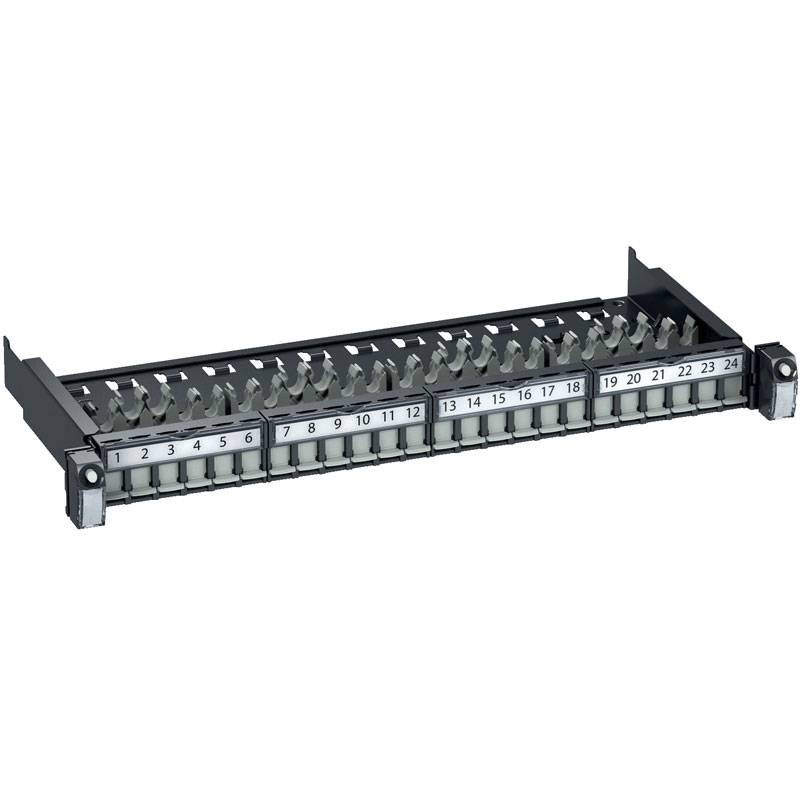

Patch Panel Schneider UTP 19 inch 24 ports vacuum VDIG112241U
SNR VDIG112241U
Schneider UTP 19-inch Patch Panel with the following features:
- Number of fibers supported: 24 UTP
- Category: 5e - 6
- Mounting bracket: 19" rack
- Number of rack units: 1U
- Connector type: S-Uno
- Material: DC01 sheet metal 1.2 mm - PA6 plastic part - PA66 GF20 plastic part
- Dimensions: height 45 mm width 490 mm depth 230 mm weight 2.4 kg
€76.26
Out of stock
Incoming
The 19-inch rack can support unshielded 24S-OneRJ45 connectors in 1U height.
It has a quick-fix feature on both sides to enable easy attachment in the rack. It also has a sliding feature to have access to RJ45 attachment via the front of the panel.
RJ45 connectors can be easily attached via the latching function. It has 24 light gray colored shutters to protect the unused port. There are other shutter colors so that ports can be identified by color.
4 labels are provided for identification of each door, protected by a transparent label holder. 2 dedicated labels are provided on each side for panel identification inside the rack.
The labels are accompanied, maintained and protected by transparent label holders. Advanced rear cable management feature allows each cable to be secured easily and securely.
Equipment provided:
- 1 cable organizer
- 24 gray dust flaps
- 2 quick fixes for 19" uprights
- 4 labels
Data sheet
- Type: Patch panels
- Doors: 24
