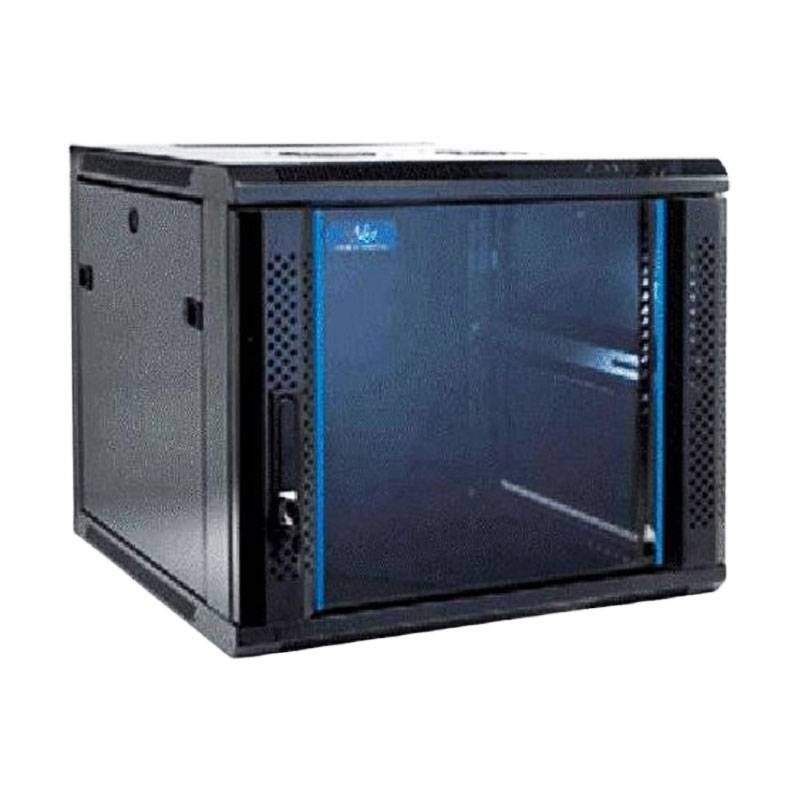

4 Power Wall mounted rack cabinet 6U 19" AP9004 IP20 600x450x368 mm AP900406U6X4
4PW AP900406U6X4
4 Power wall-mounted rack cabinet, structure can be inspected and disassembled, tempered smoked glass door with key lock, with the following features:
-
Rack format: 19 6 units
-
Structure: Inspectionable and demountable
-
Front door: Tempered smoked glass, reversible
-
Side walls: Removable with lock provision
-
Uprights: Adjustable in depth
-
Cable entry: On roof and base
-
Fan holes: 120 mm on roof (optional)
-
Static load capacity: 60 kg
-
Degree of protection: IP20
-
Color: Black
-
Dimensions: 600x450x368 mm
€138.35
Items Available: 5
: 1
Compact, secure, professional 4 Power rack cabinet
The AP9004 series 6U wall-mount rack cabinet is designed for IT and networking solutions where floor space is limited. Perfect for installations in enterprise environments, server rooms, video surveillance and telecommunications, it offers structural robustness and ease of installation.
Maximum accessibility and device protection
Removable and inspectable structure facilitates component assembly and cable management. Removable side walls, lockable tempered glass door, and provision for cooling fans ensure quick access, efficient ventilation, and protection against unauthorized access.
Designed for durability
Made of epoxy powder-coated steel, the cabinet provides corrosion resistance and stability. Complies with international standards ANSI/EIA RS-310-D, DIN41494, IEC297-2.
Technical Specifications Rack 4 Power Cabinet
Structure and Dimensions
| Parameter | Value |
|---|---|
| Format | 19" Rack |
| Available Units | 6U |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 368 mm |
| Color | Black RAL 9004 |
| Structure | Removable, inspectable |
| Mounting | Wall-mounted with bracket included |
| Static load capacity | 60 kg |
Construction Elements
| Parameter | Value |
|---|---|
| Front door | Tempered smoked glass, reversible |
| Side walls | Removable with optional lock |
| Closure | Retractable handle with key |
Ventilation and Wiring
| Parameter | Value |
|---|---|
| Cooling | Holes for 2 120 mm fans (optional) |
| Cable inputs | Roof and base |
Protection and Standards
| Parameter | Value |
|---|---|
| Degree of protection | IP20 |
| Certifications | IEC-297-1, ANSI/EIA, DIN |
There are no reviews
Data sheet
- Type: Rack cabinets
