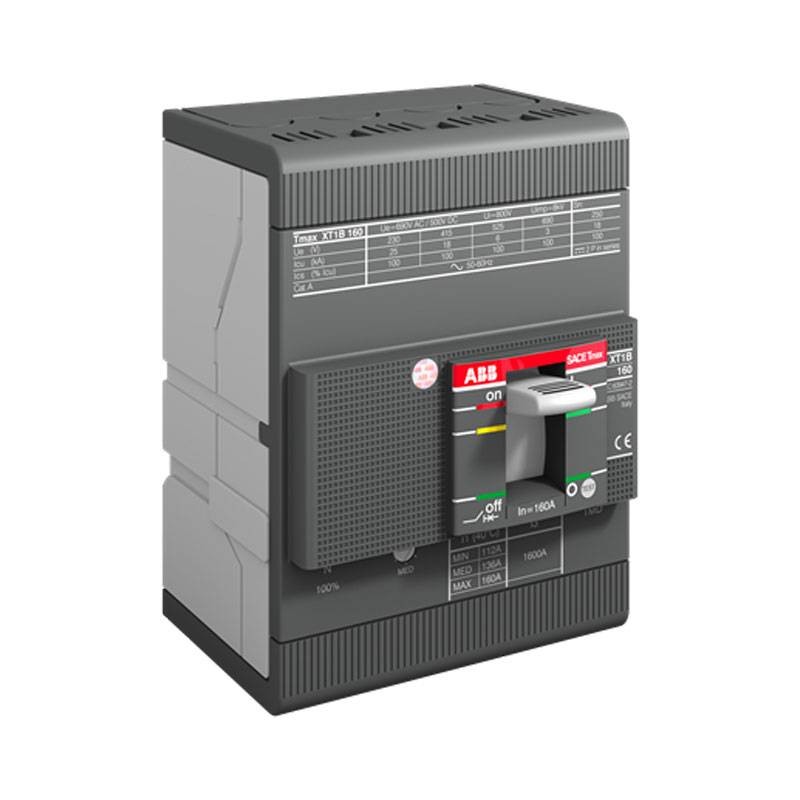

Abb fixed switch TMAX XT1B 160 TMD 80-800 4 Poles XT1B80TMD4
ABB XT1B80TMD4
8015644694531
Abb TMAX XT1B 160 TMD 80-800 fixed switch:
- Tetrapolar
- With front terminals and thermomagnetic releases TDM R 80-800A
- Number of poles: 4
- Product type: CB
- Rated current (In): 80A
- Rated frequency (f): 50 / 60 Hz
- Rated voltage (Ur): 690 V
- Impulse withstand voltage (Uimp): 8 kV
- Rated instantaneous short-circuit current setting (Ii): 800A
- Rated insulation voltage (Ui): 800V
- Rated operating voltage: 690V AC - 500 VDC
Abb fixed switch TMAX XT1B 160 TMD 80-800 4 Poles XT1B80TMD4
€171.85
€171.85
Tax included
Tax included
Pay in installments with Klarna
Items Available: 14
Further Abb circuit breaker combinations:
Frequently bought together
Features:
- Dimensions: Width: 101.6 mm - Height: 130 mm - Depth: 70 mm
- Product net weight: 1.376 kg
- Type of switch to be associated with: Power Distribution
- Type of current: AC/DC
- Electrical Endurance: 120 cycles per hour - 8000 cycle(s)
- Mechanical life span: No. Operations 240 cycles per hour - No. Operations 25000 cycle(s)
- Opening duration: CB with SOR 15 ms - CB with UVR 15 ms
- Power loss: at Nominal Operating Conditions per pole 4.8W
- Main Product Type: SACE Tmax XT
- Product Name: Molded Case Circuit Breaker
There are no reviews
Data sheet
- Type:
- Switches
- Poles:
- 4P
- Amps:
- 80A
