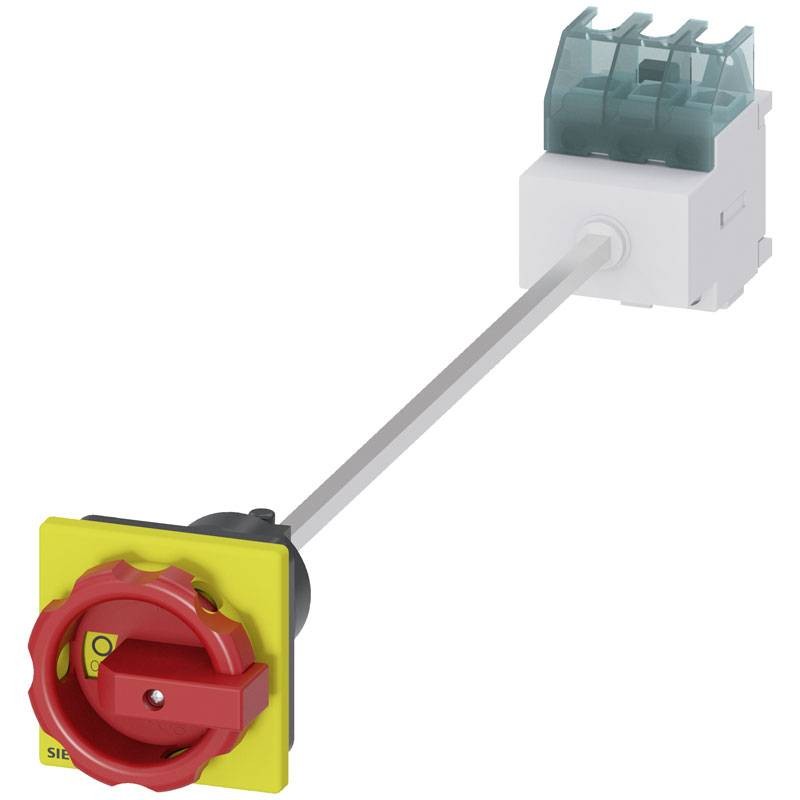

Siemens Sentron 32A 3P IP65 Emergency Stop Switch Disconnector 3LD22130TK53
SIE 3LD22130TK53
4011209403031
Siemens Sentron switch disconnector emergency stop:
- 32A operating current
- 3 Poles
- IP65 degree of protection
- Display execution for indication of switching position Manual operation 1 ON - 0 OFF
- AC-23 A with 400 V: 11.5 kW
- Base mounting with door lock
- Rotary control
- Red/yellow
- 4-hole fixing of the operator
€51.77
Items Available: 21
: 1
Further Siemens circuit breaker combinations:
Features:
- Number of poles 3
- Design size of the underload disconnect switch 2
- Mechanical service life (switching cycles) typ. 100 000
- Electrical service life (switching cycles) with AC-23 A with 690 V 6 000
- Switching frequency max. 50 1/h
- Pollution degree 3
- Insulation voltage rated value 690 V
- Impulse withstand voltage rated value 6 kV
- Utilization voltage with AC rated value 690 V
- Frequency of use rated value min. 50 Hz max. 60 Hz
- Power dissipation W with current rating value with AC in hot operating state for each pole 1.8 W
There are no reviews
Data sheet
- Type: Handle switch disconnectors
- Poles: 3P
- Amps: 32A
