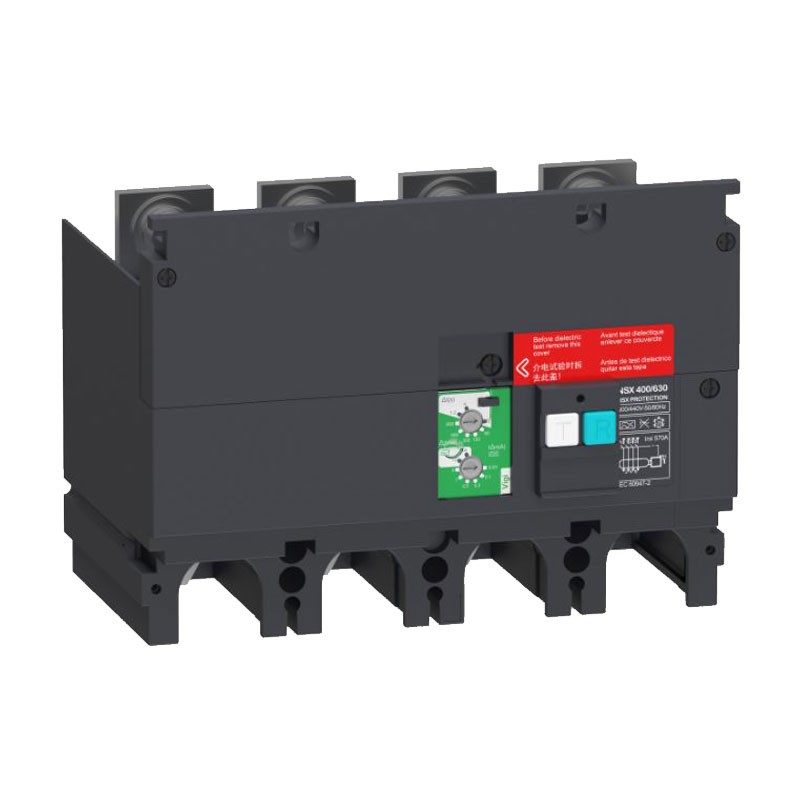

Schneider VigiPacT 200/440Vac 4P Differential Block LV432465
SNR LV432465
3606481298669
Schneider VigiPacT 200/440Vac Differential Block with the following features:
- 4 Poles
- Rated current In 400V/630V
- A/AC differential protection type
- Adjustable residual differential sensitivity adjustment type
- Adjustable residual earth fault delay type.
€1,138.15
Items Available: 6
Frequently bought together
Differential sensitivity
- 0.03 A for class A
- 0.1 A for class A
- 0.3 A for class A
- 0.5 A for class A
- 1 A for class A
- 3 A for class A
- 10 A for class AC
- 30 A for class AC.
Characteristics:
- Adjustable residual ground fault delay type
- Mains type "AC
- 50/60 Hz" mains frequency
- Rated operational voltage Ue 200...440 V "AC" "50/60 Hz" compliant with IEC 60947-2
- Differential protection With
- Maximum breaking time 800 ms
- Overvoltage category IV
Differential residual timing
- 0 ms
- 60 ms
- 150 ms
- 300 ms
- 500 ms
- 800 ms
- 1,2 s
- 4 s.
There are no reviews
Data sheet
- Type: Earth Leakage add-on Blocks
- Poles: 4P
- Amps: 400A
630A
