Schneider circuit breaker 100A 4P 16kA 6M NG125a 18608


SNR 18608 3303430186083

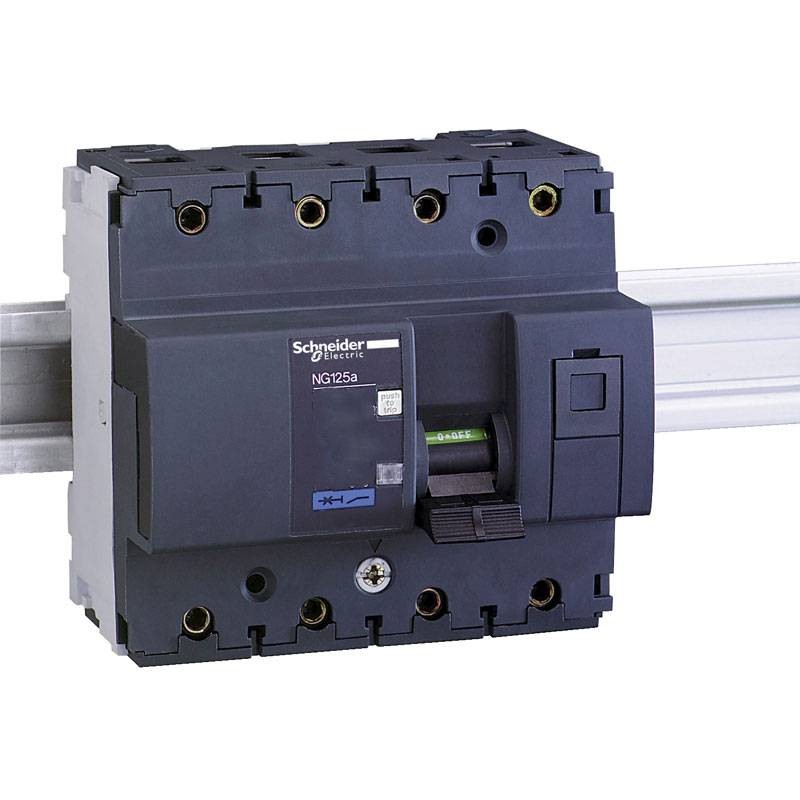

Schneider NG125a thermal-magnetic circuit breaker with the following characteristics:

  • Number of poles: 4P
  • Number of poles protected: 4
  • Number of modules: 6
  • Rated current: 100 A at 40 °C
  • Network type: AC - DC
  • Trip technology: magneto thermal switch
  • Curve C
  • Rated insulation voltage: 690V AC 50/60 Hz
  • Rated impulse withstand voltage: 8 kV
  • IP degree of protection: IP20
  • Degree of protection IK: IK05
Request info about this product

Schneider circuit breaker 100A 4P 16kA 6M NG125a 18608

€238.41
€238.41

Schneider circuit breaker 100A 4P 16kA 6M NG125a 18608

€238.41
Tax included
klarna Pay in installments with Klarna
qty

Schneider circuit breaker 100A 4P 16kA 6M NG125a 18608

€238.41

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

Acti9 NG125 is a low-voltage circuit breaker. It is a 4P circuit breaker with 4 protected poles and 100A rated current In and trip curve C. The rated short-circuit breaking capacity is up to 16 kA from 380VAC to 415VAC in accordance with EN/IEC 60947-2. It complies with industrial standards EN/IEC 60898-1 and residential standards EN/IEC 60947-2. This miniature circuit breaker protects circuits from short circuits and overload current.

It is suitable for isolation in the industrial sector according to IEC/EN 60947-2. Trip on failure is indicated by a red mechanical indicator light on the front of the switch. It has an electrical resistance of up to 5000 cycles and a mechanical resistance of up to 20000 cycles. The operating voltage Ue changes from 380VAC to 415V AC. The rated insulation voltage Ui is 690V AC. The rated impulse withstand voltage Uimp is 8 kV. The operating frequency is 50 Hz or 60 Hz.

It is DIN rail installable. Its width is 12 steps of 9 mm. The pollution degree is 3. The overvoltage category is IV. The total dimensions are (H) 108 mm x (W) 103 mm x (D) 81 mm. The weight is 0.96 kg. According to IEC 60529, the degree of protection is IP20 and IP40 in the cabinet. The operating temperature is between -30°C and 70°C. The storage temperature is between -40°C and 70°C.

Curve C, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic installations.

A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.

Characteristics:

  • Breaking capacity: 16 KA 8KA 20 KA
  • Rated operating voltage: 380/415 V AC 50/60 Hz - 500 V AC 50/60 Hz
  • Local signaling ON/OFF indication
  • Trip indicator
  • Mounting bracket 35 mm symmetrical DIN rail
  • 9 mm steps: 12
  • Mechanical life: 20000 cycles
  • Electrical life: 5000 cycles
  • Tightening torque: 6 Nm
  • Operating ambient temperature: -30/+70 °C
  • Storage temperature -40/+70 °C

Data sheet

Type:
Switches
Modules:
6
Poles:
4P
Power:
16KA
Degree of protection:
IP20
Amps:
100A
