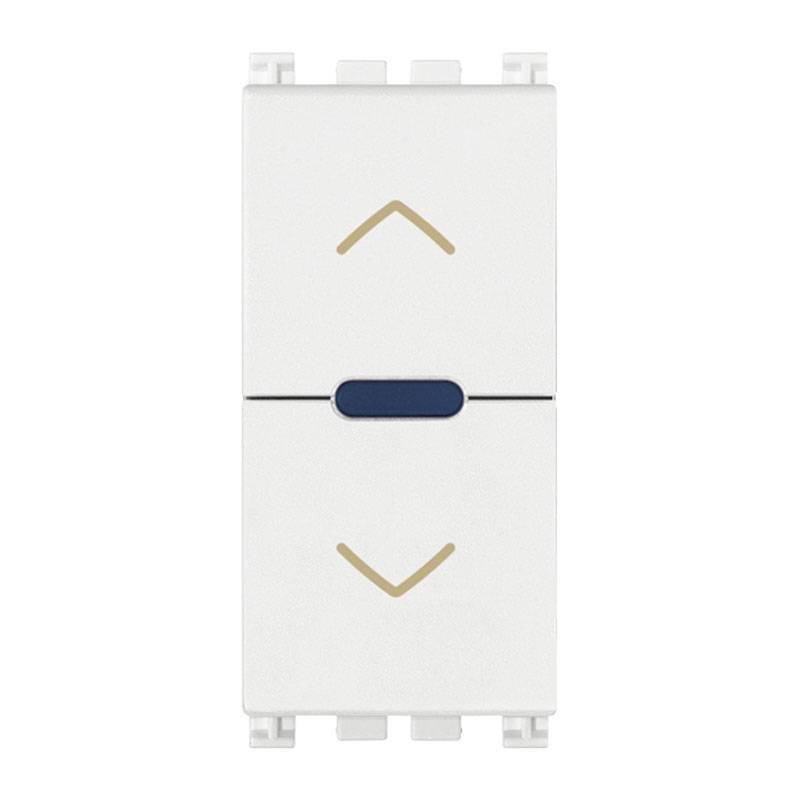

Vimar Arkè Quid roller shutter switch white 19196.B
VIW 19196.B
8007352623095
Centralizable electronic switch for Quid Vimar Arkè series rolling shutters, with slat orientation with relay outputs for motor cos 0.6 2 A 220-240 V~ 50/60 Hz, position memorization, color white.
Accessories to be purchased separately codes: 03992 - 03997 - 19613 - 19913 - 19614 - 19914 - 19617 - 19917.
Vimar Arkè Quid roller shutter switch white 19196.B
€37.06
€37.06
Tax included
Tax included
Pay in installments with Klarna
Items Available: 21
Frequently bought together
Features:
- Rated supply voltage: 220 240 V~ 50/60 Hz
- Power consumption: 13 mA
- Relay output
- Switchable loads at 220-240 V~: - motors cos ø 0.6: 2 A (20,000 cycles)
- Double push-button
- Led for load status indication and programming.
- Number of shutters that can be connected: max 20
- Max length of cables for each leg: 50 m
Feasible functions:
- adjustment of the shutter/awning position
- adjustment of slat position
- memorization and recall of the preferred position of the shutter/tent from any initial position
- control by interlocked or non-interlocked double button.
There are no reviews
Data sheet
- Main Commands:
- Rolling shutters
