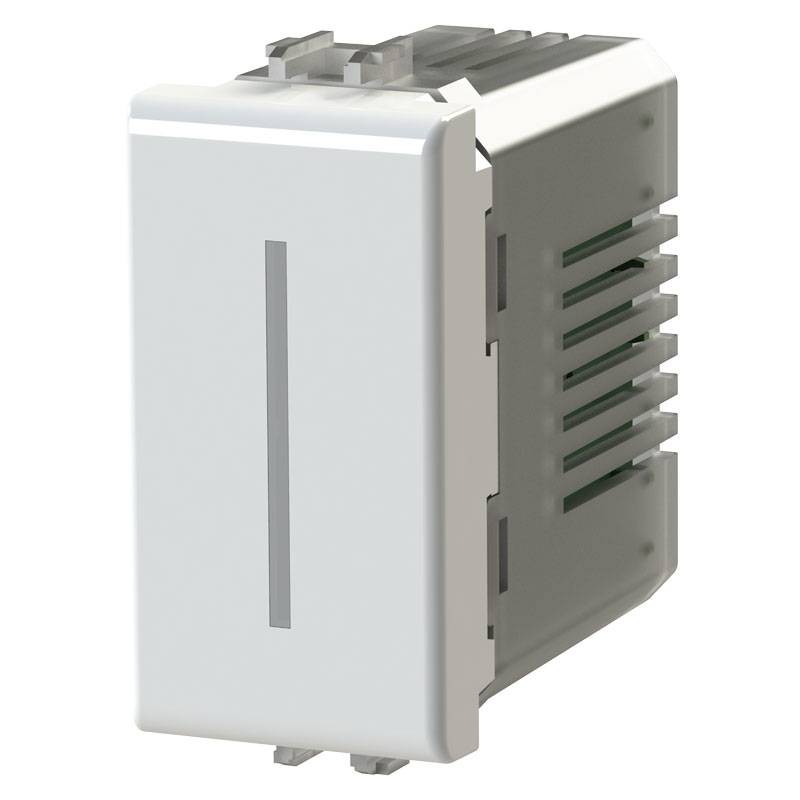

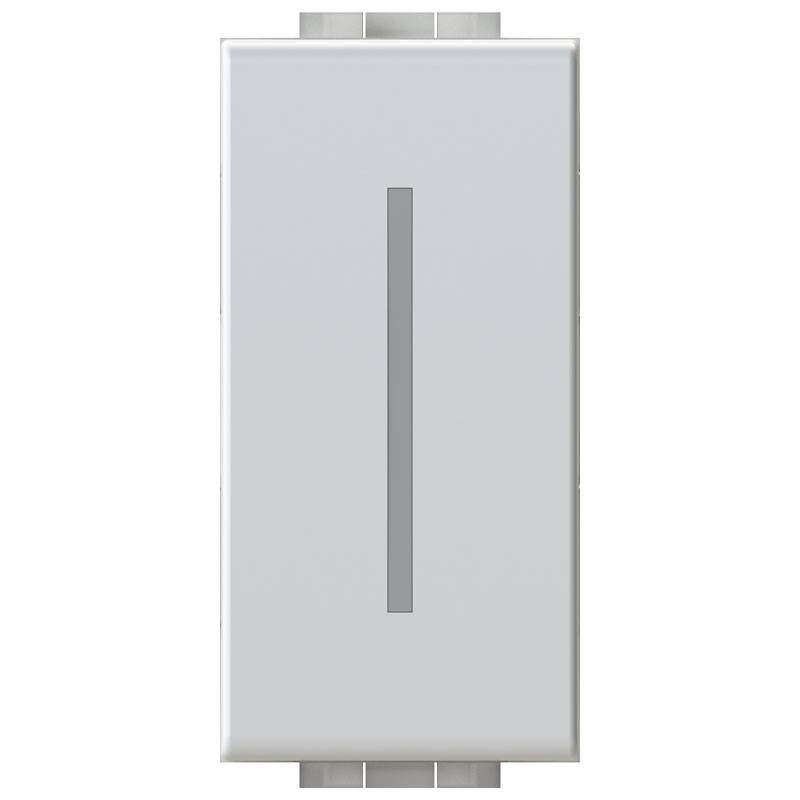

Uniko Pro S is the new multifunction product from 4box. In addition to the functions already present in the version, Lite allows the control of two light points, and more. Thanks to its two on-board relays, it can control the motor of roller shutters or blinds, allowing you automated management, even outside the home.



Scope of application:



Uniko Pro Smart can be programmed to have functions of:

• Single button
• Double button
• Motor control



It can be controlled via Smartphone or via voice assistant App.



Components:

• Load/motor on/off button with signal LED (present in Fruit button version)
• Load/motor on/off button with signaling LED (present in Fruit button version)
• Terminals I1 and I2 for optional push button inputs
• O1 and O2 terminals returning device phase for load connection
• L terminals for input phase not to be used to shunt other loads from the network
• Terminal N neutral



Main features of Uniko Pro Smart:

• Recessed mounting
• Material: thermoplastic
• RGB lighting
• Degree of protection: IP40
• Screw terminals
• Operating voltage 100V 240V /50-60Hz
• Maximum Current 5A + 5A
• Maximum Power 2300W
• WiFI/BLE Radio Technology
• Operating Frequency 2.4 GHz
• Standby consumption 1 Wh
• Dimensions 47x21.8x43.50 mm



Everything you need in one product:

• Several functions, one control, that's the strength of Uniko Pro S. On board we find two RGB status LEDs, two relays (2x 5A) that allow you to control as many as 2 light points, or a shutter. With Wi-Fi and Bluetooth antenna you can take advantage of these functions not only locally but also via Apps and voice assistants. In addition to all this Uniko Pro S allows via App to keep track of consumption by displaying it in real time.



More intuitive:

• Uniko Pro S is a multifunction (axial) control. The rear IN1 and IN2 connectors allow the connection of other non-smart controls. The rear NO1 and NO2 connectors, on the other hand, allow the output connection of lines with separate neutrals. Finally, the neutral phase connectors allow connection to the power line present in the manhole.



Uniko Pro S, magic or almost!

• Basic features of Uniko Pro S include bistable control (which allows the product to be used as a switch, diverter, or inverter) and monostable control (push-button function). In both cases it can act on 2 lights or the motor of roller shutters or blinds. To top it off, Uniko Pro S allows management of lighting scenarios, enabling you to always have the right atmosphere with a simple voice command.
