4Box P503 5 Outlets Socket compatible Bticino Livinglight White 4BP503.N
4BX 4BP503.N
8053839323910

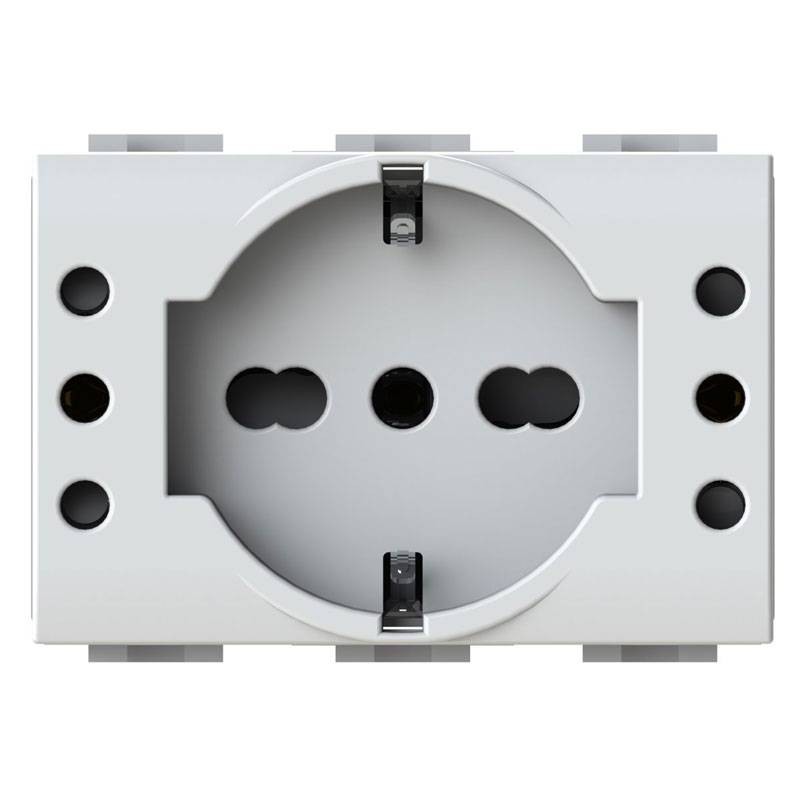

4Box P503 socket compatible with Bticino LivingLight series White color consisting of 1 schuko, 2 10A sockets and 1 10/16 A socket.
With a single power terminal and faster to install and requires no masonry work. The new standard for 3-module boxes.
- Four sockets in one, one schuko or three two-pin sockets
- No adapter required
- One terminal for quick and easy installation
- Compatible with most popular civilian series
4Box P503 5 Outlets Socket compatible Bticino Livinglight White 4BP503.N
€14.55
€14.55
Tax included
Tax included
Pay in installments with Klarna
Items Available: 97
Main features of the P503 socket:
- Rated voltage: 230V ~
- Rated current: 10A - 16A
- Active shielded receptacles
- Interrupting power: 50 cycles (plug insertion and disconnection) 275 V ~ cos 0.6 (12.5A and 20A)
- Electrical life: > 5,000 cycles (plug insertion and disconnection) with rated current and voltages at cos 0.8
- Differentiated elastic cavities
- Weight 63 grams
- Dimensions 4.66 × 6.60 × 4.66 cm
Scope of application:
- Power supply of household appliances, mobile lighting fixtures, etc.
P503 compliance:
- Multi-standard product
- Product manufactured in accordance with IEC Standard 23-50/2007 +V1/2008 + V2/2011 + V3/2015 + v4/2015

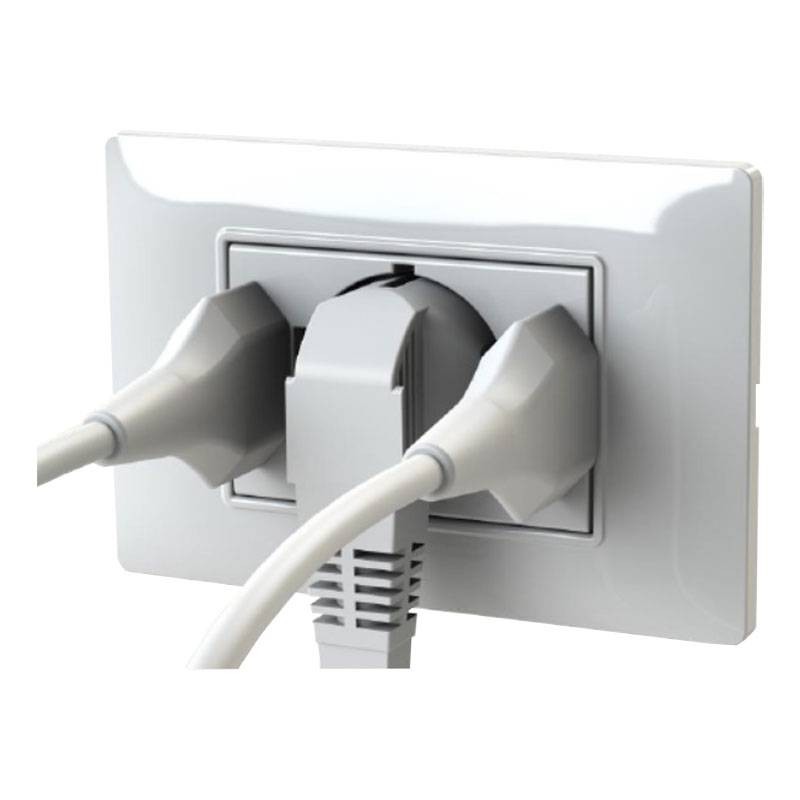

P503 makes it possible to optimize the available space by offering the best possible performance in terms of application solutions. Compared to traditional solutions with side-by-side sockets, P503 ensures a better visual impact by eliminating spaces between sockets and greatly improving the aesthetics of the socket point.
Data sheet
- Main Commands:
- Power Sockets
