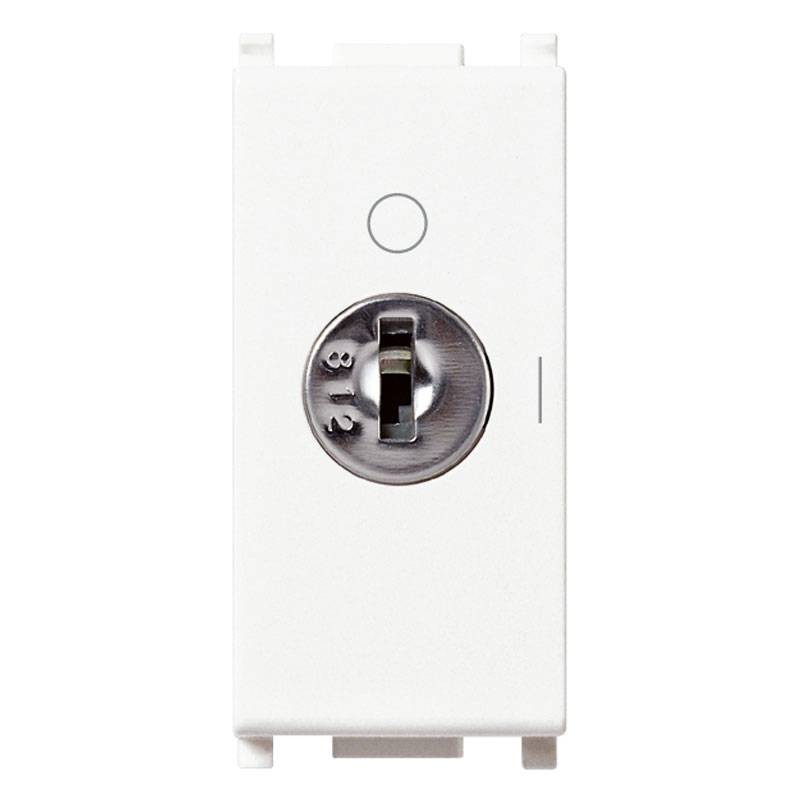

Vimar Plana 2P 16AX switch with key White 1 module 14083
VIW 14083
8007352108691
Vimar Plana switch with two keys supplied. Ideal for safe control of circuits in civil or technical environments. Compatible with Plana series holders and plates, with the following features:
-
Control type: Key operated (2 keys included)
-
Bipolar switch: Disconnects both poles
-
Rated current: 16AX 250V
-
Modularity: 1 module
-
Color: Glossy white
-
Degree of protection: IP40
-
Installation: Recessed on Plana series supports
€37.26
Items Available: 71
: 10
Vimal Plana switch security and control with key switch
The Vimar Plana switch is the ideal solution for ensuring exclusive control of electrical devices in restricted areas or in the presence of non-technical personnel. Thanks to the key locking system, it enables or disables the circuit preventing accidental or unauthorized activations.
16AX double-pole switch perfect for high loads
Thanks to its 2P (double-pole) configuration, the switch simultaneously interrupts phase and neutral, making it suitable even for large loads such as washing machines, ovens, motors and technical panels. Compliant with IEC standards, it ensures reliability and electrical safety.
Elegant design and compatibility with Plana
Made of glossy white thermoplastic material, the device integrates perfectly with Vimar's Plana civilian series. It installs on standard supports and is compatible with coordinated plates, making the aesthetic result elegant and modern.
Recommended applications
-
Technical panels and plant rooms
-
Reserved controls in civil environments
-
Controlled activation of washing machines or household appliances
-
Alarm or automation systems
Technical Specifications Vimar Plana switch
| Parameter | Value |
|---|---|
| Series | Vimar Plana |
| Type | 2P key switch |
| Rated current | 16 AX |
| Rated voltage | 250 V |
| Control | Key operated (2 keys included) |
| Mounting | Recessed |
| IP protection | IP40 |
| Material | Halogen-free thermoplastic |
| Color | White RAL 9003 |

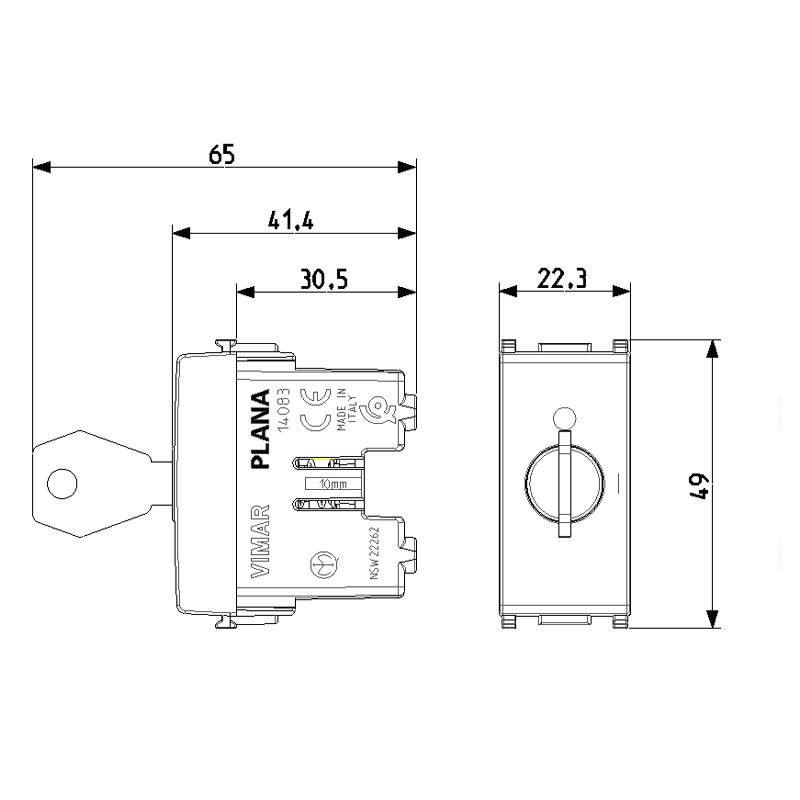

| Dimensions (W x H x D) | 22.3 x 49 x 41.4 mm |
| Recessed depth | 30.5 mm |

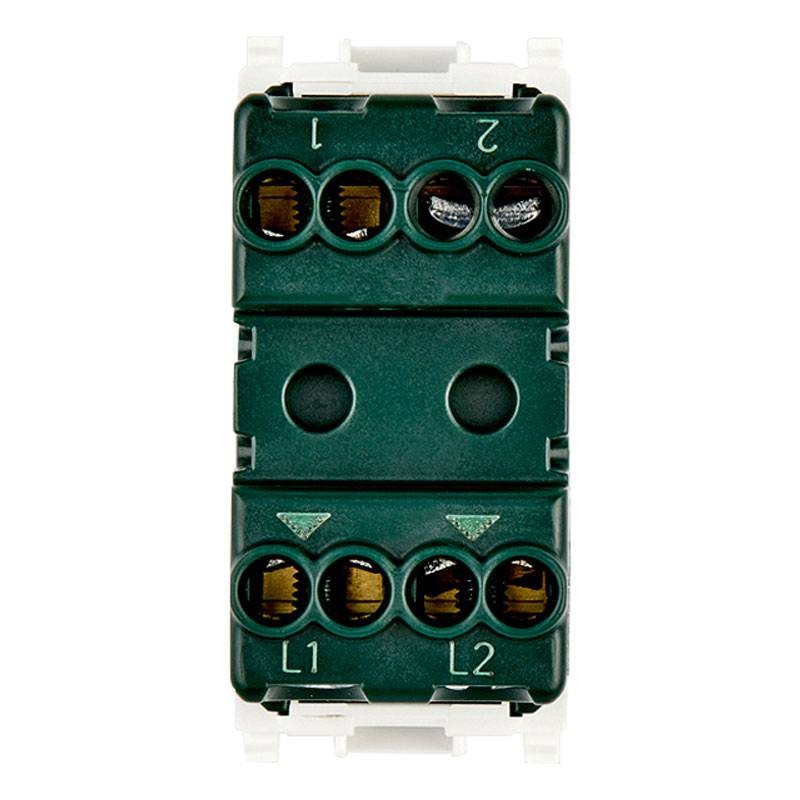

| Connection | Screw terminals |
| Compatibility | Vimar Plana plates and holders |
