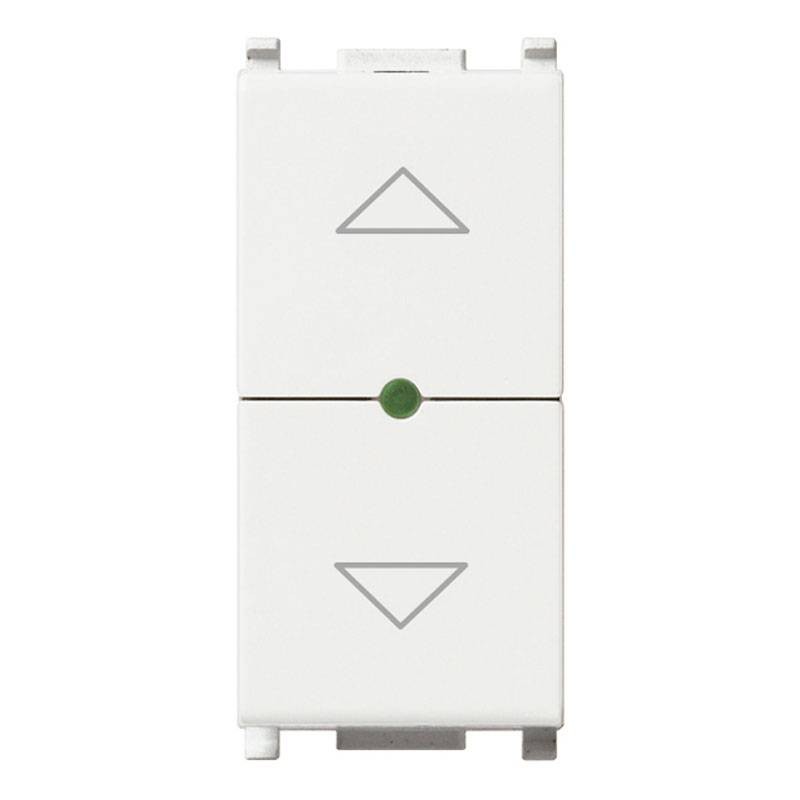

Vimar Plana Roller shutter switch Quid white 14196
VIW 14196
8007352623033
The electronic switch Quid Vimar Plana 14196 white is the ideal solution for managing electric shutters, with position memory functions, slat orientation, and centralization capability.
-
Device type: Electronic switch for shutters
-
Function: Up/down control and slat orientation
-
Nominal voltage: 220/240 V~ 50/60 Hz
-
Relay outputs: for motor cos 0.6 2A
-
Memory function: Programmable intermediate position
-
Colour: Glossy white
-
Material: High-quality technopolymer
-
Frame compatibility: 14613, 14614, 14617
-
Plate compatibility: Vimar Plana and Plana Up series
-
Compatible accessories: Relay module with reset Quid 10A (code 03992) - Central Quid roller shutter module (code 03997)
€36.10
Items Available: 69
: 3
Frequently bought together
Roller shutter switch Quid Vimar Plana for innovative control
The roller shutter switch Quid Vimar Plana 14196 is an innovative electronic device, designed for precise control of motorized blinds and shutters. Thanks to Quid technology, it allows slat orientation, intermediate position memory, and integration into centralized or home automation systems.
The integrated relay outputs ensure maximum reliability and motor protection, ensuring smooth and safe movement both up and down.
The memory function allows you to set a preferred shutter position (for example, to adjust natural light or ventilation), which can be recalled with a simple touch.
Expandability and centralized control
The device can operate independently or be integrated into centralized systems thanks to accessory modules:
Relay module with reset Quid (code 03992): allows interconnection between multiple control points. Central Quid roller shutter module (code 03997): allows simultaneous management of multiple shutters with a single central control.
This flexibility makes it ideal for both single homes and multi-zone installations in offices, shops, or residential buildings.
Installation and safety

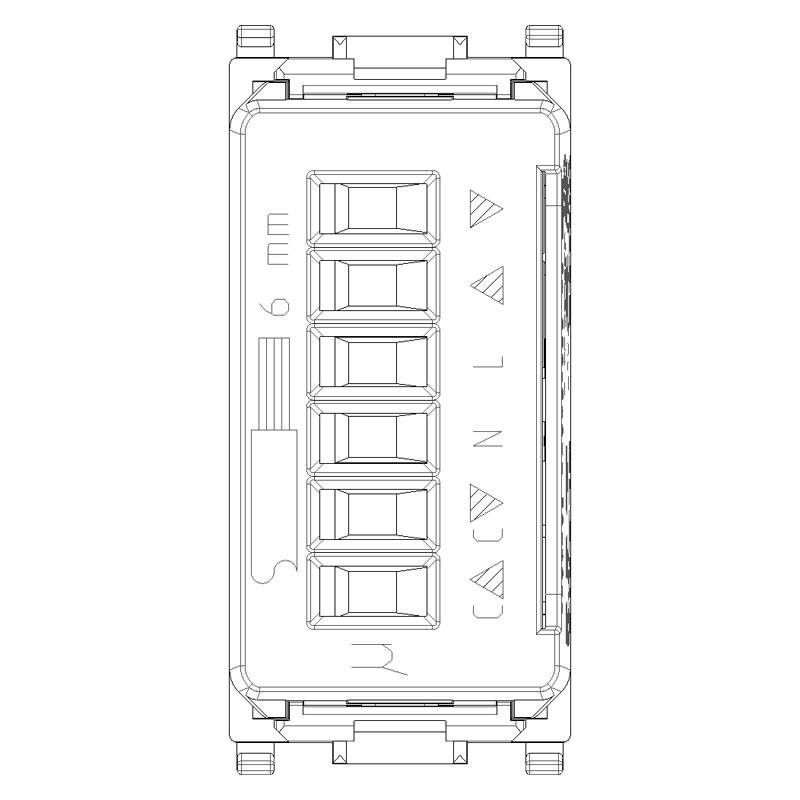

The installation is recessed, compatible with standard 503 boxes, and is easily carried out on frames 14613, 14614, 14617. The electrical connection is made via screw terminals, for a stable and durable connection. The switch is designed for 230V shutter motors with an absorption of up to 2A cos 0.6, ensuring maximum safety and compatibility with the most common motorized systems.
There are no reviews
Data sheet
- Smart System: Roller Shutter Controls
- Main Commands: Rolling shutters
