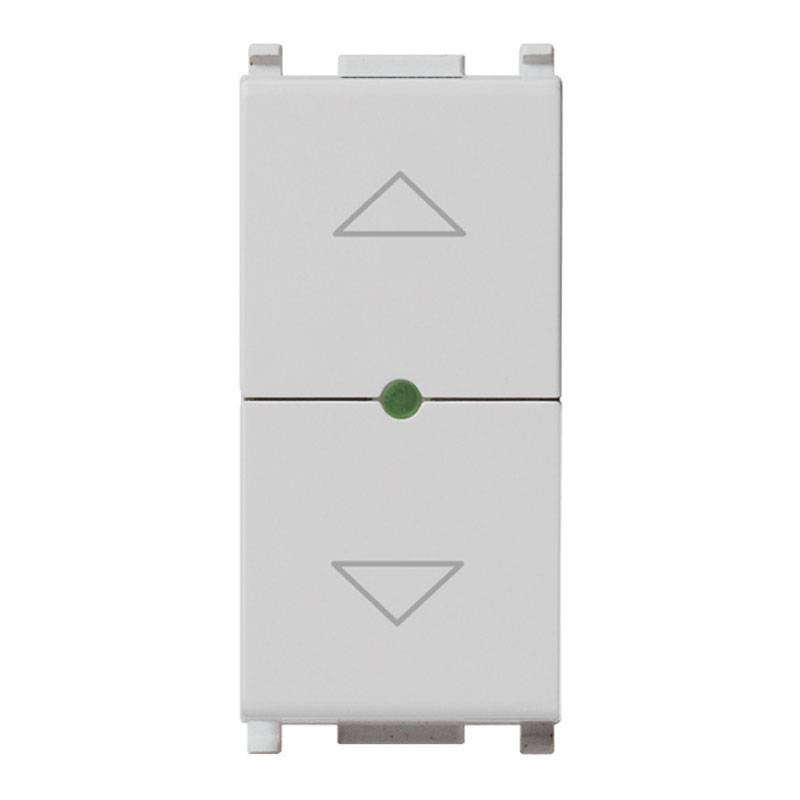

Vimar Plana Roller shutter switch Quid silver 14196.SL
VIW 14196.SL
8007352623057
The electronic switch Quid Vimar Plana 14196.SL silver is the ideal solution for managing electric shutters, with position memory functions, slat orientation, and centralization capability.
-
Device type: Electronic switch for shutters
-
Function: Up/down control and slat orientation
-
Nominal voltage: 220/240 V~ 50/60 Hz
-
Relay outputs: for motor cos 0.6 2A
-
Memory function: Programmable intermediate position
-
Colour: Silver
-
Material: High-quality technopolymer
-
Frame compatibility: 14613, 14614, 14617
-
Plate compatibility: Vimar Plana and Plana Up series
-
Compatible accessories: Relay module with reset system Quid 10A (code 03992) - Central module Quid shutters (code 03997)
€39.00
Items Available: 10
: 9
Frequently bought together
Roller shutter switch Quid Vimar Plana for innovative control
The roller shutter switch Quid Vimar Plana 14196.SL is an innovative electronic device, designed for precise control of motorized blinds and shutters. Thanks to Quid technology, it allows slat orientation, intermediate position memory, and integration into centralized or home automation systems.
The integrated relay outputs ensure maximum reliability and motor protection, providing smooth and safe movement both upwards and downwards.
The memory function allows setting a preferred shutter position (for example, to adjust natural light or ventilation), which can be recalled with a simple touch.
Expandability and centralized control
The device can operate independently or be integrated into centralized systems thanks to accessory modules:
Relay module with reset system Quid (code 03992): allows interconnection between multiple control points. Central module Quid shutters (code 03997): enables simultaneous management of multiple shutters with a single central control.
This flexibility makes it ideal for both single homes and multi-zone installations in offices, shops, or residential buildings.
Installation and safety

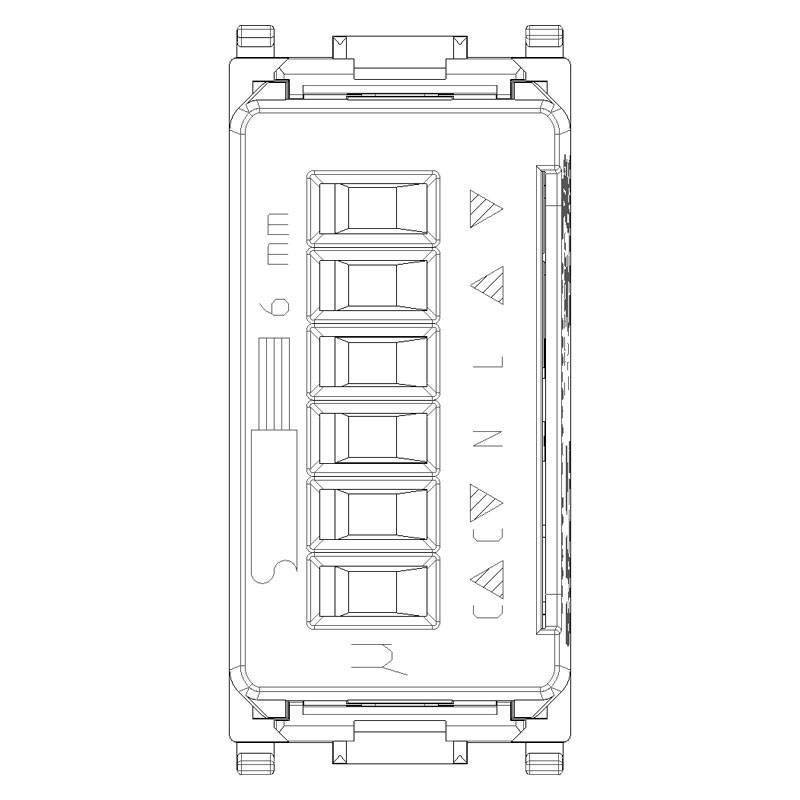

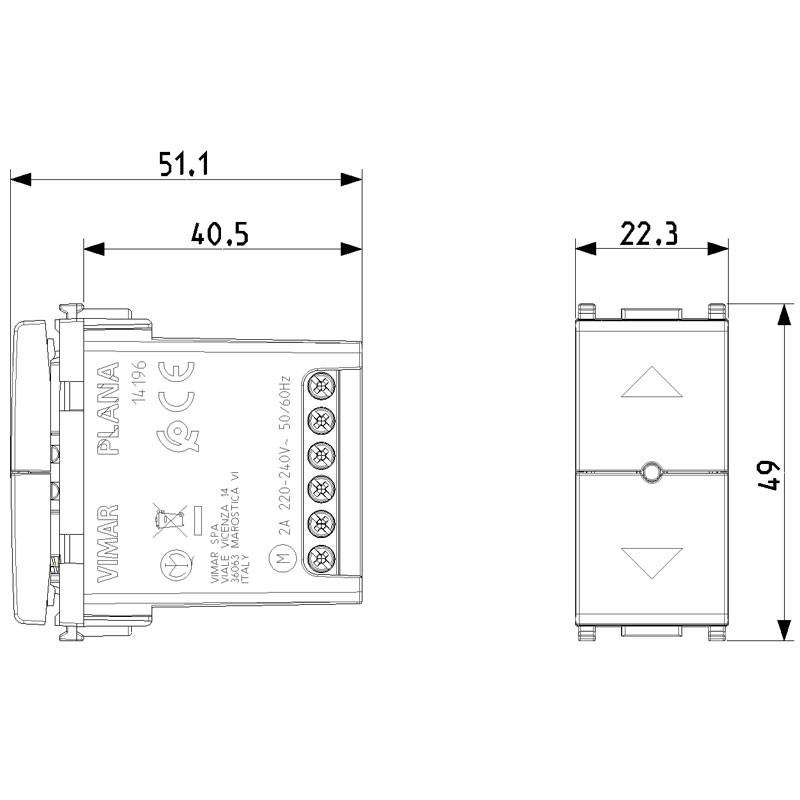

The installation is recessed, compatible with standard 503 boxes, and is easily carried out on frames 14613, 14614, 14617. The electrical connection is made via screw terminals, ensuring a stable and durable connection. The switch is designed for 230V shutter motors with an absorption of up to 2A cos 0.6, ensuring maximum safety and compatibility with the most common motorized systems.
There are no reviews
Data sheet
- Smart System: Roller Shutter Controls
- Main Commands: Rolling shutters
