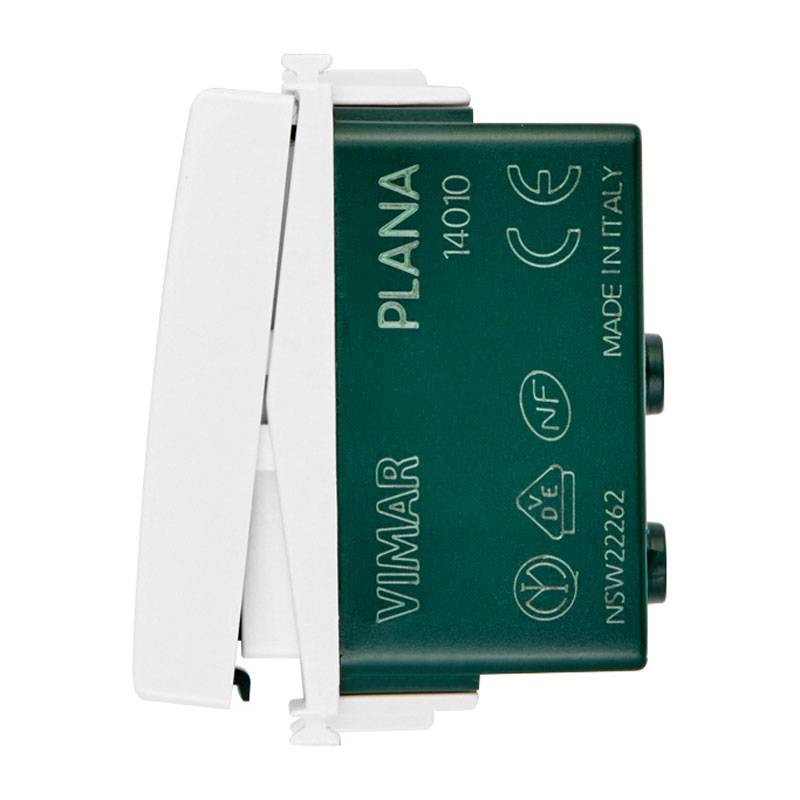

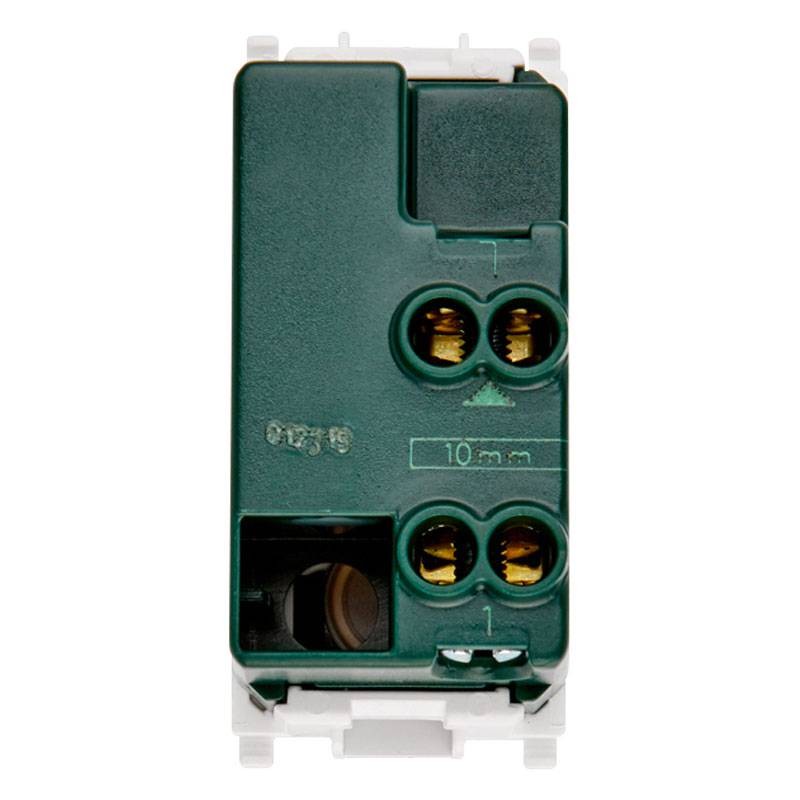

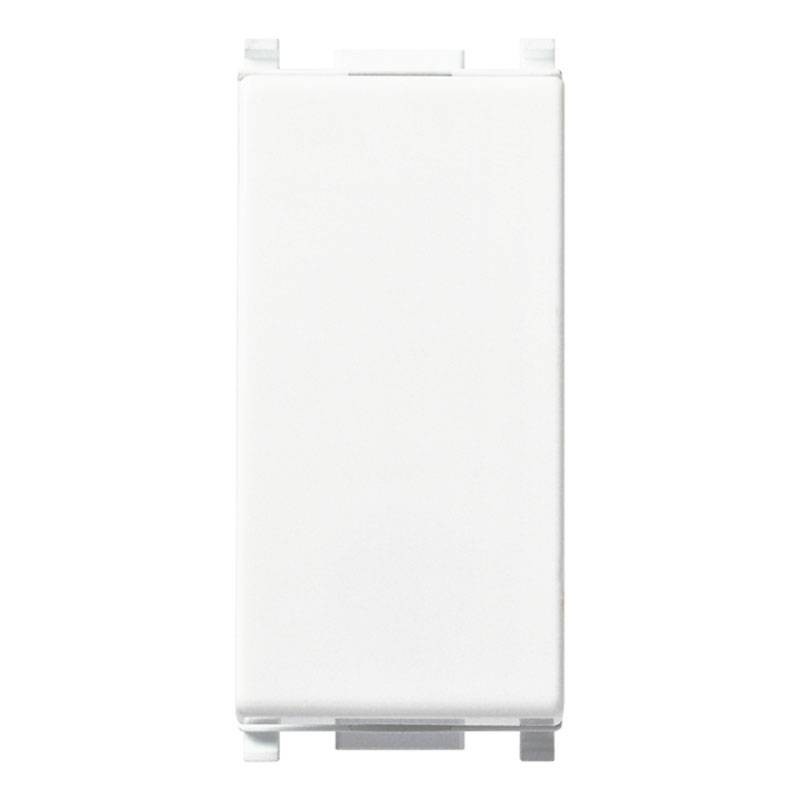

Vimar Plana Button 10A 250V 1P Illuminable White 14010

Vimar
Vimar
VIW 14010 8007352263680

Vimar Plana button, single illuminable button, white color, compatible with modular inserts. Elegant design and guaranteed quality for civil and domestic installations, with the following features:

  • Contact type: 1P NC (normally closed)

  • Rated current: 10 A

  • Rated voltage: 250 V

  • Illuminable: Yes (with accessory)

  • Mounting: Recessed, snap-in mounting

  • Color: White

  • Degree of protection: IP40

Do you have questions about this product or did you not find what you were looking for? Ask us!
Vimar Plana Button 10A 250V 1P Illuminable White 14010
€6.63
€6.63

€6.63
Tax included
Calculate shipping cost
Items Available: 219
Further availability of the manufacturer
€6.63

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Button 1 module Vimar Plana functionality and style

The Vimar Plana pushbutton is a versatile and safe solution for controlling lights, automations or devices in civil electrical systems. It is a normally closed (NC) pushbutton, suitable for applications such as doorbells, intercoms, momentary activation/deactivation of circuits or devices. Modular and compact design (1 module) makes it perfect for integrations in standard boxes.

Illuminable for enhanced visibility

Equipped for internal illumination, this button can be made backlit for easy detection in the dark. An ideal feature for environments such as condominium entrances, stairways or technical rooms.

Elegant design, compatible with the Plana series

The glossy white color and smooth surface made of halogen-free thermoplastic material ensure refined aesthetics and perfect integration with other devices in the Vimar Plana range. Compatible with all Plana plates.

Applications

  • Civil and residential installations

  • Momentary push-button controls (NC)

  • Light control, intercoms, alarms, doorbells

  • Public and private environments

Technical Specifications Vimar Plana Push Button

ParameterValue
Series Vimar Plana
Button type 1P NC
Rated current 10 A
Rated voltage 250 V~
Illuminable Yes
Color White (RAL 9003)
Mounting type Recessed
Mounting type Snap-in
IP Protection IP40
Material Thermoplastic (halogen-free)
Modules 1 module

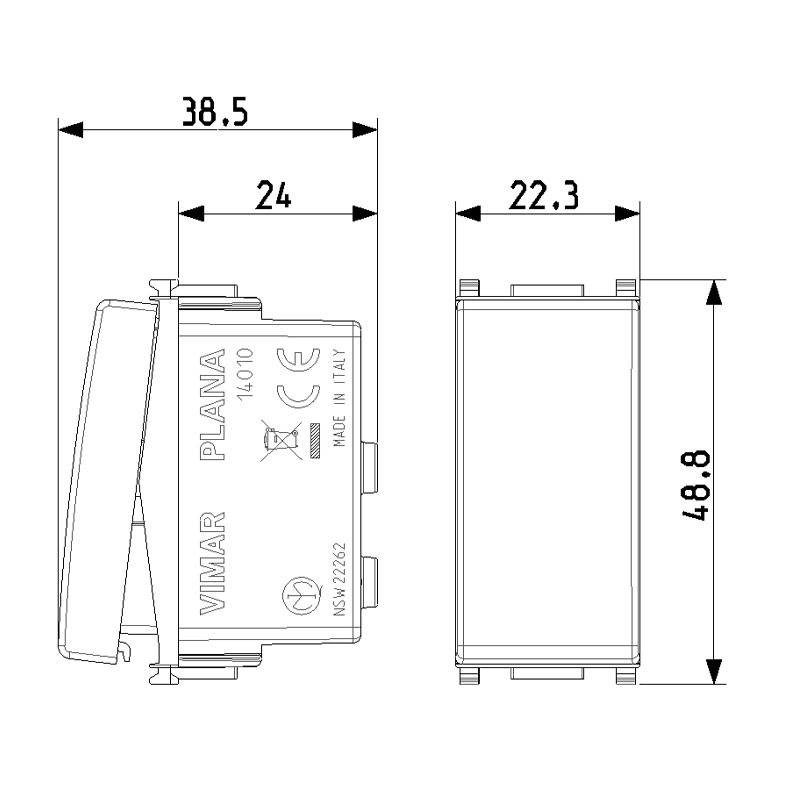

Dimensions (W x H x D) 22.3 x 49 x 38.7 mm

Ottimo prodotto della serie Plana, vedremo quanto dureranno negli anni :D

ma un pulsante non è normalmente aperto ?? quando si aziona mette insieme i due poli per un attimo ? questo forse per comando luce scale non va bene ?!

Prodotto di ottima fattura, come da descrizione.

Read all reviews

Data sheet

Main Commands:
Pushbuttons
