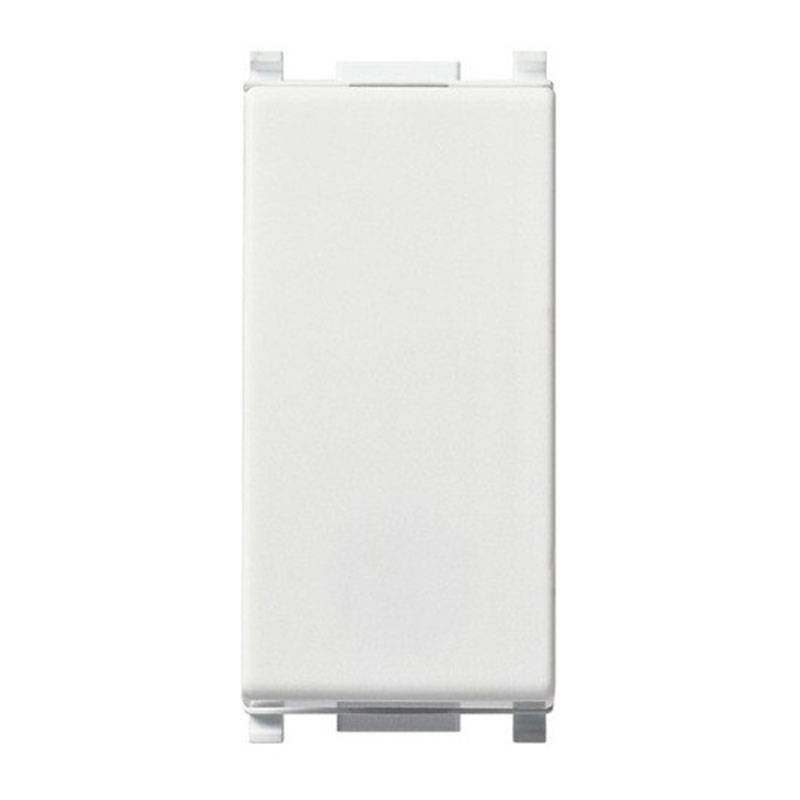

Vimar Plana Axial switch 1P 10AX white 14104
VIW 14104
8007352778849
The axial switch Vimar Plana 1P 10AX white 14104 allows you to control a light point from two different locations. Elegant, reliable, and compatible with the Plana and Plana Up series, it combines design and functionality in a single control.
-
Device type: Axial switch 1 pole
-
Rated voltage: 250V~
-
Rated current: 10AX
-
Illuminable: with LED unit 00936.250.B or 00936.250.A
-
Frame compatibility: 14613, 14614, 14617
-
Colour: Glossy white
-
Material: High-quality technopolymer
-
Connection: Screw terminals
-
Installation: Flush-mounted
-
Protection rating: IP40
-
Reference standard: IEC 60669-1:2017
€4.19
Out of stock
Incoming
Frequently bought together
Axial switch Vimar Plana: Function and use
The axial switch Vimar Plana 14104 allows you to turn a light on or off from two different positions, making it perfect for corridors, bedrooms, stairs, and passage areas. It is an indispensable component when you want to control the same light from two locations, offering convenience and practicality.
The term axial refers to the frontal movement of the mechanism, which operates along the axis of the button back and forth unlike traditional rocker switches. This feature makes the control more ergonomic, precise, and modern.
Design and build quality
Part of the renowned Vimar Plana series, this switch combines clean lines, durable materials, and a glossy finish, perfectly fitting into any environment, whether domestic or professional. The replaceable button allows for customization of the control or quick maintenance without having to replace the entire device.
The glossy white finish integrates harmoniously with any decor style, ensuring an elegant and minimal appearance.
Optional lighting and visibility
The switch can be illuminated through an optional LED unit (code 00936.250.B or 00936.250.A), ideal for locating the control even in the dark or in poorly lit environments. This function is particularly useful in bedrooms, corridors, or entrances, improving nighttime usability.
Installation and compatibility
The switch 14104 is compatible with Vimar frames 14613, 14614, and 14617 and with the plates of the Plana and Plana Up series, ensuring maximum flexibility of integration in new or existing installations. The electrical connection is made via screw terminals, which ensure a stable and secure connection over time. Thanks to its compact design, it is easily installed in standard flush-mounted boxes, maintaining the uniform aesthetics of the electrical system.
Safety and performance
Made of resistant technopolymer, the switch complies with the IEC 60669-1:2017 standard, which guarantees its electrical and mechanical safety. It supports loads up to 100W for lamps with an integrated power supply and can be used with LED or low-consumption lamps. The IP40 protection rating makes it suitable for protected indoor environments.
There are no reviews
Data sheet
- Main Commands: Multiway switches
