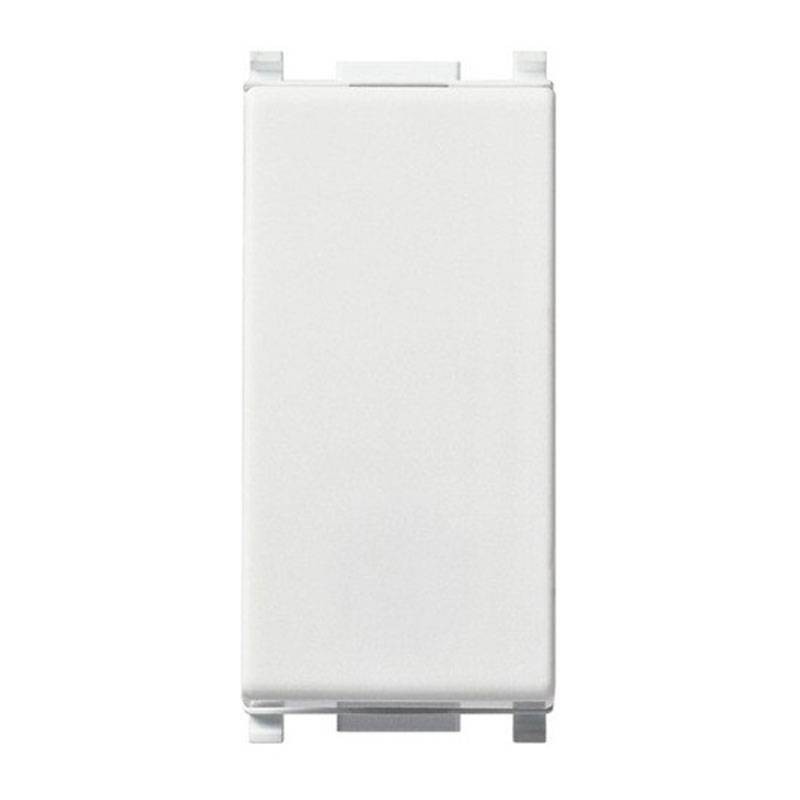

Vimar Plana Axial button 10A 1P NO white 14108
VIW 14108
8007352778931
The axial Vimar Plana 14108 1P NO white button is an elegant and reliable control, ideal for doorbells, relays, and home automation. Compact design, front axial button, and compatibility with Plana and Plana Up plates.
-
Device type: Axial button 1 pole NO (normally open)
-
Rated voltage: 250V~
-
Rated current: 10A
-
Illuminable: with LED unit 00936.250.B or 00936.250.A
-
Frame compatibility: 14613, 14614, 14617
-
Compatible plates: Vimar Plana and Plana Up
-
Colour: Glossy white
-
Material: High-quality technopolymer
-
Connection: Screw terminals
-
Installation: Flush-mounted
-
Protection rating: IP40
-
Reference standard: IEC 60669-1:2017
€4.45
Out of stock
Incoming
Frequently bought together
Axial button Vimar Plana: Function and use
The axial button Vimar Plana 14108 is designed to control doorbells, relays, or temporary electrical devices. It is a normally open (NO) button: when pressed, it closes the electrical circuit and, thanks to the return spring, immediately returns to the initial position upon release.
The term axial indicates the movement of the mechanism along the axis of the button in a front direction, back and forth unlike traditional rocker switches. This type of actuation is more precise, ergonomic, and modern, ensuring an immediate and smooth response.
Design and aesthetic quality
Belonging to the Vimar Plana series, the button 14108 stands out for its essential and refined design, with a glossy white finish that integrates perfectly into any context: modern, classic, or professional. The replaceable key allows for customization of the control and quick and practical maintenance interventions.
Optional lighting
It can be illuminated through an optional LED module (codes 00936.250.B or 00936.250.A), useful for identifying its position even in poorly lit environments, such as entrances, corridors, or common areas.
Simple installation and universal compatibility
The electrical connection is made via screw terminals, ensuring a stable and lasting connection. It is compatible with Vimar Plana frames (14613, 14614, 14617) and with the plates of the Plana and Plana Up series, ensuring maximum aesthetic uniformity throughout the electrical system. The flush installation and compatibility with standard 503 boxes make this button ideal for both new constructions and renovations.
Safety and reliability
Made of self-extinguishing technopolymer, the button complies with the IEC 60669-1:2017 standard, certifying its electrical safety and construction quality. The IP40 protection rating makes it suitable for protected indoor environments, while the 10A at 250V capacity makes it compatible with a wide range of civil and residential installations.
