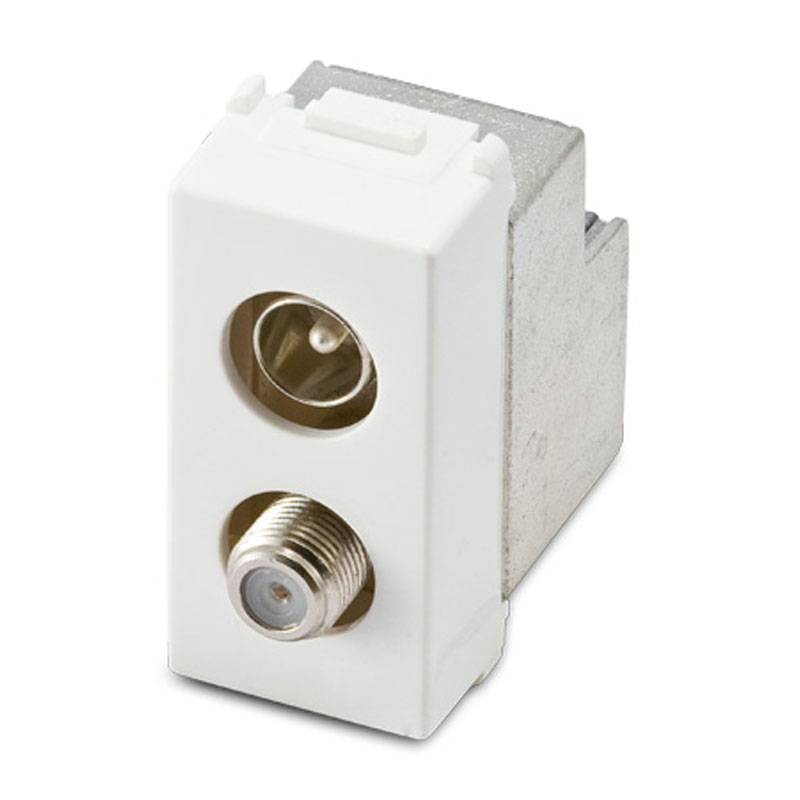

TV/SAT Master Coaxial Socket IEC Male Female 1M White 21277-7
MST 21277-7
8015919212781
TV/SAT Master coaxial jack with IEC male and F female connectors, ideal for terrestrial and satellite TV systems, with the following features:
-
Receptacle: TV + SAT demixing pass-through
-
Connectors: IEC male (TV) + F female (SAT)
-
Pass-through attenuation: 7 dB
-
Compatible with signals: 5-2400 MHz (wideband)
-
Module: 1 place
-
Color: White
-
Compatible series: Mix
€18.71
Items Available: 79
: 72
Master socket designed for terrestrial and satellite TV installations
Professional solution for separately distributing terrestrial (Terr.) and SAT TV signals in centralized installations. Thanks to the integrated demixing, it enables a clear separation of signals and ensures high quality and reliability over the entire 5÷2400 MHz band.
Performance and functionality
Equipped with 7 dB pass-through attenuation, this coaxial pass-through socket is ideal for series connections within complex installations. It allows DC current to pass through on the SAT branch, useful for feeding LNBs or multiswitches.
Recommended uses
-
Centralized installations for TV and satellite
-
Condominium and residential installations
-
Systems with feed-through distribution and DC transit
-
Compatible with multiswitches, SAT decoders, amplifiers
Technical Specifications TV/SAT Master Feed-Through Socket
| Socket Type | Feed-through |
|---|---|
| TV Connector (Terr.) | IEC male Ø 9.5 mm |
| SAT connector | F female |
| TV/SAT pass-through attenuation | 3 dB (Terr.) / 4 dB (SAT) |
| Branch attenuation | 5 dB (Terr.) / 6÷7 dB (SAT) |
| Reverse attenuation | ≥ 35 dB |
| Direct current transit | SAT branch |
| Bandwidth | 5 - 2400 MHz |
| Body material | Die-cast (high shielding) |
| Format | 1 module |
| Color | MIX white |
