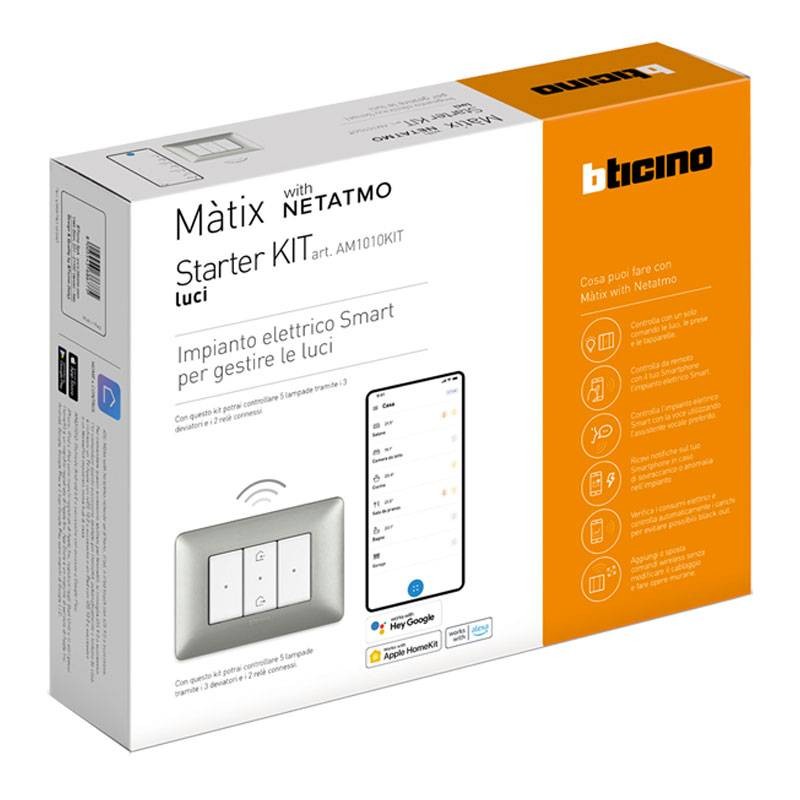

Starter Kit Lights Bticino Matix AM1010KIT
BTI AM1010KIT
8005543686775

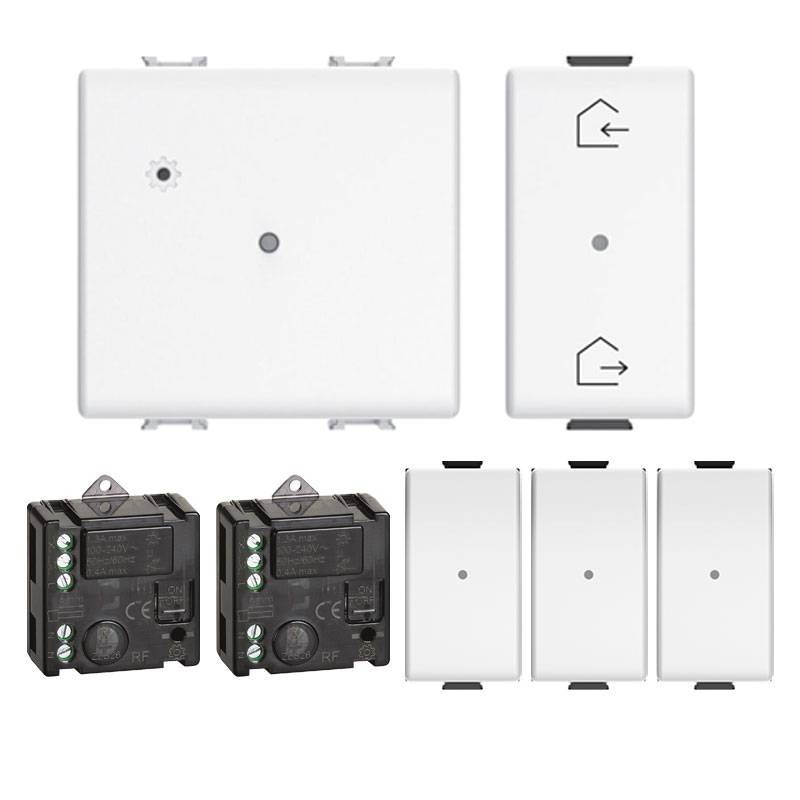

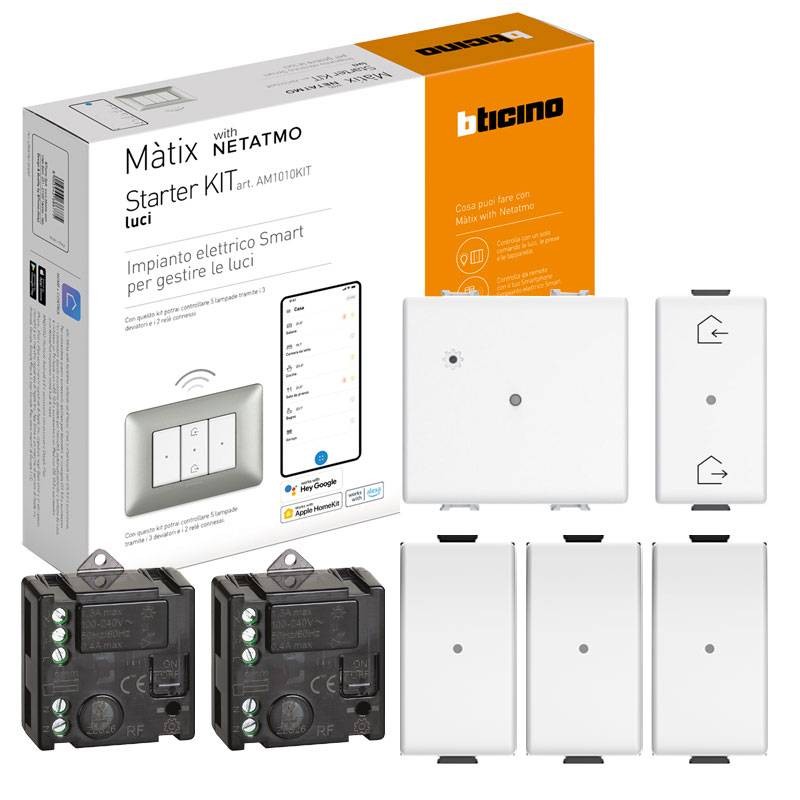

Starter Kit lights Bticino Matix composed of:
- 1 Piece article AM4510C gateway (with new flush-mounted radio in/out control one module)
- 3 Piece article AM4003C connected diverters
- 2 Pieces article 3584C connected lights relay
With the kit you save compared to individually purchased items
€305.00
Items Available: 8
: 1
Frequently bought together
Component Specifications:
Gateway + Entra&Esci Bticino Matix AM4510C
Gateway + Entra&Esci Bticino Matix includes:
- 1 Gateway to create a connected home installation. Can be used to control lights, blinds and electrical equipment connected to connected outlets
- 1 Entra&Esci wireless master scenario control AM4570CWI required for the pairing procedure of all connected devices.
Compatible media. LN4702 - LN4703 and LN4703C - LN4704 and LN4704C - LN4707 and LN4707C.
Gateway to create a connected home installation. Can be used to control lights, blinds, and electrical equipment connected to connected outlets: - using the smartphone and Home + Control app; - using voice assistants; - from the general control at the entrance to the house.
Supplied with the AM4570CWI wireless Enter&Exit master scenario control required for the pairing procedure of all connected devices.
- 110-230Vac power supply
- Gateway 2 modules
- Entra&Esci module 1 module
Compatible commands:
- AM4003C Connected Diverter
- AM4027C Connected Roller Shutter Control
- Wireless Light Control AM4003CWI
- AM4027CWI Wireless Roller Shutter Control
- AM4411C Connected Dimmer Switch
- In&Out Scenario Command AM4570CWI
- AM4531C Connected Socket Module
Bticino Matix 1 Module AM4003C Connected Diverter Switch:
Bticino Matix Connected Diverter allows you to control lights locally or remotely.
It must be combined with the Bticino Matix AM4510C Gateway + Enter&Exit for operation.
Please note: connection to neutral is required.
Compatible media. LN4702 - LN4703 and LN4703C - LN4704 and LN4704C - LN4707 and LN4707C.
Features:
- Installs like a traditional diverter and is compatible with all loads with a maximum power rating of 250W
- Features a blue LED, configurable from the HOME + CONTROL APP, for location and load status features
- Can be associated with one or more wireless controls
- 1 Module
- Power supply 110-230Vac
- Power (VA) 125VA
- Power (W) 250W.
Bticino Living Now 3584C connected lights relay:
Bticino Living Now Connected Lights Relay. Allows you to control lights locally or remotely. It is compatible with all loads with a maximum power of 300 W. It can be connected to one or more traditional buttons or associated with one or more wireless controls. It installs like a traditional relay in the flush-mounted box (behind the button) or in junction boxes. Caution: connection to neutral is required. Power supply 100-240 Vac.
Features:
- Bticino series
- Frequency: 50/60 Hz
- Penetration by solids/liquids: IP 21 D
- Impact proof IK04
- Material: Polycarbonate
- Clamp type: screw type
- Clamp capacity: 1 x 2.5mm2 - 2 x 1.5mm2
- Strip length: 6 mm
- 3mm flat screwdriver
There are no reviews
Data sheet
- KIT: Kit Starter
