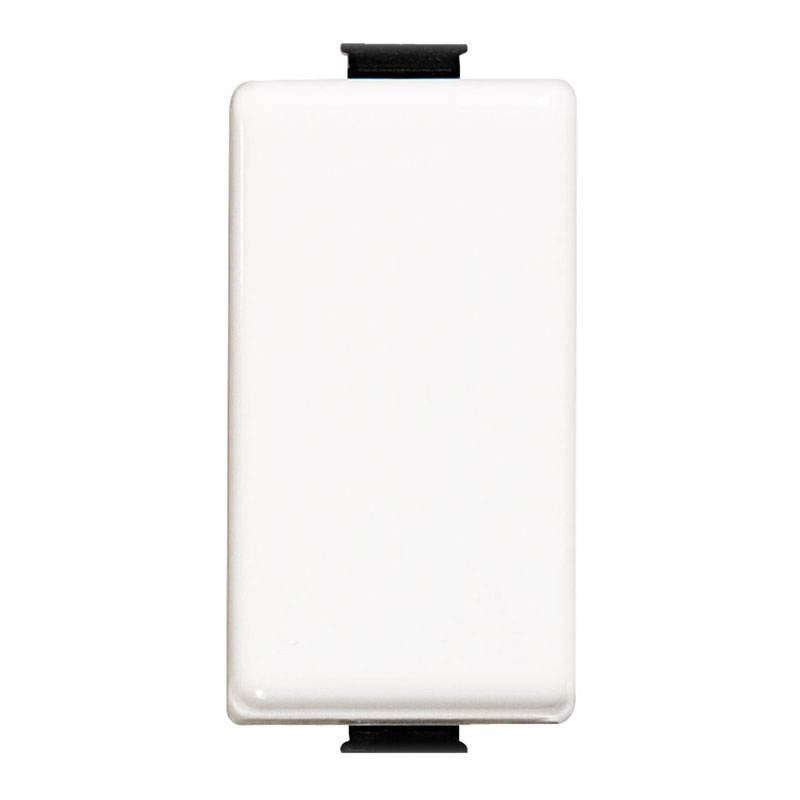

Bticino Matix antibacterial multiway switch 1P 16A 250V AC White AM5003AB
BTI AM5003AB
8005543470626
Bticino Matix antibacterial multiway switch, illuminable and compact for civil installations, with the following features:
-
Rated current: 16A
-
Rated voltage: 250V AC
-
Number of poles: 1
-
Modules: 1
-
Material: antibacterial thermoplastic
-
Color: White
-
Led Compatibility: LN4742V230 (230V) LN4742V12 (12V)
-
Original key cover: Opaque (to be replaced by luminous function)
-
Usage: Two-point light control
€5.20
Items Available: 6
: 3
Frequently bought together
Antibacterial diverter functional solution for lighting systems
The Bticino Matix multiway switch is designed for the operation of lighting points from two distinct positions (e.g., entrance and hallway end, staircase, bedroom). Made of antibacterial thermoplastic, it reduces the risk of contact contamination, making it suitable for:
-
Home environments
-
Schools, offices and public spaces
-
Health care facilities and environments with high hygiene standards
Prepared for LED lighting
The illuminable function can be activated by installing one of the compatible LEDs:
-
LN4742V230 (for 230V AC systems)
-
LN4742V12 (for 12V AC/DC systems)
Conversion to an illuminable multiway switch is completed by replacing the opaque switch cover with a transparent model, to make the Led visible and facilitate locating the control even in the dark (indicator or guide light function).
Compact, modular and easy to install
The multiway switch is in 1-module format, which can be perfectly integrated into BTicino Matix series holders and plates. Installation is intuitive and guarantees a solid and durable electrical connection, both in new installations and replacements.
Technical Specifications Bticino Matix multiway switch
Electrical Specifications
| Rated voltage | 250V AC |
| Rated current | 16A |
| Number of poles | 1 |
General Characteristics
| Series | Matix |
| Modules | 1 |
| Color | White |
| Material | Antibacterial thermoplastic |
| Installation | On Matix frames and plates |
Compatibility and Additional Functions
| Illuminable function | Yes, with optional LEDs and transparent key cover (not included) |
| LED Compatibility. | LN4742V230 (230V), LN4742V12 (12V) |
| Original key cover | Opaque (replaceable for luminous function) |
| Use | Two-point light control |
