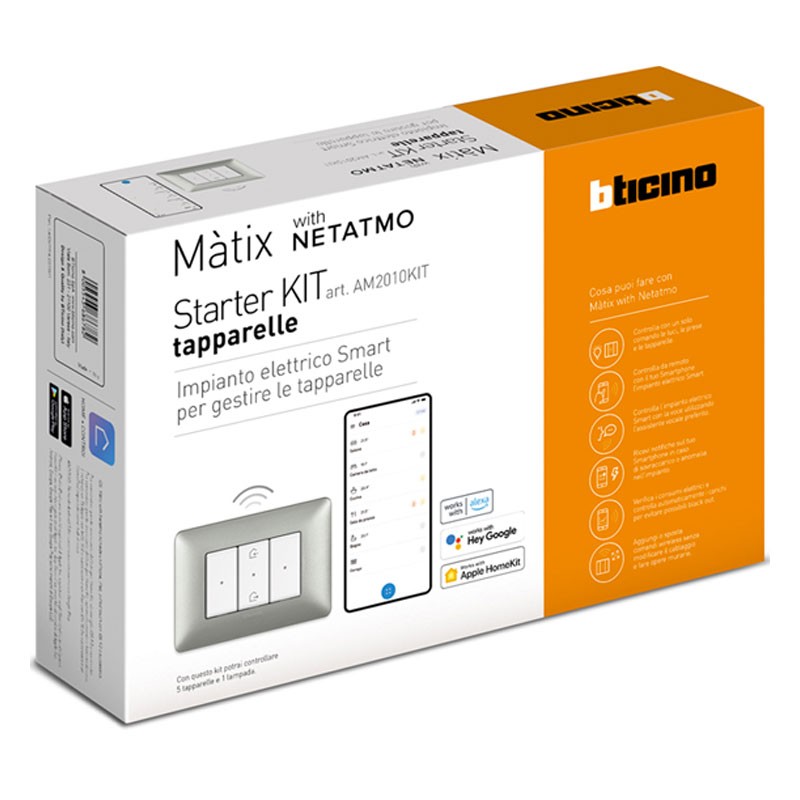

Bticino Matix Connected Starter Kit for Roller Shutters AM2010KIT
BTI AM2010KIT
8005543686782

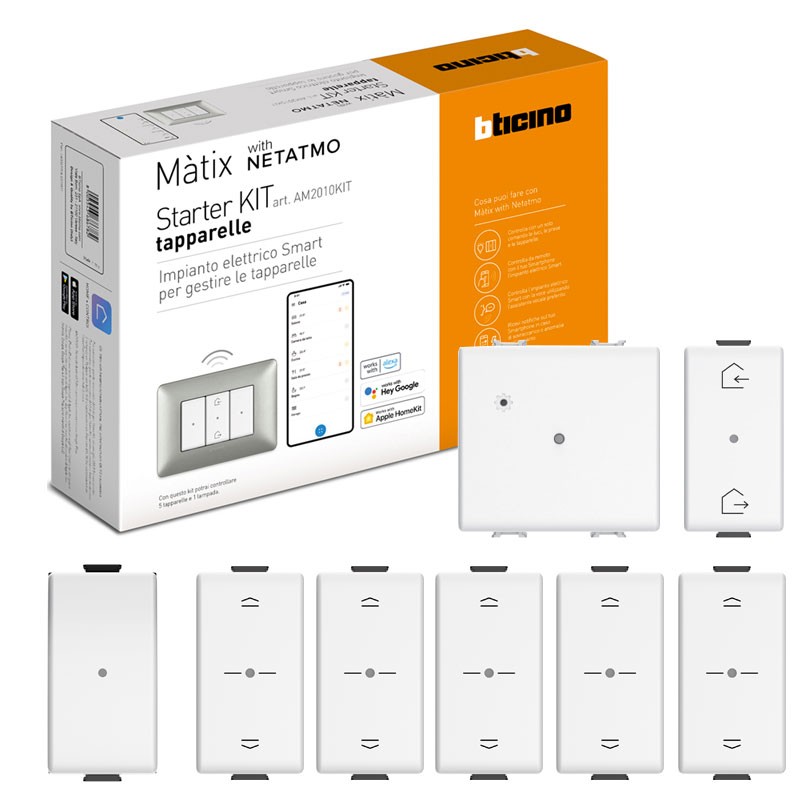

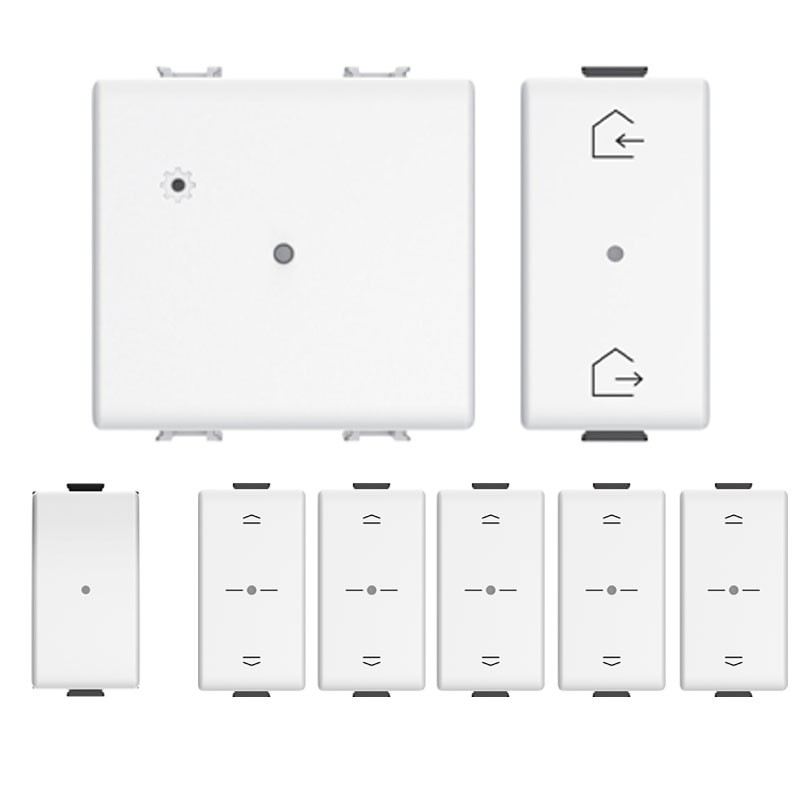

Connected Starter Kit for Bticino Matix Series roller shutters composed of:
- 1 Piece article AM4510C gateway (with radio in/out control recessed one module)
- 5 Piece article AM4027C connected roller shutter controls
- 1 Piece article AM4003C connected diverter
With the kit you save compared to individually purchased items
€386.13
Items Available: 14
: 3
Frequently bought together
Component Specifications:
Gateway + Entra&Esci Bticino Matix AM4510C
Gateway + Entra&Esci Bticino Matix includes:
- 1 Gateway to create a connected home installation. Can be used to control lights, blinds and electrical equipment connected to connected outlets
- 1 Entra&Esci wireless master scenario control AM4570CWI required for the pairing procedure of all connected devices.
Compatible frames: 500SM2A - 503SA - 504SA - 506LSA - 506SA - 503S/2A - 500S/23A - 518SA.
Gateway to create a connected home installation. Can be used to control lights, blinds, and electrical equipment connected to connected outlets: - using the smartphone and Home + Control app; - using voice assistants; - from the general control at the entrance to the house.
Supplied with the AM4570CWI wireless Enter&Exit master scenario control required for the pairing procedure of all connected devices.
- 110-230Vac power supply
- Gateway 2 modules
- Entra&Esci 1 Module.
Compatible commands:
- AM4003C Connected Diverter
- AM4027C Connected Roller Shutter Control
- Wireless Light Control AM4003CWI
- Wireless Roller Shutter Control AM4027CWI
- AM4411C Connected Dimmer Switch
- In&Out Scenario Command AM4570CWI
- AM4531C Connected Socket Module
Bticino Matix 1 Module AM4027C Connected Roller Shutter Control:
Bticino Matix 1 Connected Shutter Command Module for controlling a shutter locally or remotely (up, down and position management commands).
It must be combined with the Gateway + Enter&Exit Bticino Matix AM4510C for operation.
Compatible frames: 500SM2A - 503SA - 504SA - 506LSA - 506SA - 503S/2A - 500S/23A - 518SA.
Features:
- Compatible with all standard roller shutter motors (with mechanical or electronic ne stroke and max power 500 VA) controlled by a wired roller shutter switch (switching the same power as the motor)
- Not compatible with radio-controlled or pulse-controlled rolling shutter motors
- Can be associated with one or more wireless controls
- 110-230Vac power supply
- 1 module
- Power (VA) 500VA
Diverter Connected Bticino Matix 1 Module AM4003C:
Bticino Matix Connected Diverter allows you to control lights locally or remotely.
It must be combined with the Bticino Matix AM4510C Gateway + Enter&Exit for operation.
Please note: connection to neutral is required.
Compatible frames: 500SM2A - 503SA - 504SA - 506LSA - 506SA - 503S/2A - 500S/23A - 518SA.
Features:
- Installs like a traditional diverter and is compatible with all loads with a maximum power rating of 250W
- Features a blue LED, configurable from the HOME + CONTROL APP, for location and load status features
- Can be associated with one or more wireless controls
- 1 Module
- Power supply 110-230Vac
- Power (VA) 125VA
- Power (W) 250W.
