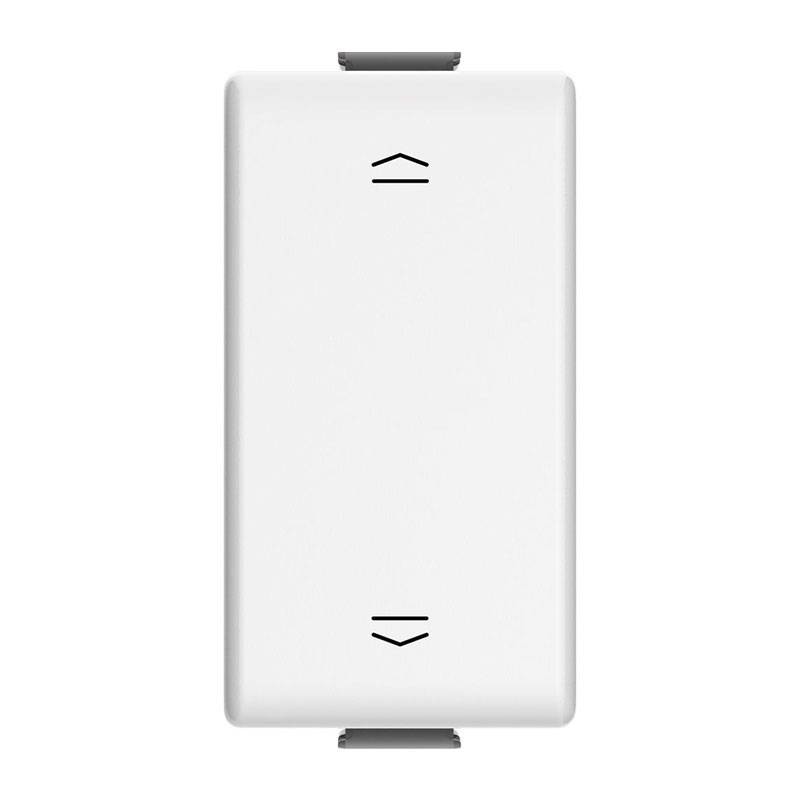

Bticino Matix Anti-Bacterial Interlocked Double Button 10A 250V White AM5037ABN
BTI AM5037ABN
8005543698709
Bticino Matix double antibacterial interlocked push button, safe control for motorized roller shutters, with the following features:
-
Rated current: 10A
-
Rated voltage: 250V AC
-
Number of poles: 2 (1P + 1P)
-
Interlock: yes, mechanical
-
Modules: 1
-
Material: Antibacterial thermoplastic
-
Color: White
-
Applications: Controlling roller shutters, blinds, automations
-
Mounting: On Matix frames
€24.92
Out of stock
Incoming
Frequently bought together
Double interlocked push button safe control for electric motors
The BTicino Matix 1P (NO) + 1P (NO) double interlocked pushbutton is designed for direct control of roller shutters, motorized blinds, Venetian blinds and similar devices. Thanks to the interlocking mechanism, it prevents simultaneous activation of the two contacts, preventing short circuits or damage to the motor, an essential function in all two-way (up/down) systems.
Guaranteed hygiene with antibacterial finish
The button is made of antibacterial thermoplastic, ideal for installations in environments subject to frequent contact, where hygiene is a priority, such as:
-
Schools and offices
-
Home environments
-
Public or sanitary spaces
The glossy white surface perfectly matches the understated, minimalist design of the Matix series, offering a functional and visually coordinated solution.
Compact and versatile installation
Thanks to its 1-module format, this dual button is easily installed in standard Matix holders, even in limited spaces. Wiring is simple and allows direct connection to shutter relays or control units.
Bticino Matix Double Button Technical Specifications
Electrical Specifications
| Function | 1P (NO) + 1P (NO) |
| Rated voltage | 250V AC |
| Rated current | 10A |
| Number of poles | 2 (1P + 1P) |
General Characteristics
| Series | Matix |
| Modules | 1 |
| Interlock | Yes, mechanical |
| Color | White |
| Material | Antibacterial thermoplastic |
| Mounting Type | On standard Matix frames |
Applications and Usage
| Recommended use | Control for rolling shutters, motorized blinds and automation systems |
| Interlocked function | Prevents simultaneous pressing of the two keys |
There are no reviews
Data sheet
- Main Commands: Rolling shutters
