Urmet Simon Nea Radio Shutter Module MVR500EBRP 500W 5454812
UTD 5454812
3760054548121

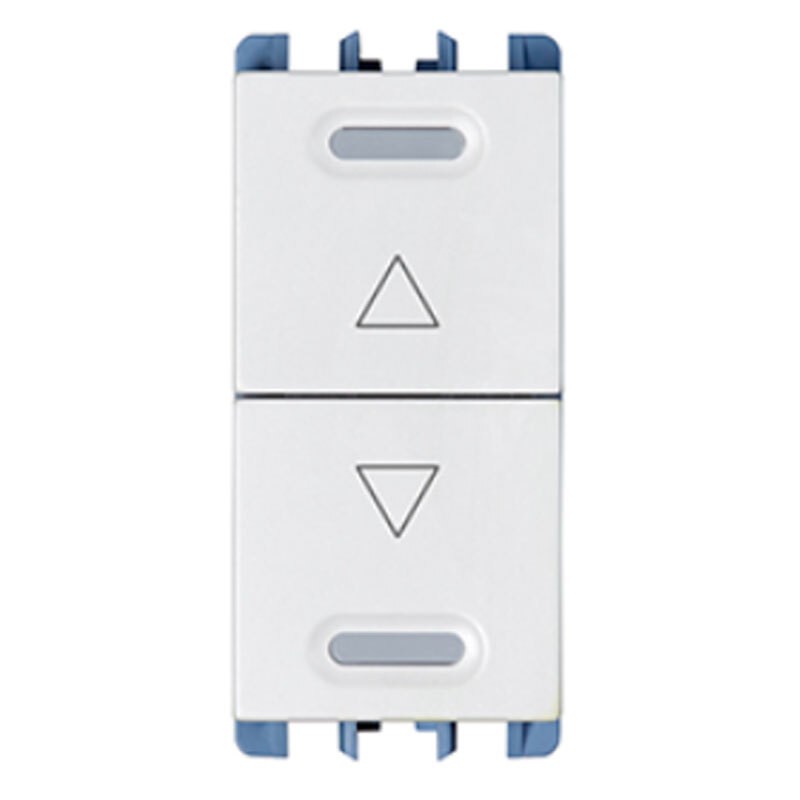

Electronic module for rolling shutter system Radio Power Urmet MVR500EBRP on double button for Simon Nea series 500W.
€38.95
Items Available: 7
: 3
Frequently bought together
Thanks to the integration between Simon Urmet and Yokis technologies, the new range of Smart inserts of the NEA line was born, through which it is possible to enjoy greater functionality, preserving the aesthetic harmony with the adopted civil series.
The MVR500EBRP radio module is realized on fruit with double non-interlocked button on civil series NEA for the control of motorized roller shutters, with two buttons.
The load can be controlled locally or, if the Yokis Hub is present, also remotely through the YnOApp.
It provides the following functions
- Intermediate position: possibility of memorizing a preferred position, intermediate between the open and closed position
- Daily scheduling: allows you to open and close the shutter at two set times.
Equipped with a blue LED for detection in the dark and a red LED for signaling during configuration.
Supplied with white switch cover mounted and switch cover in anthracite finish inside the package.
Features:
- Mains voltage: 230V~ (+10% - 15%) - 50Hz
- Motor power 3 wires, 230V~, 2A max. 500VA
- Frequency range: 2,4 Ghz
- Maximum Radio Transmission Power: 10mW
- Consumption < 1VA - < 0.3W
- Temp. Environment: -20°C + 50°C
- Relative humidity: from 0 to 70%
- Dimensions: 1 module
There are no reviews
Data sheet
- Model: 1 Module
- Smart System: Roller Shutter Controls
